Remote Transmitter Programming

The keyless entry system is equipped with a special code learning feature that allows you to program new transmitter codes into the system or to delete old ones. Up to four transmitters can be programmed. It is recommended that a dealer program transmitters. The system can learn up to four unique transmitter codes. The four transmitter codes may be the same or different.

To enter the programming mode

1. Disarm the security system (if equipped). Sit on the driver's seat
2. Open driver's door. Sit in driver's seat.
3. Close driver's door and all other doors, rear gate, and trunk lid.

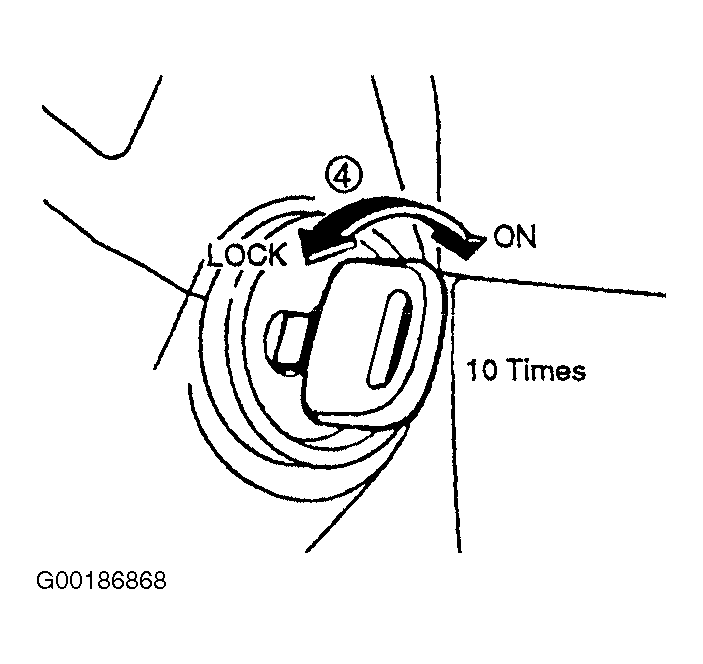

4. Place the ignition key into ignition switch and cycle the switch from LOCK to ON ten times within 15 seconds. Be sure to stop at the LOCK position. See Fig 1 . The horn will sound once to indicate that you are in transmitter programming mode.
   NOTE: The horn chirps once to indicate that the system has entered the programming mode. Do not start the engine at this time.

To program transmitters

1. Open driver's door.
2. Close driver's door.
3. Press and release any transmitter button that you wish to program into the system. Horn will chirp twice to indicate that the transmitter has been programmed.

To exit programming mode

1. After all transmitters are programmed, remove ignition key from the ignition switch. The horn will sound three times to indicate that the system has exited the programming mode.
2. Make sure the keyless entry system properly operates by testing each transmitter.

Deleting old transmitter codes

1. The keyless entry system's control unit has four memory locations to store transmitter codes, giving it the ability to operate with up to four transmitters. If a transmitter is lost, the lost transmitter's code remains in memory. For security reasons, delete this code from memory.
2. To delete old transmitter codes, program all four transmitter codes into the system. If there's only one transmitter, program it four times. If there are two current transmitters, program each twice. If there are three current transmitters, program two of the transmitters once and the third one, twice. This process will leave only current transmitter codes in the system's memory.
