2001 Subaru Outback Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Select Lever: Installation

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Mount the select lever onto the vehicle body.
  2. Tighten the four bolts to install the select lever to the vehicle body, then connect the connector.

    Tightening torque:  13 N.m (1.3 kgf-m, 9.4 ft-lb)

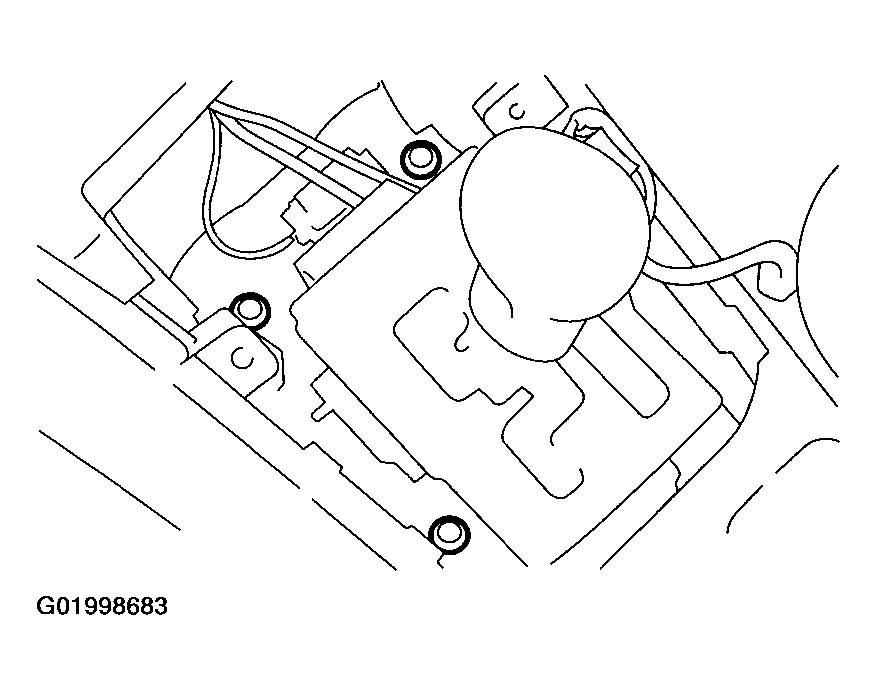

    Fig 1: Tightening Bolts To Install Select Lever To Vehicle Body
    G01998683Courtesy of SUBARU OF AMERICA, INC.
  3. Install the console box. See CONSOLE BOX .
  4. Set the location of select lever at "N" position.
  5. Lift-up the vehicle.
  6. Set the location of range select lever to "N" position.
  7. Insert the thread portion of the other inner cable and into the connector hole of the select lever, and fix the other outer cable end to the bracket.
  8. Adjust the select cable position. See ADJUSTMENT  .
  9. Install the heat shield cover. (If equipped)
  10. Install the rear exhaust pipe and muffler.
  11. After completion of fitting, make sure that the select lever operates smoothly all across the operating range.
  12. Inspect the following items. If the following inspection reveals problems, adjust the select cable and inhibitor switch. See ADJUSTMENT  and INHIBITOR SWITCH .
    1. The engine starts operating when select lever is in position "P", but not in other positions.
    2. The back-up light is lit when the select lever is in position "R", but not in other positions.
    3. Select lever and indicator positions are matched.
  13. Check the shift-lock system.
    1. Ensure the ignition switch rotates from "ACC" to "LOCK" when the select lever is set at "P". Also check that ignition key can be removed only from the "LOCK" position.
    2. Ensure the select lever moves from "P" to any other position when the brake pedal is depressed with ignition key set at "ON" or "START".
