Select Cable: Adjustment
- Set the vehicle on the lift.
- Disconnect the ground terminal from battery.
- Set the lever to "N" position.
- Lift-up the vehicle.
- Remove the rear exhaust pipe and muffler.
- Remove the heat shield cover. (If equipped)

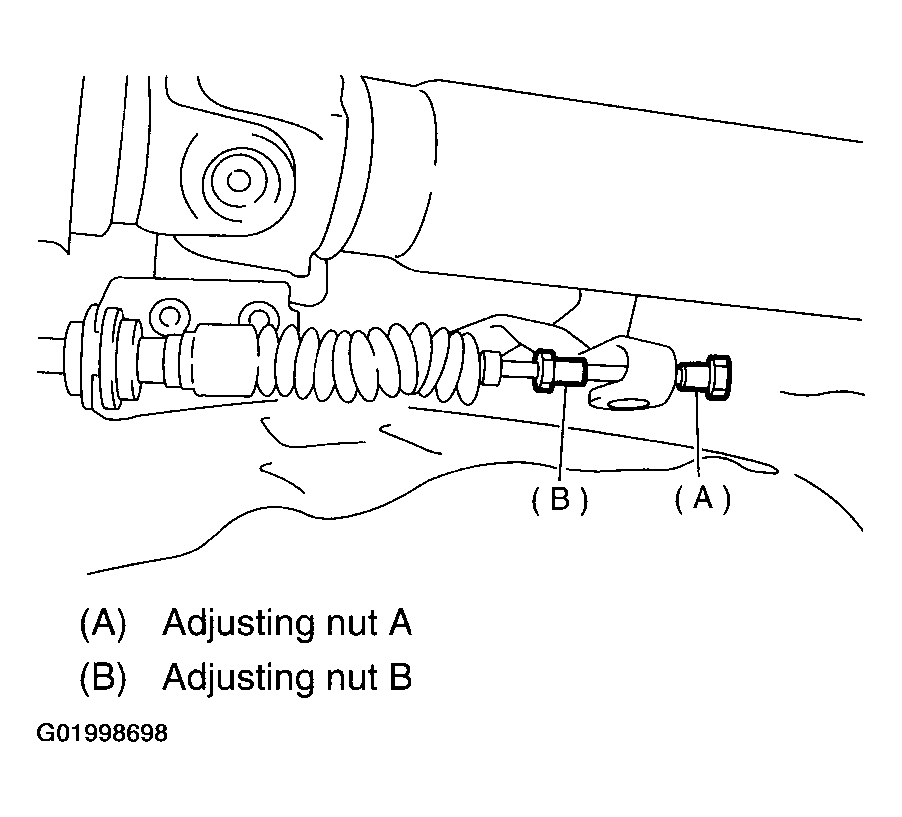

- Loosen the adjusting nut on each side.

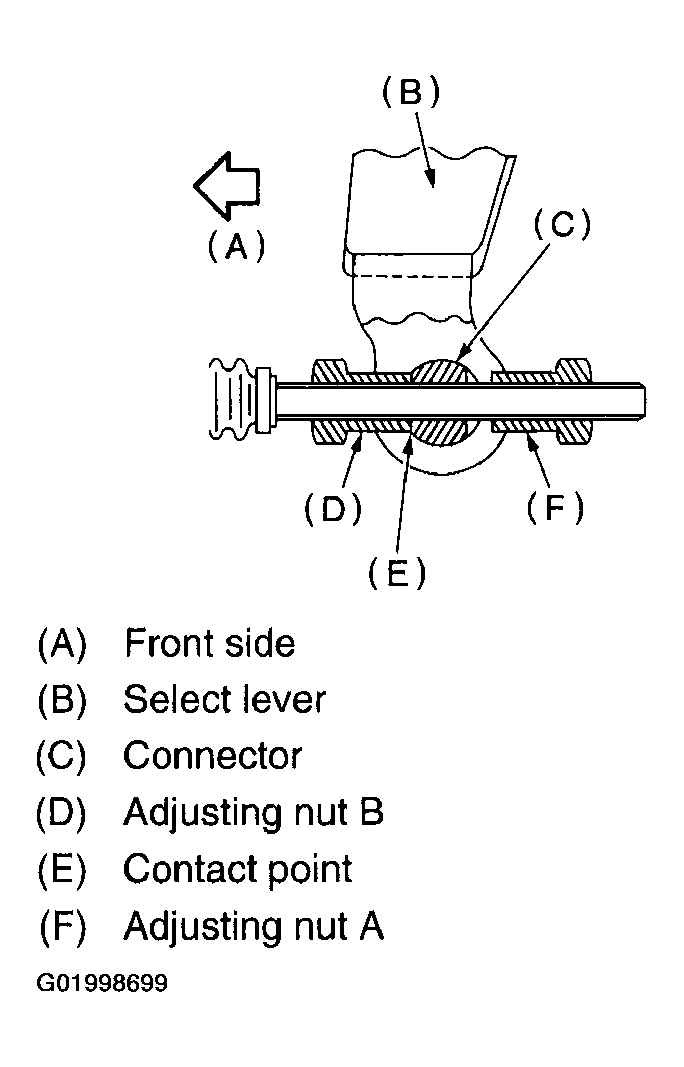

- Turn the adjusting nut B until it lightly touches the connector.

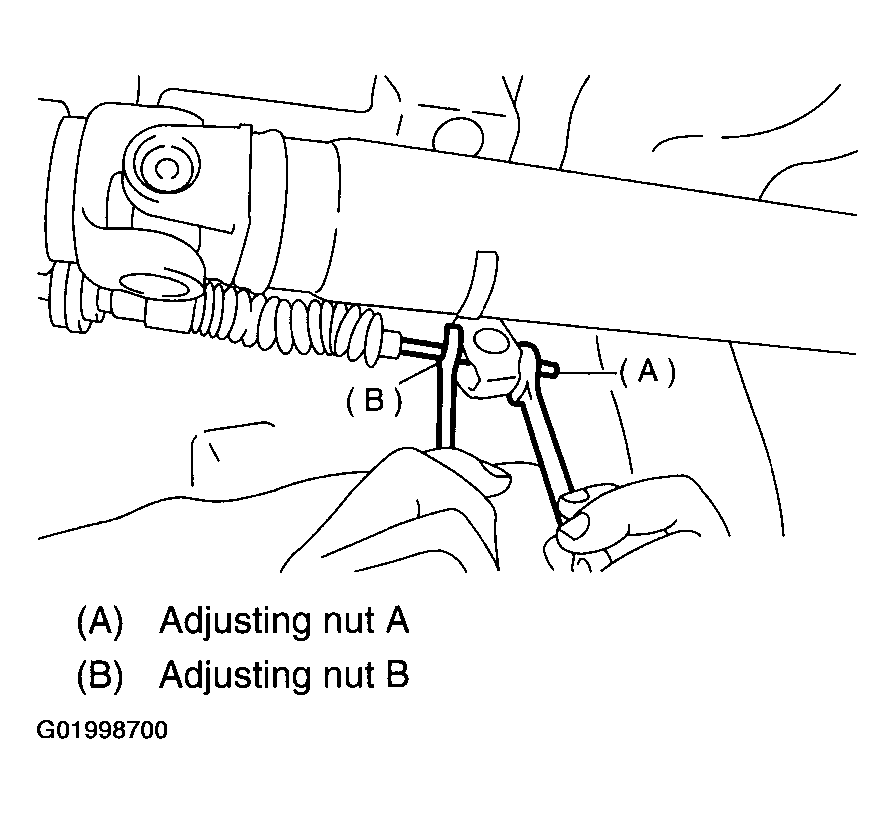

- While preventing the adjusting nut B from moving with a wrench, tighten adjusting nut A.
Tightening torque: 7.5 N.m (0.76 kgf-m, 5.5 ft-lb)
- After completion of fitting, make sure that the select lever operates smoothly all across the operating range.
- Install in the reverse order of removal.
