Remove the transmission assembly from the vehicle. < Ref. to REMOVAL , Automatic Transmission Assembly.>
Extract the torque converter clutch assembly.
< Ref. to REMOVAL , Torque Converter Clutch Assembly.>
Remove the input shaft.
Lift-up lever behind the transmission harness connector and disconnect it from stay.
Disconnect the air breather hoses. < Ref. to REMOVAL , Air Breather Hose.>
Disconnect inhibitor switch connector from stay.
Wrap vinyl tape around the nipple attached to the air breather hose.
Remove pitching stopper bracket.
Remove the inhibitor switch.

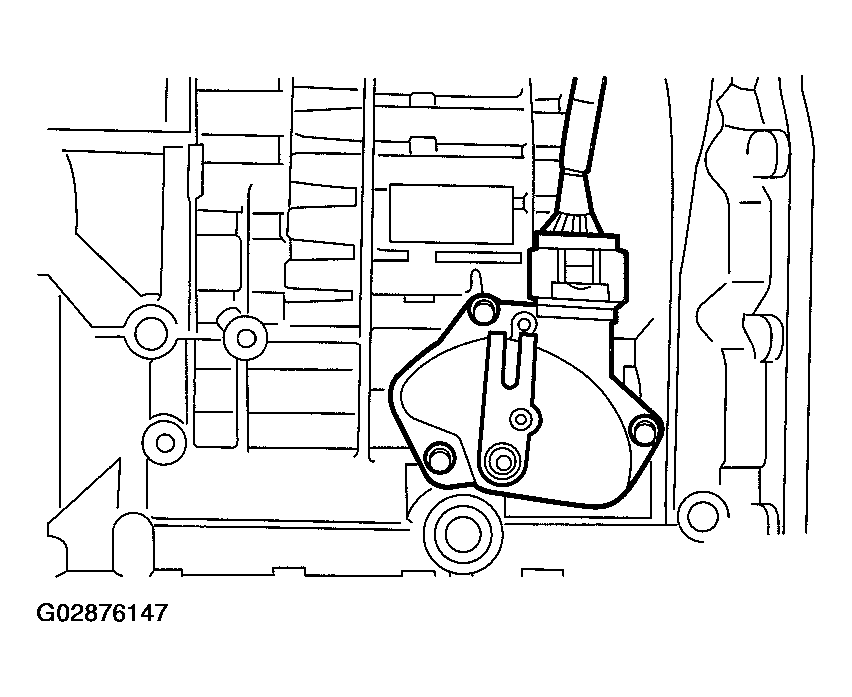

Fig 1: Removing Inhibitor Switch
Courtesy of SUBARU OF AMERICA, INC.
Remove control valve body assembly. < Ref. to REMOVAL , Control Valve Body.>
Pull off the straight pin of manual plate.

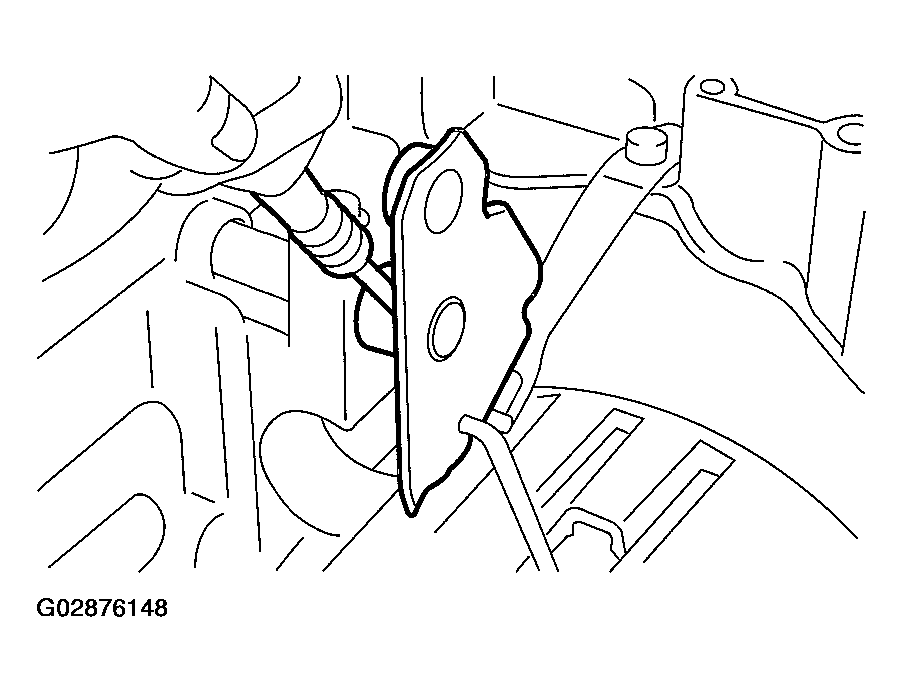

Fig 2: Pulling Off Straight Pin Of Manual Plate
Courtesy of SUBARU OF AMERICA, INC.
Remove bolts securing select lever, then remove select lever, manual plate and parking rod.
NOTE: Be careful not to damage the lips of the press-fitted oil seal in the case.
