2001 Subaru Outback Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Control Valve Body: Removal
WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
- Lift-up the vehicle.
- Clean the transmission exterior.

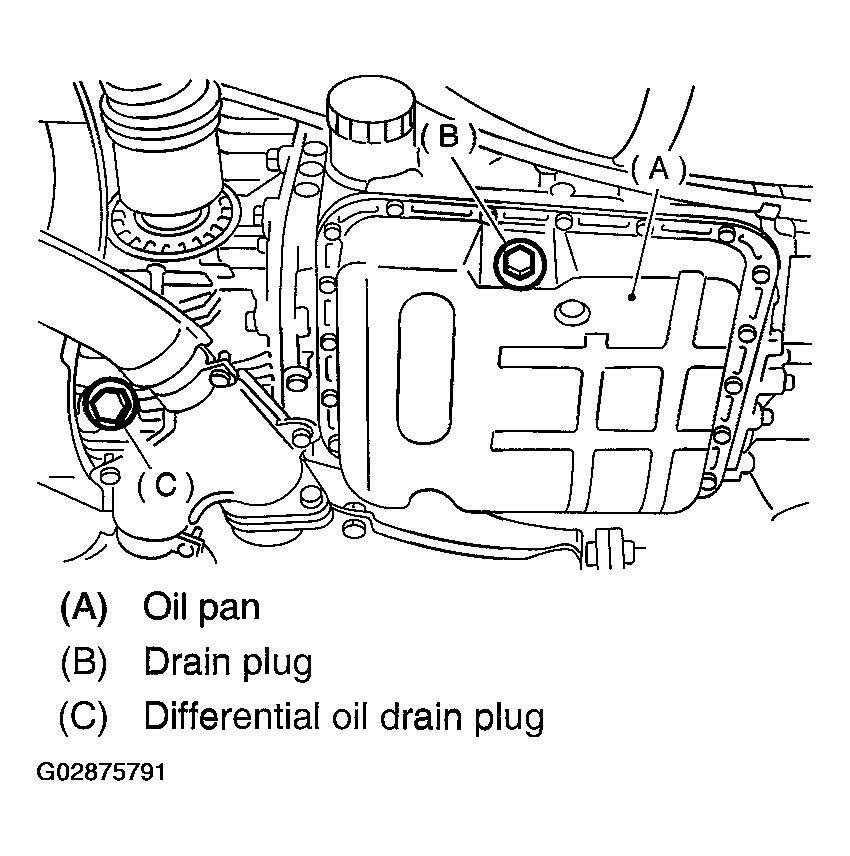

- Drain the ATF completely.NOTE:
- Tighten the ATF drain plug after draining the ATF.
- Replace the gasket with a new one.
- Tightening torque: 25 N.m (2.5 kgf-m, 18.1 ft-lb)
- Remove the oil pan.
- Remove and clean the magnet.
- Remove the old gasket on the oil pan and transmission case completely.

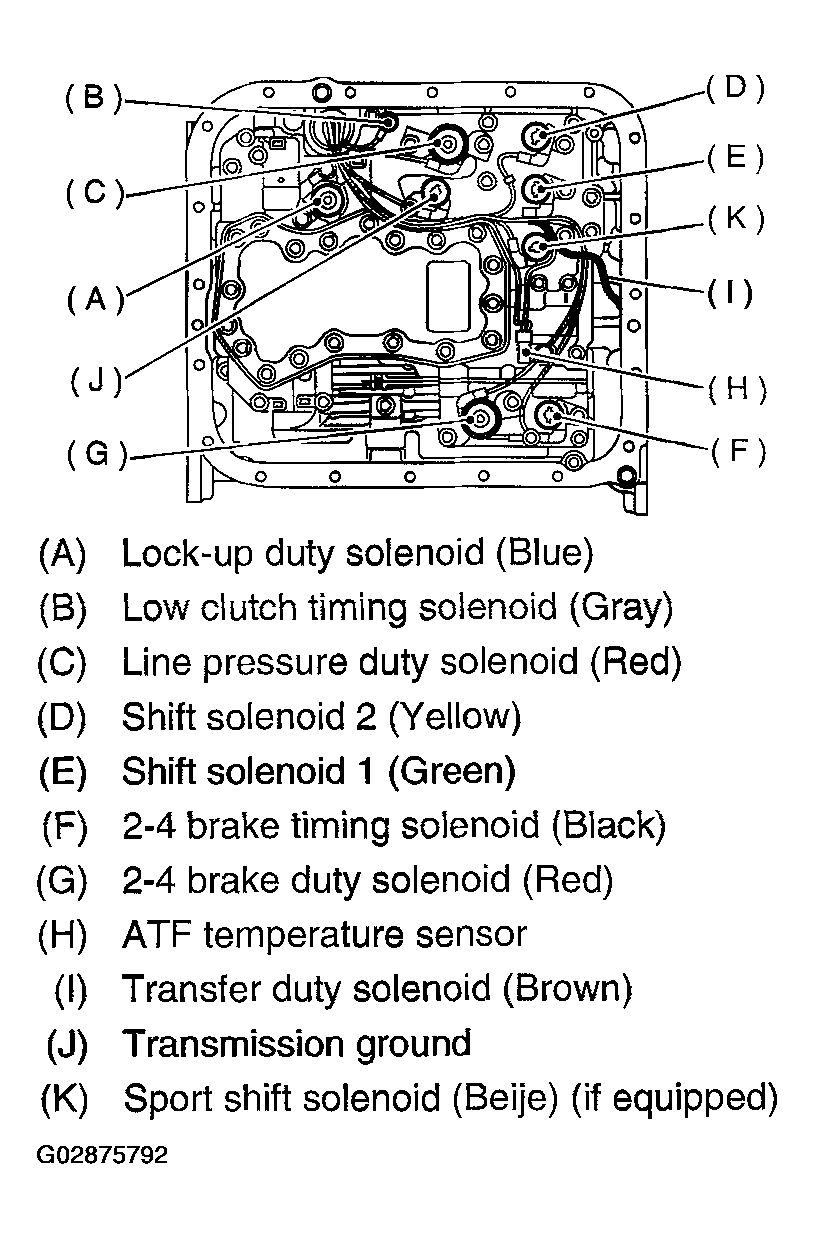

- Disconnect the duty solenoid connector and ATF temperature sensor. Remove the connector from clip and disconnect the connector.
- Remove the control valve.NOTE: When removing the control valve body, be careful not to interfere with transfer duty solenoid wiring.
