Confirmation Driving Pattern
HINT:
Performing this confirmation pattern will activate the catalyst monitor. This is very useful for verifying the completion of a repair.
HINT:
- Connect a Techstream to the DLC3.
- Turn the ignition switch to ON.
- Turn the tester ON.
- Clear DTCs (if set) (See DTC CHECK / CLEAR ).
- Select the following menu items: Powertrain / Engine and ECT / Monitor.
- Check that Catalyst / Status2 is Incomplete.
- Start the engine and warm it up.

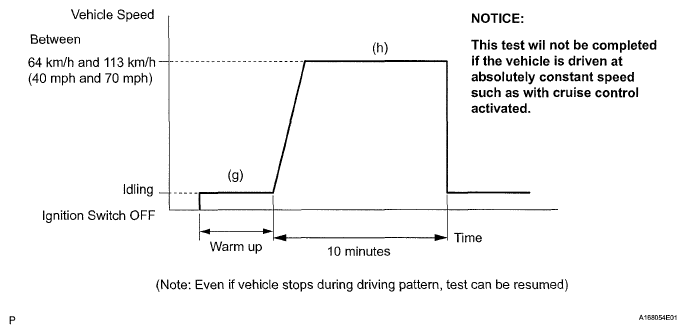

- Drive the vehicle at between 64 km/h and 113 km/h (40 mph and 70 mph) for at least 10 minutes.
- Those items will change to Complete as Catalyst monitor operates.
- Select the following menu items: Powertrain / Engine and ECT / Trouble Codes / Pending.
- Check if any DTCs (any pending DTCs) are set.
HINT:
If Catalyst does not change to Complete, and any pending DTCs fail to set, extend the driving time.
