Engine Electrical Component Views
2005 Saturn Relay AWDSECTION Engine Electrical Component Views

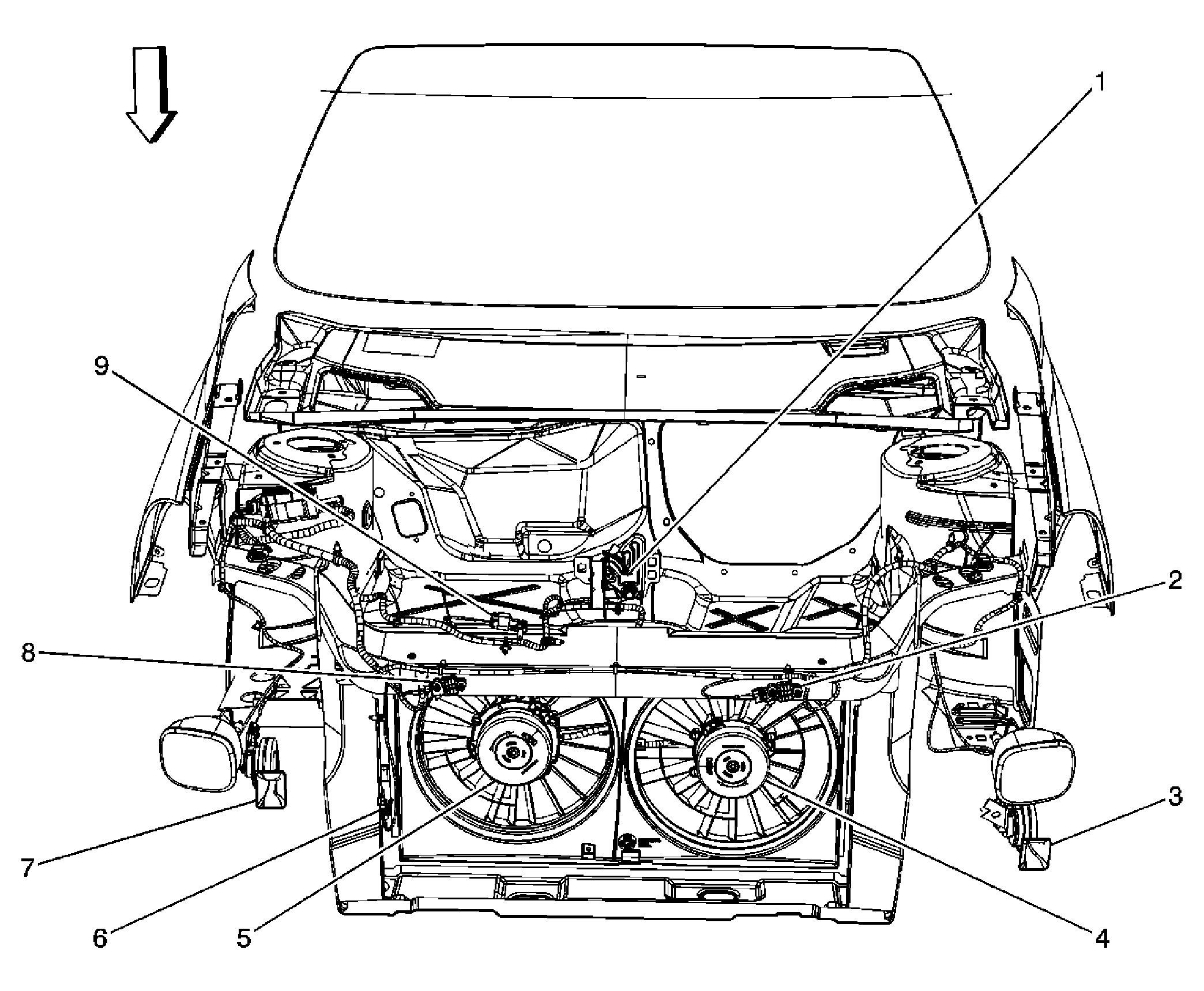

| Callout | Component Name |
|---|---|
| 1 | Hood Ajar Switch (AP3) |
| 2 | Inflatable Restraint Front End Sensor - Left |
| 3 | Horn - Left |
| 4 | Cooling Fan - Left |
| 5 | Cooling Fan - Right |
| 6 | Ambient Air Temperature Sensor (UH8 or UH9) |
| 7 | Horn - Right |
| 8 | Inflatable Restraint Front End Sensor - Right |
| 9 | Hood Ajar Switch Connector (AP3) |

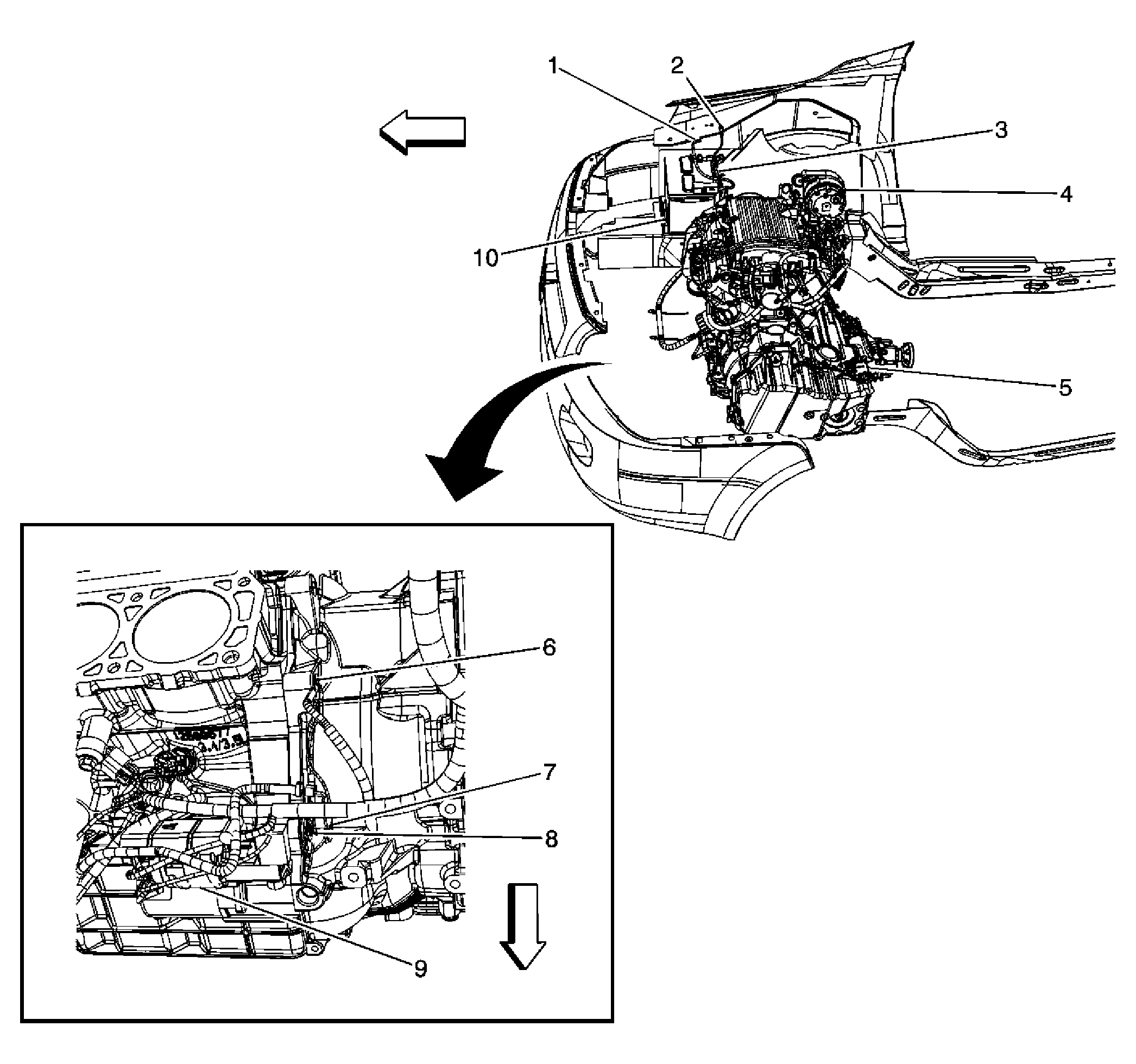

| Callout | Component Name |
|---|---|
| 1 | Fuse Block - Underhood (Battery Stud) |
| 2 | G102 |
| 3 | Battery Current Sensor |
| 4 | Generator |
| 5 | Automatic Transmission |
| 6 | G113 |
| 7 | G115 (Battery Cable) |
| 8 | G115 |
| 9 | Starter Motor |
| 10 | Battery |
| Callout | Component Name |
|---|---|
| 1 | Knock Sensor (KS) Bank 2 |
| 2 | Engine Oil Pressure (EOP) Switch |
| 3 | Starter Motor Solenoid |
| 4 | Starter Motor |
