2005 Saturn Relay AWDFACTORY OEM SERVICE PROCEDURE
Power Outlet Component Views

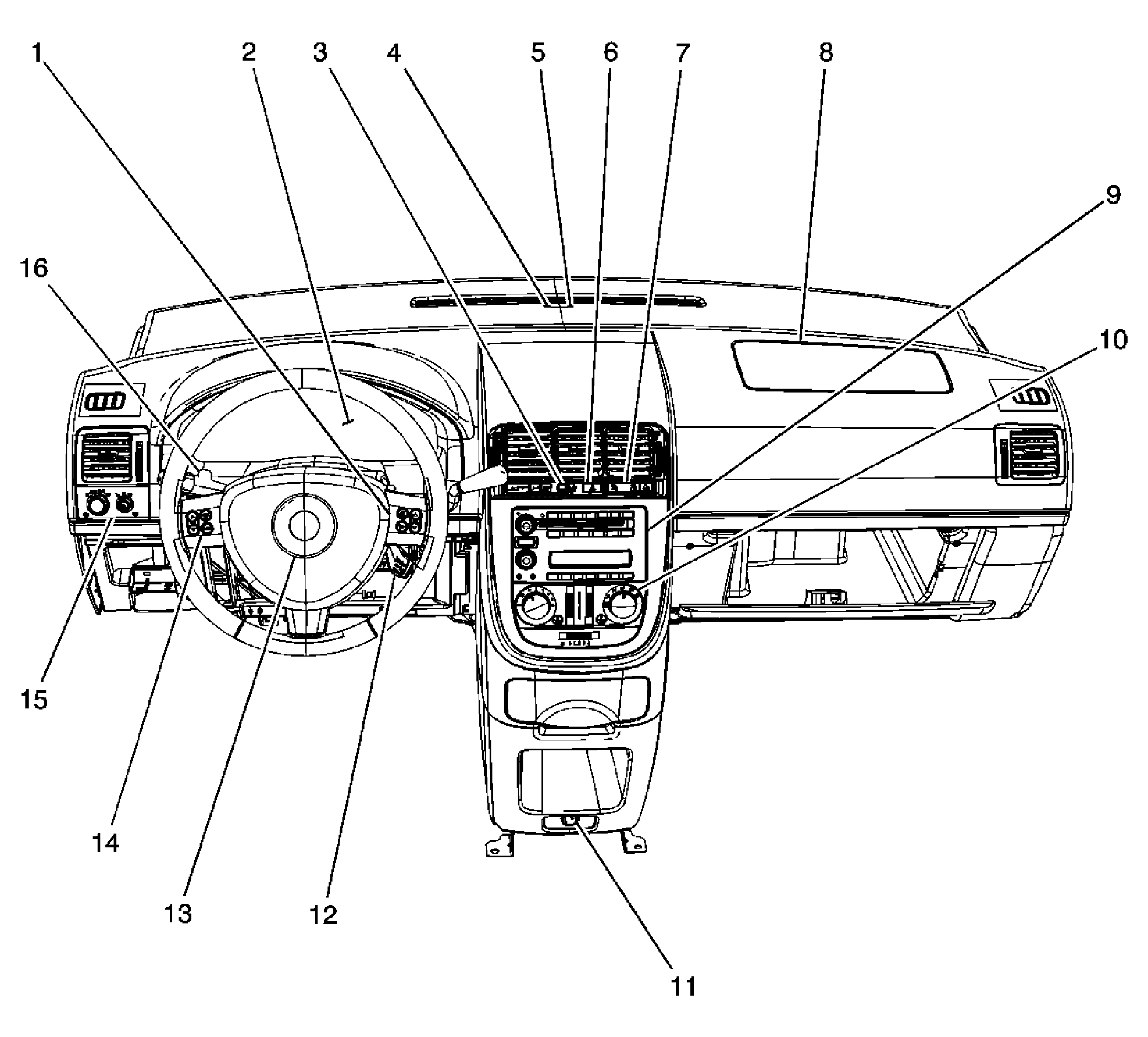

| Callout | Component Name |
|---|---|
| 1 | Steering Wheel Control Switch Assembly - Right (UK3) |
| 2 | Instrument Panel Cluster (IPC) |
| 3 | Multifunction Switch - I/P |
| 4 | Theft Light Emitted Diode (LED) (UA6) |
| 5 | Ambient Light Sensor |
| 6 | Hazard Switch |
| 7 | Inflatable Restraint PASSENGER AIR BAG ON/OFF Indicator |
| 8 | Inflatable Restraint I/P Module |
| 9 | Radio |
| 10 | HVAC Control Module |
| 11 | Cigar Lighter |
| 12 | Cruise Control Lever (K34) |
| 13 | Inflatable Restraint Steering Wheel Module |
| 14 | Steering Wheel Control Switch Assembly - Left (Uk3) |
| 15 | Headlamp Switch |
| 16 | Turn Signal/Multifunction Switch |

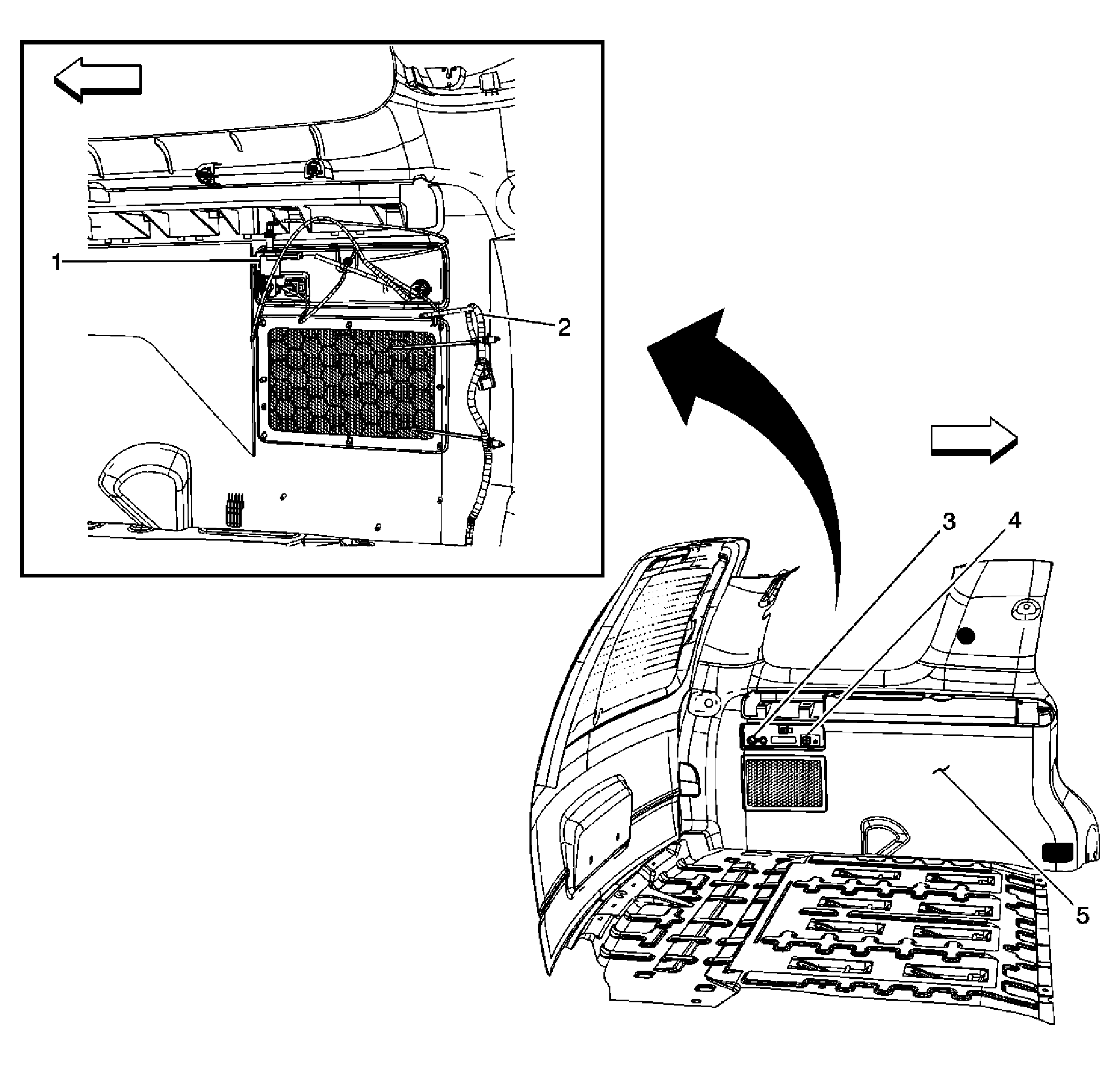

| Callout | Component Name |
|---|---|
| 1 | Automatic Level Control (ALC) Solenoid Valve (G67 w/o Z10) |
| 2 | ALC Harness (G67) |
| 3 | Auxiliary Power Outlet - Rear |
| 4 | Automatic Level Control (ALC) Inflator Air Switch (G67 w/o Z10) |
| 5 | Left Rear Cargo Trim Panel |
| Callout | Component Name |
|---|---|
| 1 | Speaker - Rear Tweeter - Right |
| 2 | Accessory AC/DC Power Control Module (KC7) |
| 3 | C420 Rear Parking Assist Display Jumper Harness to Body Harness(UD7) |
| 4 | Rear Quarter Window Actuator - Right (A20) |
| 5 | C402 and C400 Liftgate Harness to Body Harness |
| 6 | Rear Parking Assist (RPA) Display (UD7) |
| 7 | G400 |
| 8 | Auxiliary Power Outlet - 115VAC (KC7) |
| 9 | Sliding Door Jamb Switch - Right |
| 10 | Rear Object Sensor Control Module (UD7) |
| 11 | Rear Parking Assist (RPA) Diagnostic Connector (UD7) |
