2005 Saturn Relay AWDFACTORY OEM SERVICE PROCEDURE

Seat Back Replacement - Front

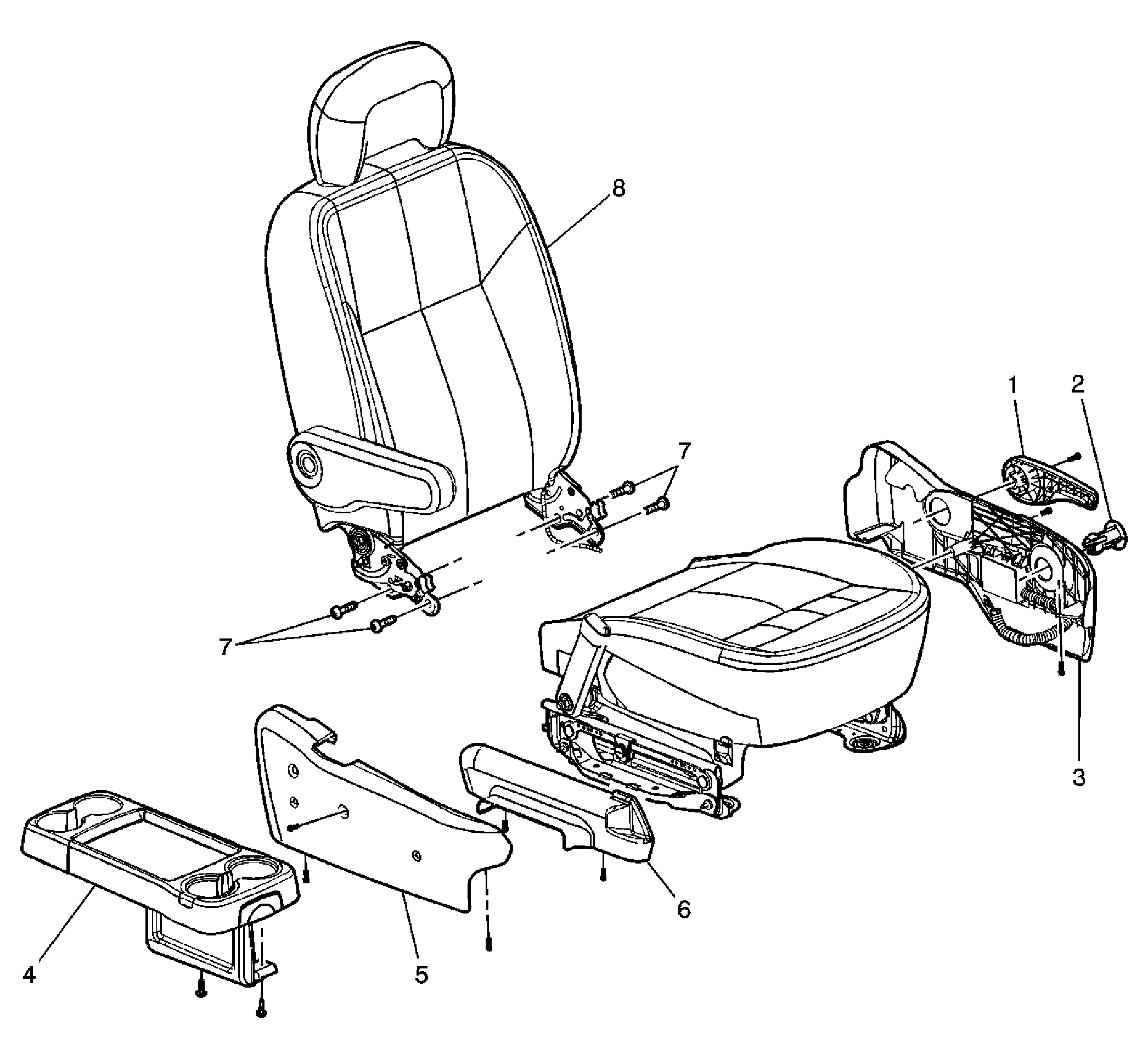

Fig 1: View Of Front Seat Back
GM1527375Courtesy of GENERAL MOTORS CORP.
Seat Back Replacement - Front

Callout Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices.
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the front bucket seat. Refer to Seat Replacement - Front Bucket .
1 Handle, Seat Recliner
Refer to Seat Back Recliner Handle Replacement - Front .
2 Plug, Seat Recliner Handle
3 Cover, Seat Outer Adjuster
Refer to Seat Adjuster Track Cover Replacement - Front .
4 Tray Assembly, Seat Storage
Refer to Storage Tray Replacement - Front Seat .
5 Cover, Seat Outer Adjuster
Refer to Seat Adjuster Track Cover Replacement - Front .
6 Cover, Seat Inner Adjuster
Refer to Seat Adjuster Track Cover Replacement - Front .
7 Bolt, Seat Back Recliner (Qty: 4)

Tighten:  48 N.m (35 lb ft)
8 Seat Back Assembly
