2005 Saturn Relay AWDFACTORY OEM SERVICE PROCEDURE
Seat Back Recliner Handle Replacement - Front
Seat Back Recliner Handle Replacement - Front

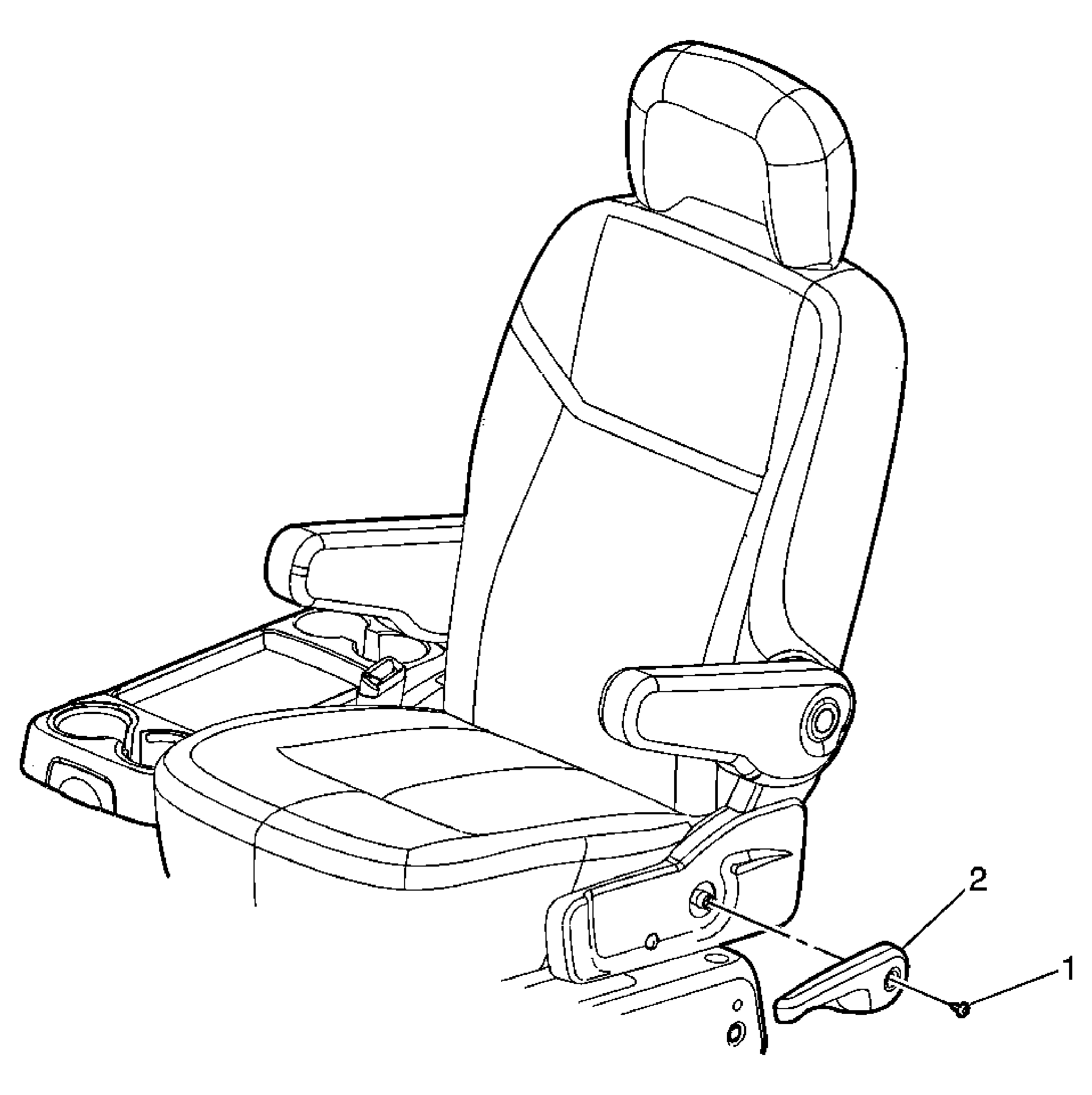

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
in Cautions and Notices. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
|
| 1 | Screw, Seat Recliner Handle Tighten: 2 N.m (18 lb in) |
| 2 | Handle, Seat Recliner |
