2000 Saturn LS1 L4-2.2L VIN F
Spark Plug: Service and Repair
2000 Saturn LS1 L4-2.2L VIN FSECTION Service and Repair
REMOVAL
1. Turn ignition Off.
2. Disconnect electrical connector at the electronic ignition module.

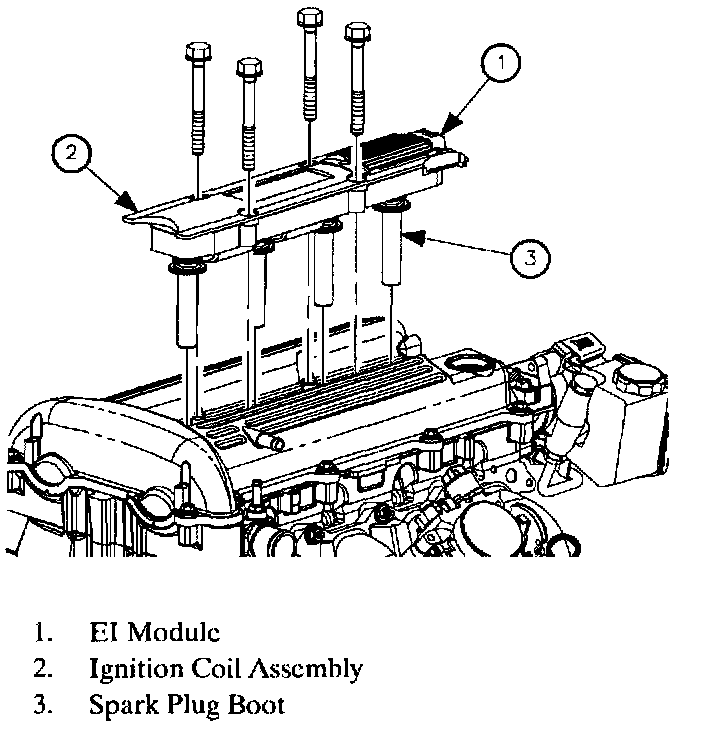

3. Remove bolts from EI module/coil assembly and remove.
IMPORTANT: Before removing the spark plugs, make sure water and other debris is blown off.

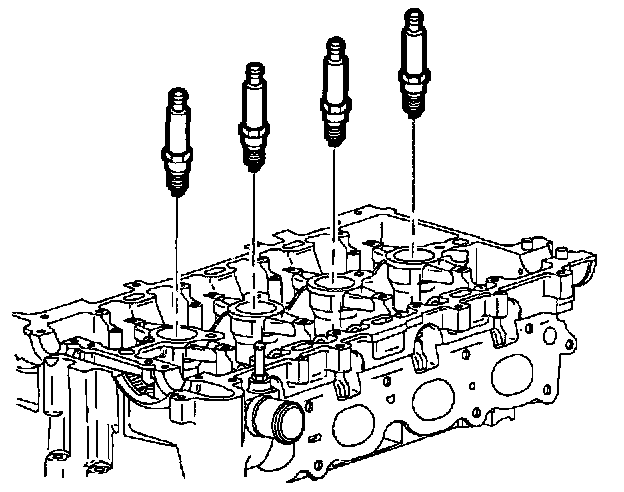

4. Remove spark plugs using a spark plug socket.
INSTALLATION
1. Set spark plug gap to 0.045 in.
IMPORTANT: Always coat spark plug threads with anti-seize compound before installation.
2. Install spark plugs.
Torque: 20 N.m (15 ft-lbs)
3. Apply dielectric lubricant to spark plug boots.
4. Install EI module/coil assembly and bolts to cam cover.
Torque: 10 N.m (89 in-lbs)
5. Connect the electrical connector to the electronic ignition module.
1. Turn ignition Off.
2. Disconnect electrical connector at the electronic ignition module.
3. Remove bolts from EI module/coil assembly and remove.
IMPORTANT: Before removing the spark plugs, make sure water and other debris is blown off.
4. Remove spark plugs using a spark plug socket.
INSTALLATION
1. Set spark plug gap to 0.045 in.
IMPORTANT: Always coat spark plug threads with anti-seize compound before installation.
2. Install spark plugs.
Torque: 20 N.m (15 ft-lbs)
3. Apply dielectric lubricant to spark plug boots.
4. Install EI module/coil assembly and bolts to cam cover.
Torque: 10 N.m (89 in-lbs)
5. Connect the electrical connector to the electronic ignition module.
