2010 Saab 9-5FACTORY OEM SERVICE PROCEDURE

Turn Signal Multifunction Switch Replacement

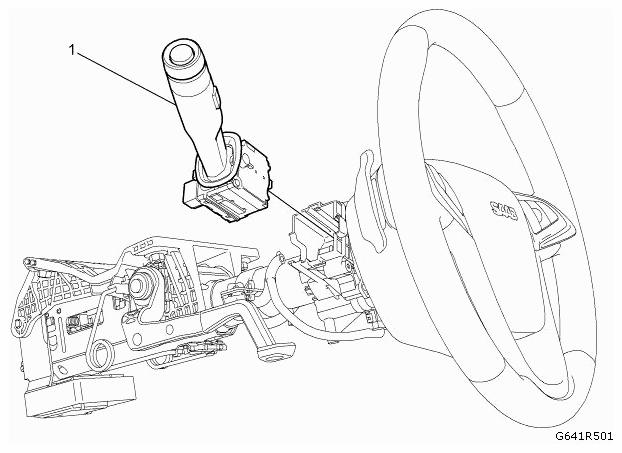

Fig 1: Identifying Turn Signal Multifunction Switch

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Remove the steering column trim covers. Refer to STEERING COLUMN TRIM COVER REPLACEMENT .
1	Turn Signal Multifunction Switch Procedure Disconnect any electrical connectors as needed. Depress the locking tabs to remove the turn signal multifunction switch.
