2010 Saab 9-5

Steering Column Lock Control Module Replacement

2010 Saab 9-5SECTION Steering Column Lock Control Module Replacement

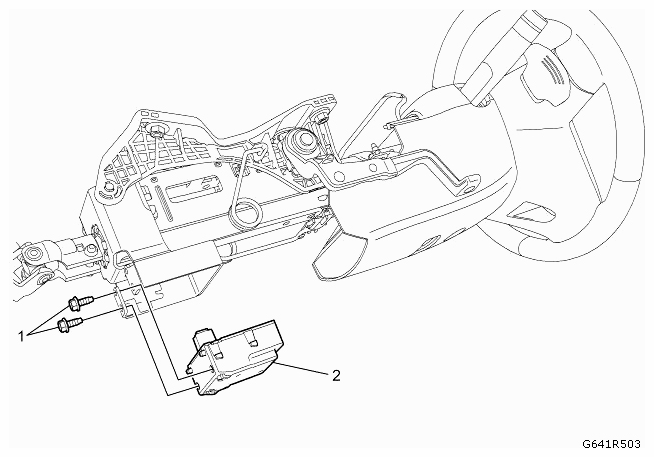

Fig 1: Identifying Steering Column Lock Control Module And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Remove the left side instrument panel lower trim panel insulator. Refer to INSTRUMENT PANEL LOWER TRIM PANEL INSULATOR REPLACEMENT - DRIVER SIDE . Perform Steering column lock, control module, programming and setting .
1	Steering Column Lock Control Module Fastener (Qty: 2) Refer to FASTENER CAUTION . Tighten 7 Nm (62 lb in)
2	Steering Column Lock Control Module Procedure Disconnect any electrical connectors as needed.
