2006 Pontiac GTO AutomaticFACTORY OEM SERVICE PROCEDURE
Anti-Lock Brake System Component Views

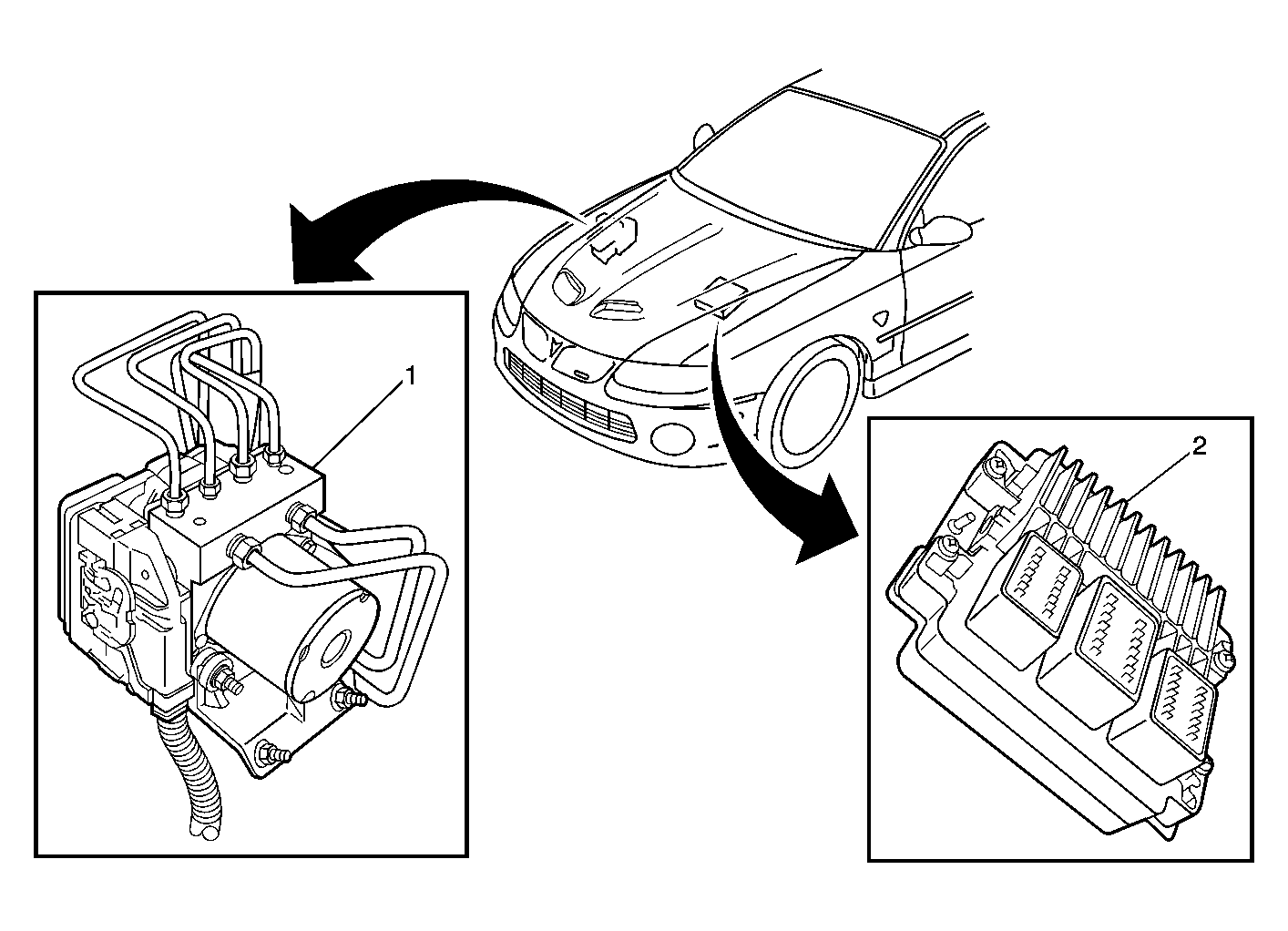

| Callout | Component Name |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Electronic Brake Control Module (EBCM)/Brake Pressure Modulator Valve (BPMV) Assembly |
| Callout | Component Name |
|---|---|

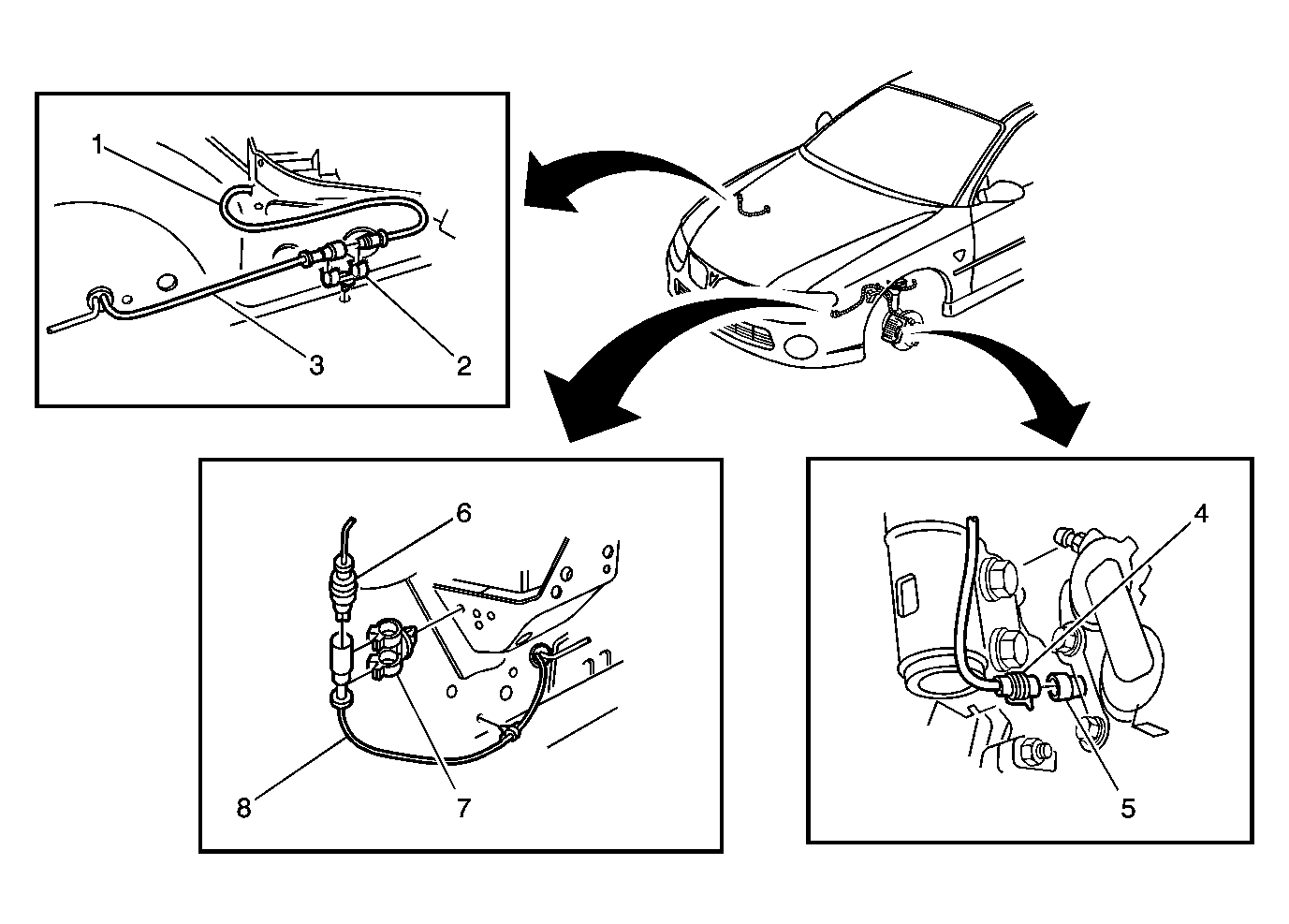

| 1 | Main Wiring Harness |
| 2 | RF Connector Retaining Clip |
| 3 | RF Wheel Speed Sensor Jumper Harness |
| 4 | Front Wheel Speed Sensor Jumper Harness |
| 5 | Front Wheel Speed Sensor |
| 6 | Main Wiring Harness |
| 7 | LF Connector Retaining Clip |
| 8 | LF Wheel Speed Sensor Jumper Harness |

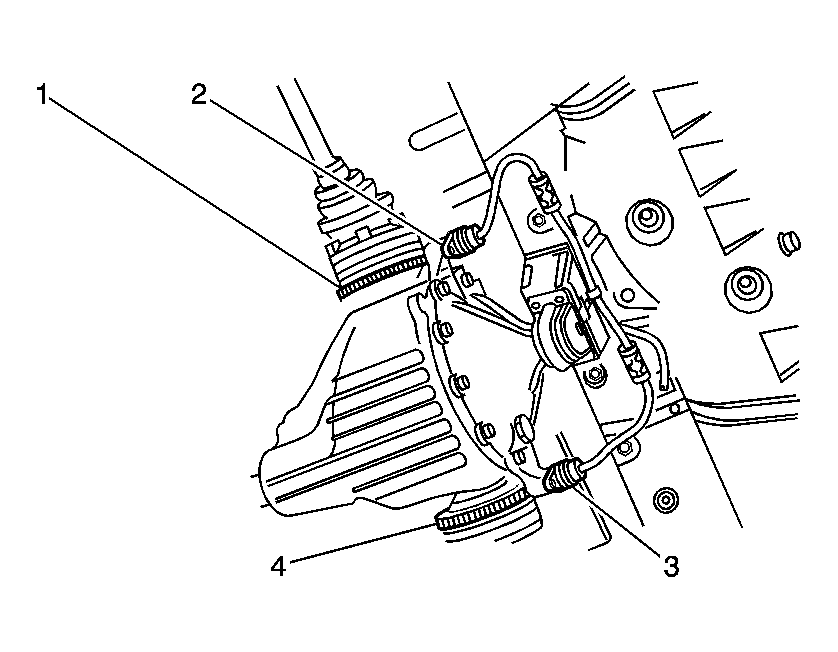

| Callout | Component Name |
|---|---|
| 1 | LH Rear Wheel Speed Sensor Ring |
| 2 | LH Rear Wheel Speed Sensor |
| 3 | RH Rear Wheel Speed Sensor |
| 4 | RH Rear Wheel Speed Sensor Ring |
