2005 Pontiac Vibe FWD L4-1.8L VIN 8
Scan Tool Output Controls
2005 Pontiac Vibe FWD L4-1.8L VIN 8SECTION Scan Tool Output Controls
This article has been updated by TSB #05-06-04-019 dated March 10, 2005.
SERVICE MANUAL UPDATE
Revised Fuel Tank Pressure (FTP) Sensor Range Readings
Models:
2005 Pontiac Vibe
Important:
The Tech 2(R) will no longer display pressure readings for the fuel tank pressure (FTP) sensor. The 2005 Vibe will show voltage readings for the FTP sensor. This currently ONLY effects the 2005 Vibe - you do not need to contact TCSC or TAC regarding this issue.
The fuel tank pressure (FTP) sensor range is now shown as a voltage reading instead of a pressure reading.
SERVICE MANUAL UPDATE
Revised Fuel Tank Pressure (FTP) Sensor Range Readings
Models:
2005 Pontiac Vibe
Important:
The Tech 2(R) will no longer display pressure readings for the fuel tank pressure (FTP) sensor. The 2005 Vibe will show voltage readings for the FTP sensor. This currently ONLY effects the 2005 Vibe - you do not need to contact TCSC or TAC regarding this issue.
The fuel tank pressure (FTP) sensor range is now shown as a voltage reading instead of a pressure reading.

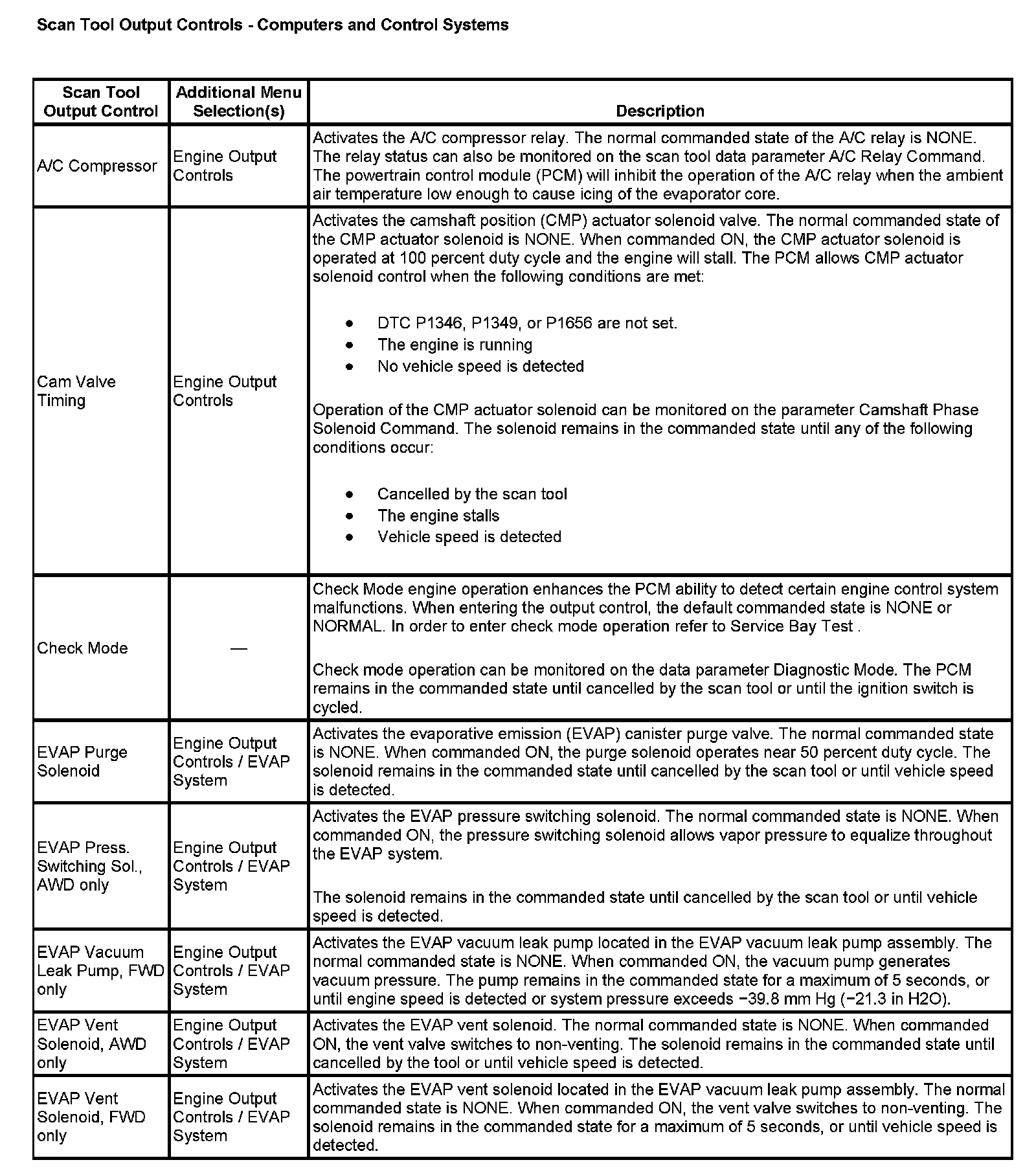

Scan Tool Output Controls - Computers And Control Systems Part 1:

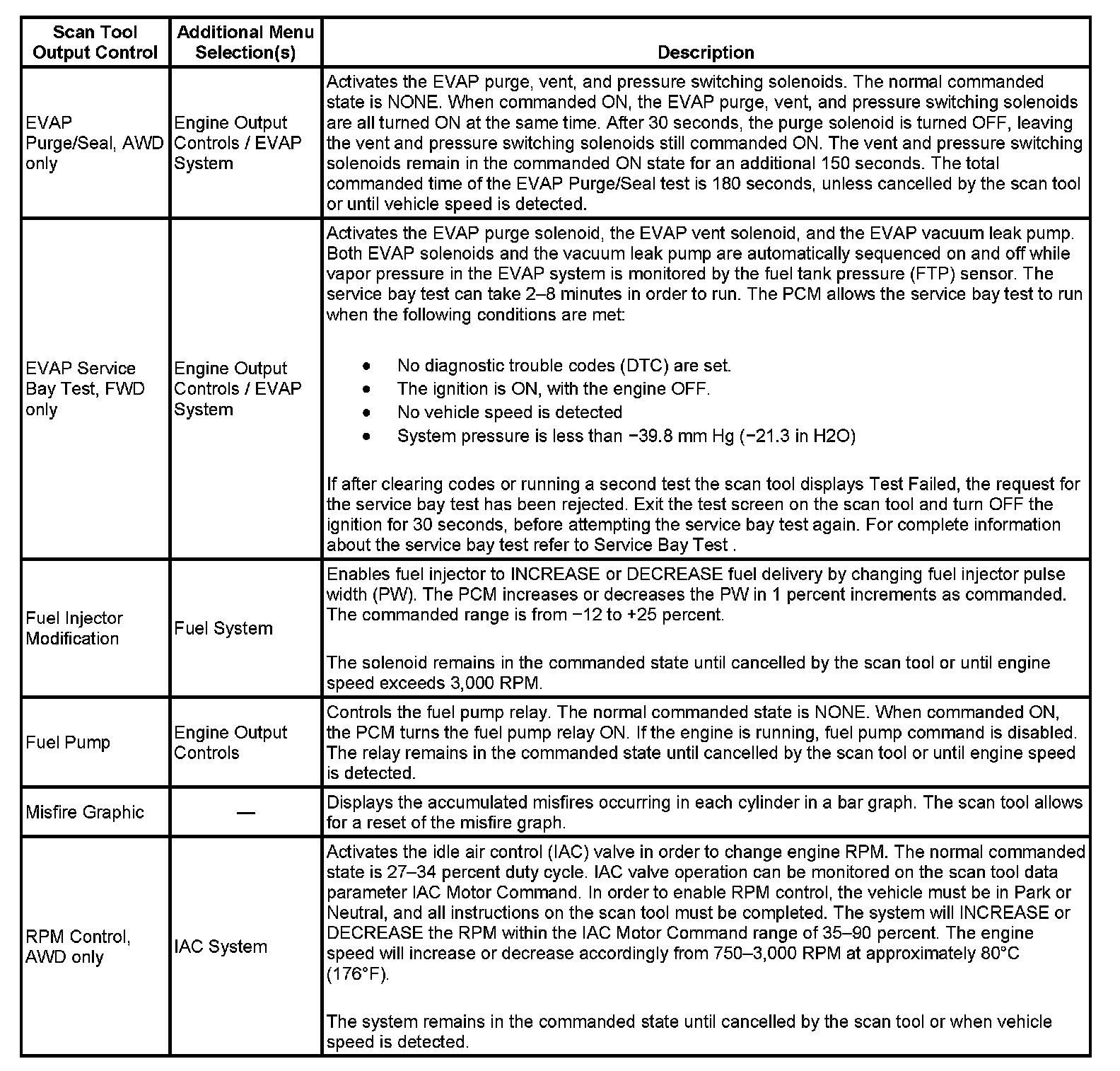

Scan Tool Output Controls - Computers And Control Systems Part 2:
