Scan Tool Data List - Powertrain System

SCAN TOOL DATA LIST

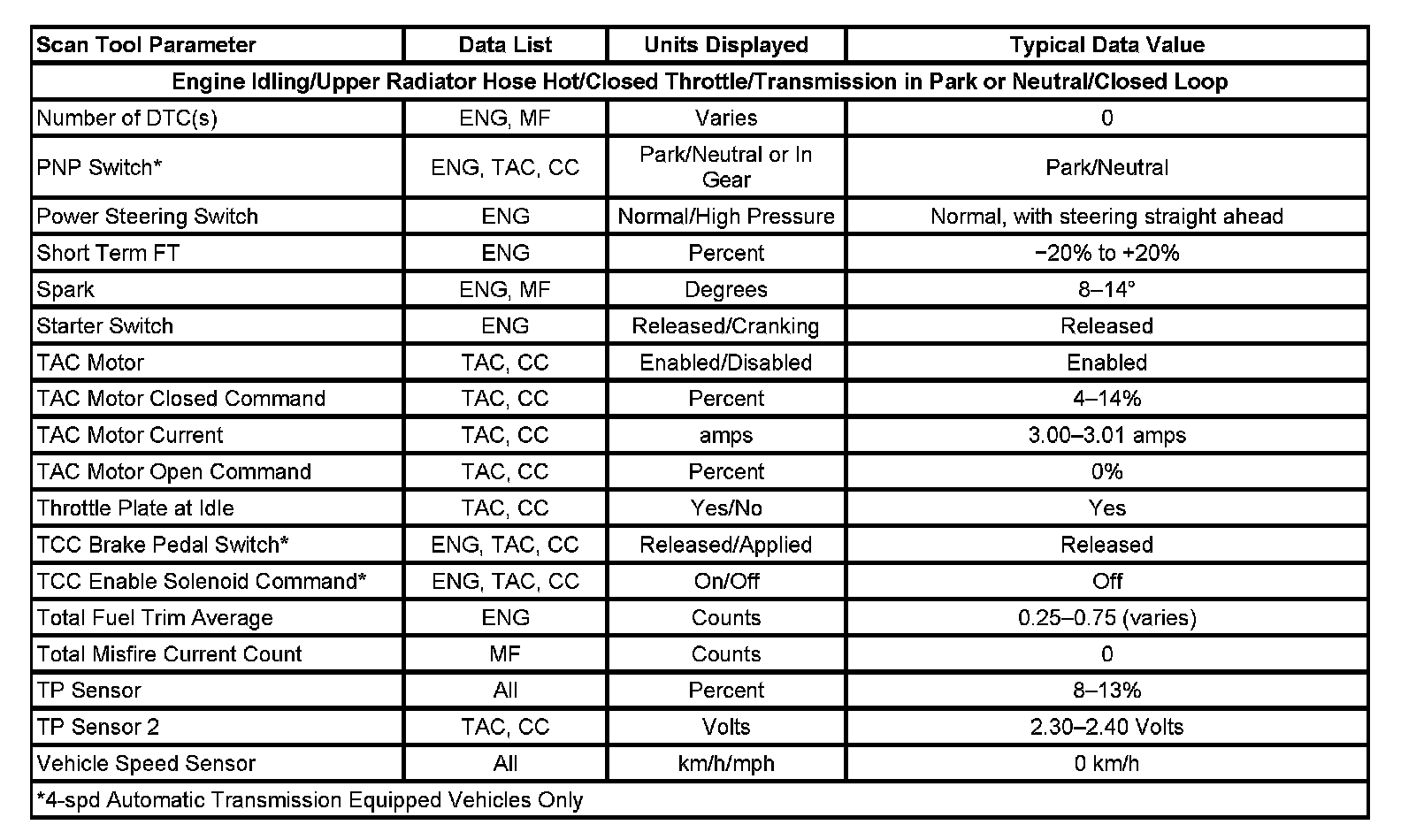

Scan Tool Data List Part 1:

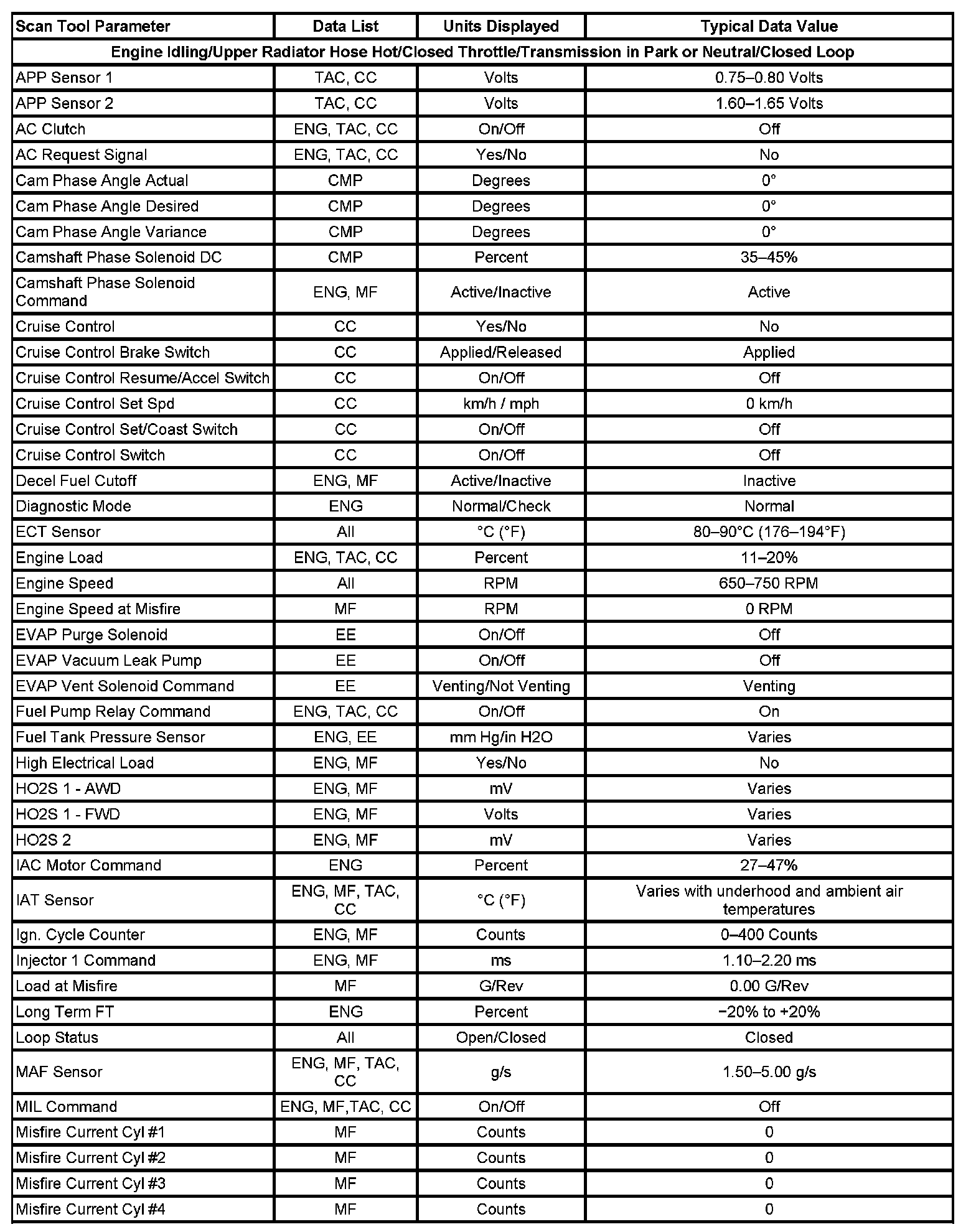

Scan Tool Data List Part 2:

The Engine Scan Tool Data List contains all of the engine related parameters that are available on the scan tool. The list is arranged in alphabetical order.

Use the Engine Scan Tool Data List only after verifying the following:
- The Diagnostic System Check - Vehicle is completed.
- No diagnostic trouble codes (DTCs) are present.
- The on-board diagnostics are functioning properly.

Scan tool values from a properly running engine may be used for comparison with the engine you are diagnosing. The Engine Scan Tool Data List represents values that would be seen on a normally running engine.

IMPORTANT: A scan tool that displays faulty data should not be used. The scan tool problem should be reported to the manufacturer. The use of a faulty scan tool can result in misdiagnosis and unnecessary parts replacement.

Only the parameters listed below are referenced in this Service Data for use in diagnosis. If all values are within the typical range described below, refer to Symptoms - Computers and Control Systems for diagnosis. Symptom Related Diagnostic Procedures

The column labeled Data List indicates where a parameter is located on the scan tool. Review the scan tool operating manual for the exact locations of each term listed. The following is a description of each item listed:

All: The parameter is in all data lists indicated below.
ENG: General Engine Data
EE: Evaporative Emissions (EVAP) Data
MF: Misfire
CMP: Camshaft Phaser (CMP) System Data
TAC: Throttle Actuator Control (TAC) System Data
CC: Cruise Control Data
