2005 Pontiac Vibe FWD L4-1.8L VIN 8
Cruise Control Module: Service and Repair
2005 Pontiac Vibe FWD L4-1.8L VIN 8SECTION Service and Repair

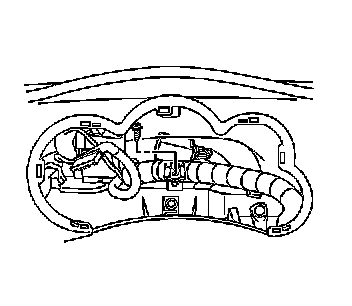

CRUISE CONTROL MODULE REPLACEMENT
REMOVAL PROCEDURE
1. Remove the instrument panel cluster trim plate.
2. Remove the instrument panel cluster assembly.
3. Disconnect the cruise control module electrical connector.
4. Remove the following components from the vehicle:
- The cruise control module mounting bolt
- The cruise control module
INSTALLATION PROCEDURE
1. Install the cruise control module to the IP. Secure the module with the mounting bolt.
Tighten the cruise control module mounting bolt to 10 N.m (89 lb in).
NOTE: Refer to Fastener Notice in Service Precautions.
2. Connect the cruise control module electrical connector.
3. Install the instrument panel cluster assembly.
4. Install the instrument panel cluster trim plate.
