1991 Pontiac Firebird V8-350 5.7L
Distributor Reference Signal
1991 Pontiac Firebird V8-350 5.7LSECTION Distributor Reference Signal

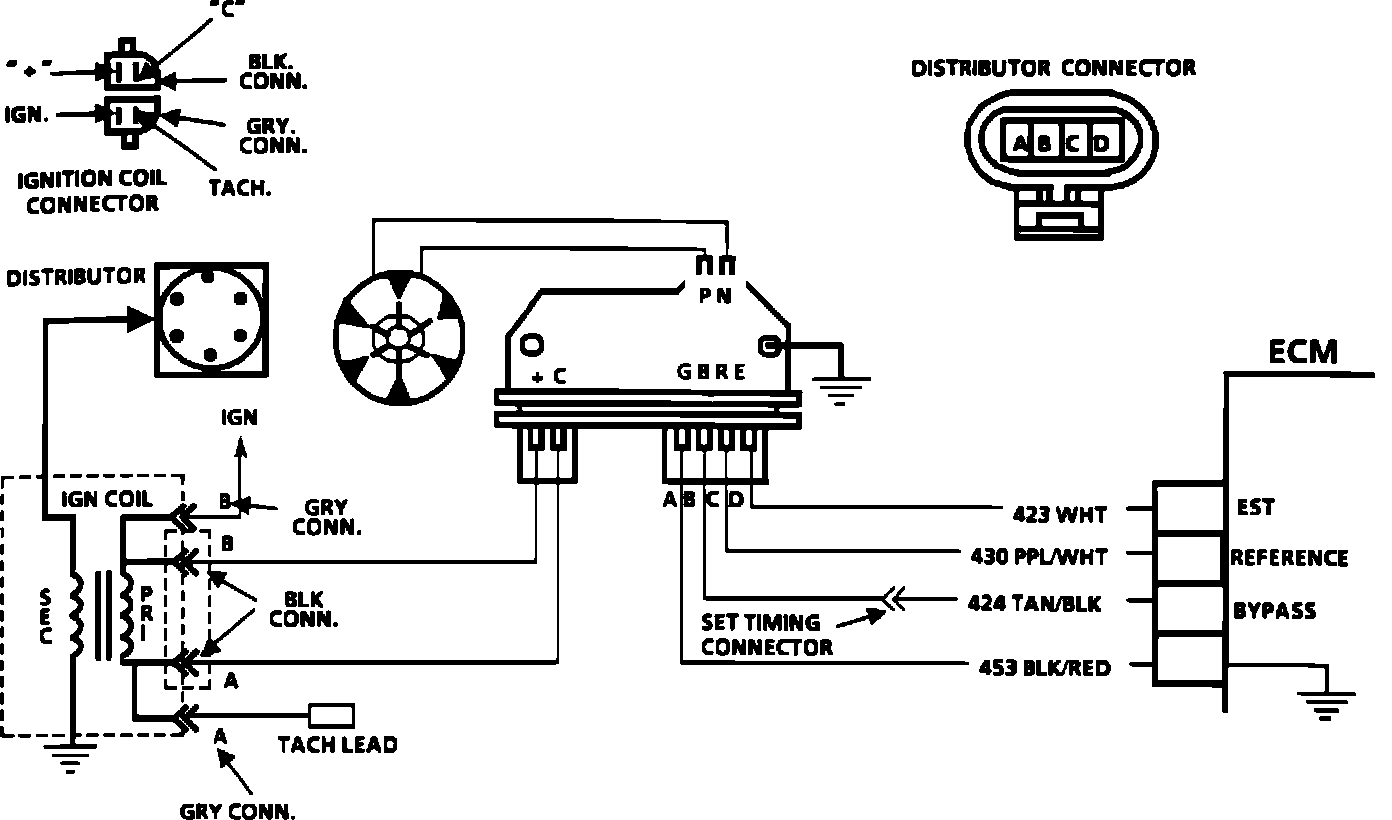

Distributor Reference Signal Schematic:
The distributor reference signal comes from the ignition module and provides the ECM with rpm and crankshaft position information. If the wire becomes open or grounded the engine will not run, because the ECM will not operate the injectors. If the engine cranks but won't run, refer to Computers and Control Systems. Testing and Inspection
