Engine Coolant Temperature (ECT) Sensor
1998 Oldsmobile Aurora V8-4.0L VIN CSECTION Engine Coolant Temperature (ECT) Sensor

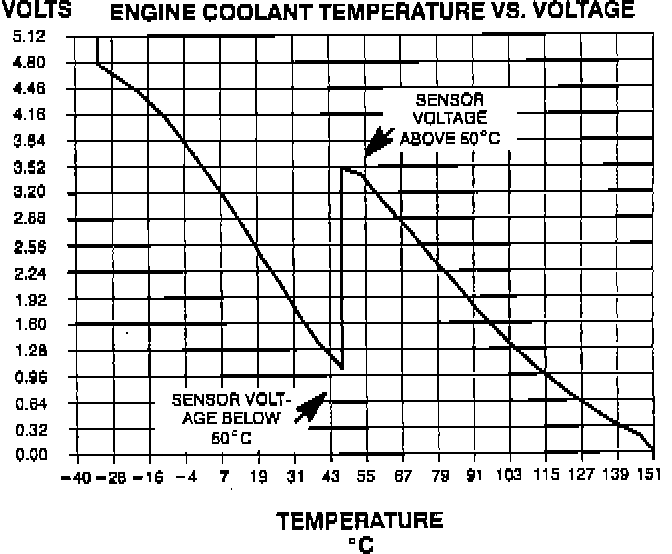

Voltage Versus Temperature Chart:
DESCRIPTION
The ECT sensor is a thermistor (a resistor that changes value due to temperature) mounted in the engine coolant flow.
OPERATION
High coolant temperatures result in low resistance and low temperatures result in high resistance. The PCM provides a 5 volt reference signal and a ground to the ECT sensor, and it measures the voltage signal as it changes due to the sensors resistance. A high coolant temperature will result in low signal voltage (near 0 volt) and low coolant temperature will result in high signal voltage (near 5 volts).
The ECT sensor circuit uses two different temperature sensing circuits for two temperature ranges - below 50°C (122°F) and above 50°C (122°F). The PCM will shift between a high resistance circuit for low temperatures and a low resistance circuit for high temperatures.
