2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE

Door Switch Check

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check Door Switch Input Signal

    With CONSULT-II

    • Check door switch in "DATE MONITOR" mode with CONSULT-II.

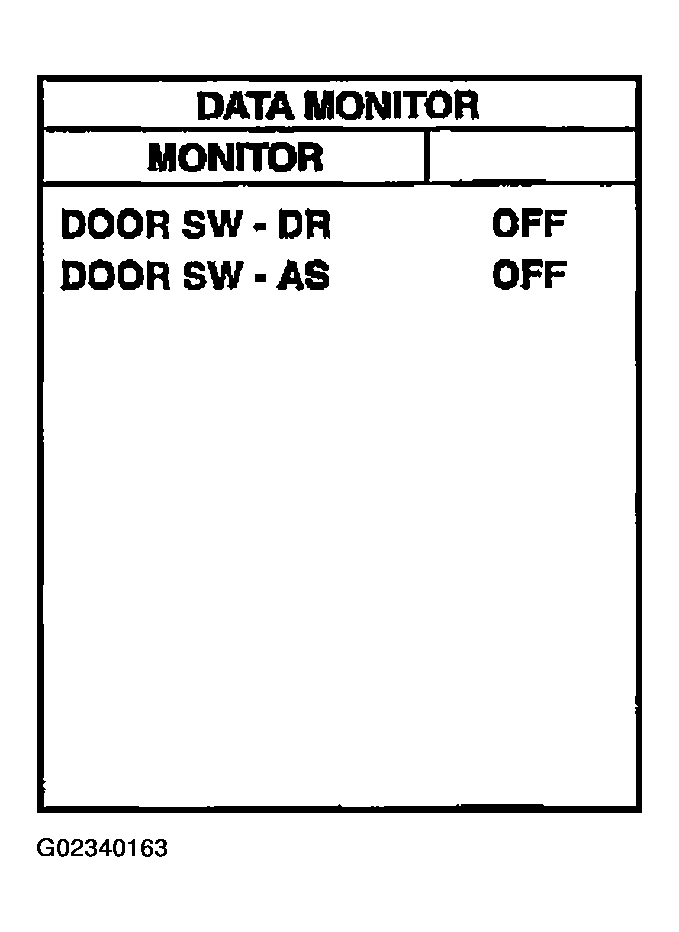

      Fig 1: Data Monitor Display
      G02340163Courtesy of NISSAN MOTOR CO., U.S.A.
      1. When door is opened: DOOR SW ON
      2. When door is closed: DOOR SW OFF

      Without CONSULT-II

    • Check all door switches in switch monitor mode. Refer to Remote keyless entry system, see SWITCH MONITOR .

    OK or NG

    1. OK: Door switch is OK.
    2. NG: Go to 2.

  2. Check Door Switch
    1. Turn ignition switch OFF.
    2. Disconnect door switch connector.
    3. Check continuity between following terminals and ground.

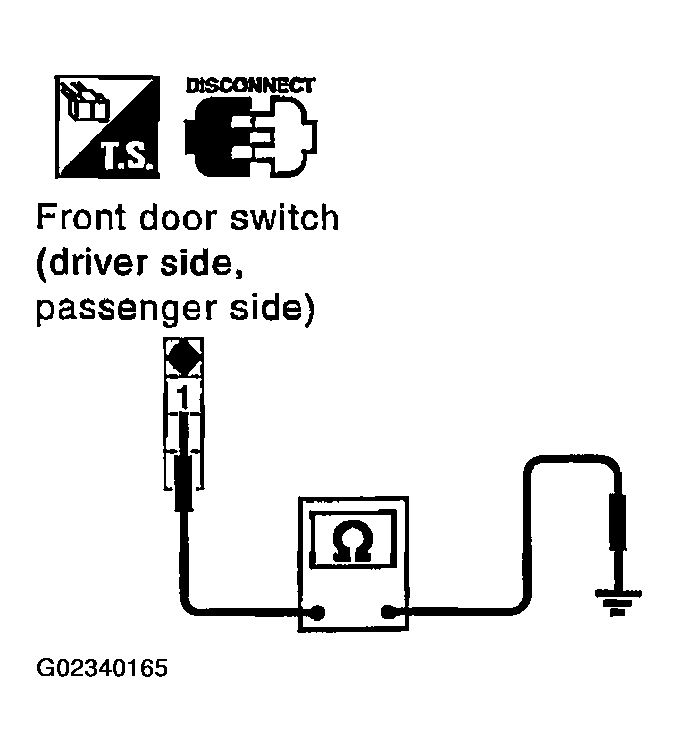

      Fig 2: Checking Door Switch
      G02340165Courtesy of NISSAN MOTOR CO., U.S.A.
