2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE

Switch Monitor

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

How to Perform Switch Monitor

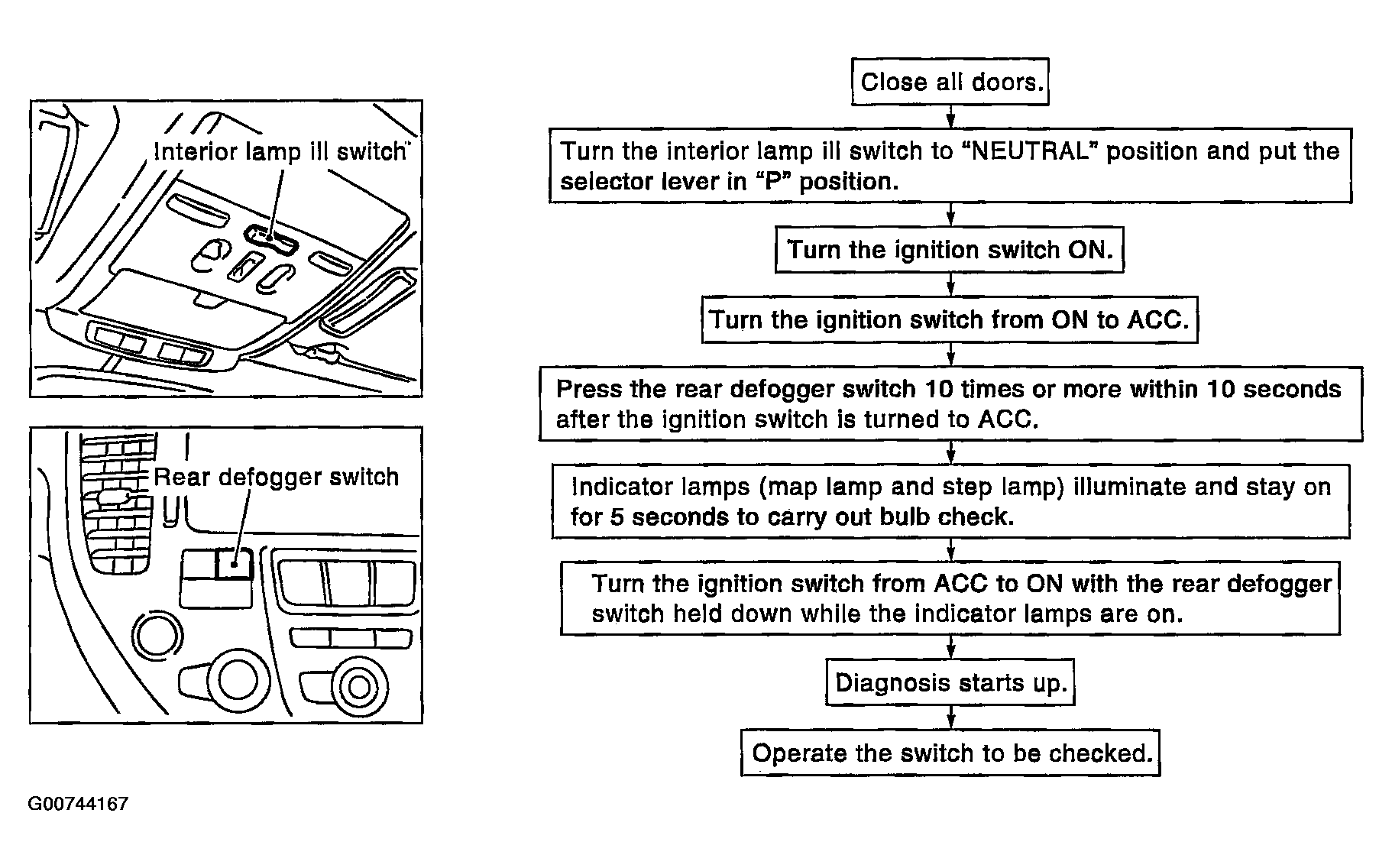

Fig 1: How to Perform Switch Monitor

Courtesy of NISSAN MOTOR CO., U.S.A.

Description

In this mode, when BCM detects the input signal from a switch in IVMS as shown below, the detection is indicated by the map lamp and step lamps with buzzer.

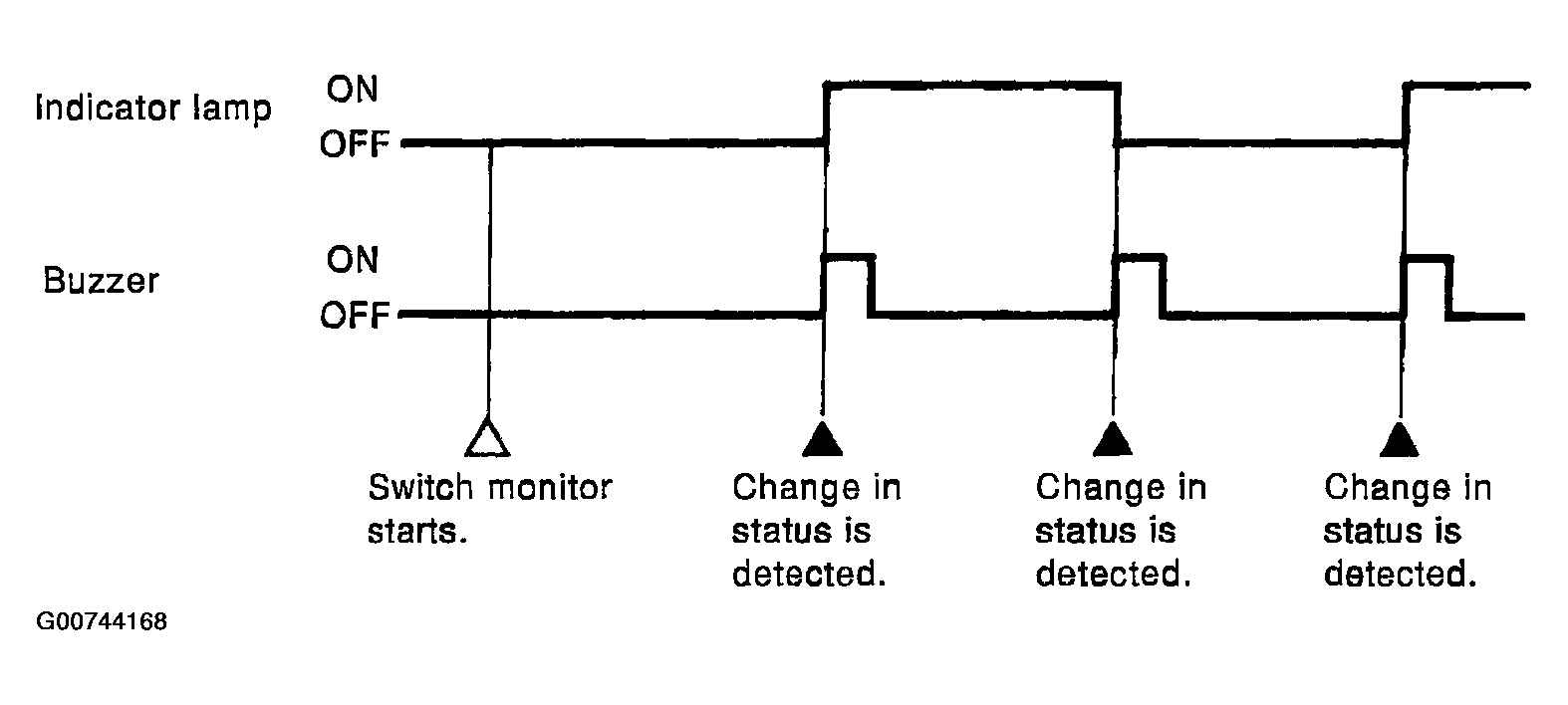

Fig 2: Example Of Input Signal

Courtesy of NISSAN MOTOR CO., U.S.A.

Switch Monitor Item

The status of the switch (expect the ignition switch, interior ill lamp switch, and map lamp switch) as input to each control unit can be monitored.

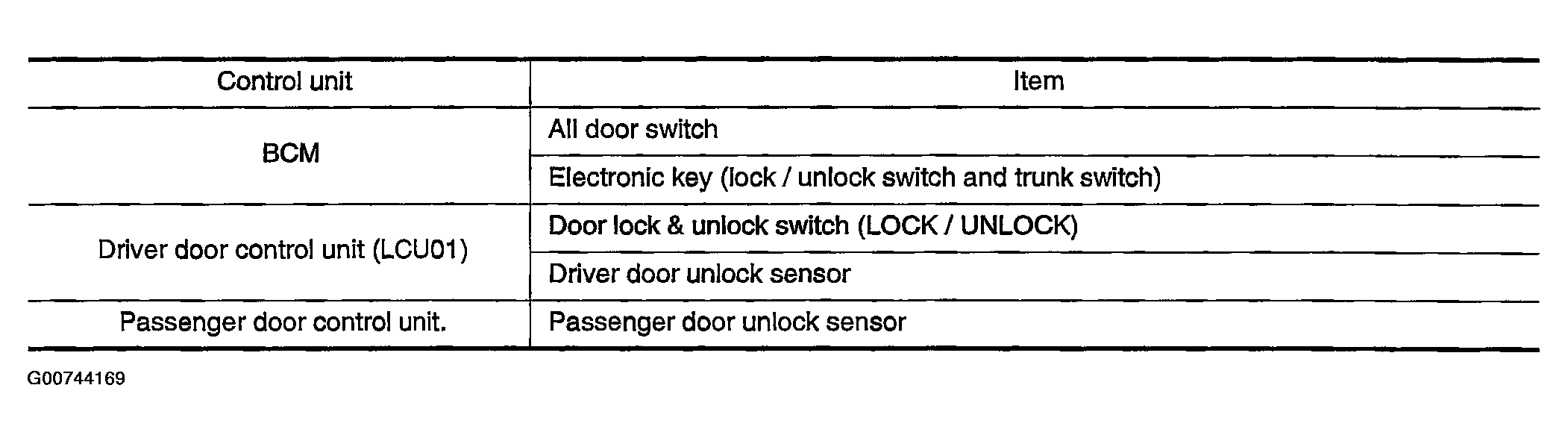

Fig 3: Switch Monitor Item (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
