2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE

Consult-II Basic Operation Procedure

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
  1. With the ignition switch OFF, connect "CONSULT-II" and CONSULT-II CONVERTER" to the data link connector, and turn ignition switch ON.

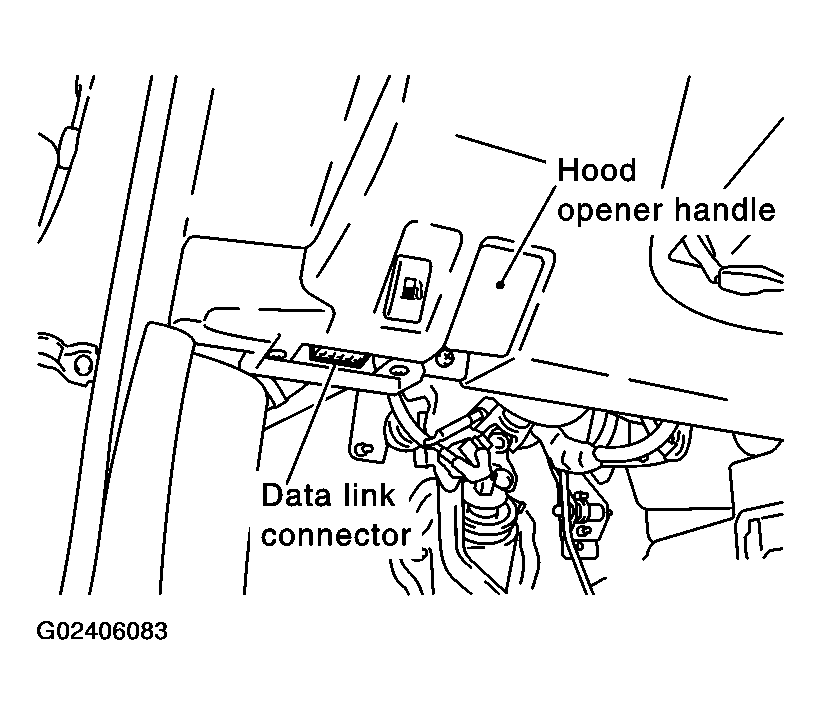

    Fig 1: Data Link Connector
    G02406083Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "START (NISSAN BASED VHCL)".

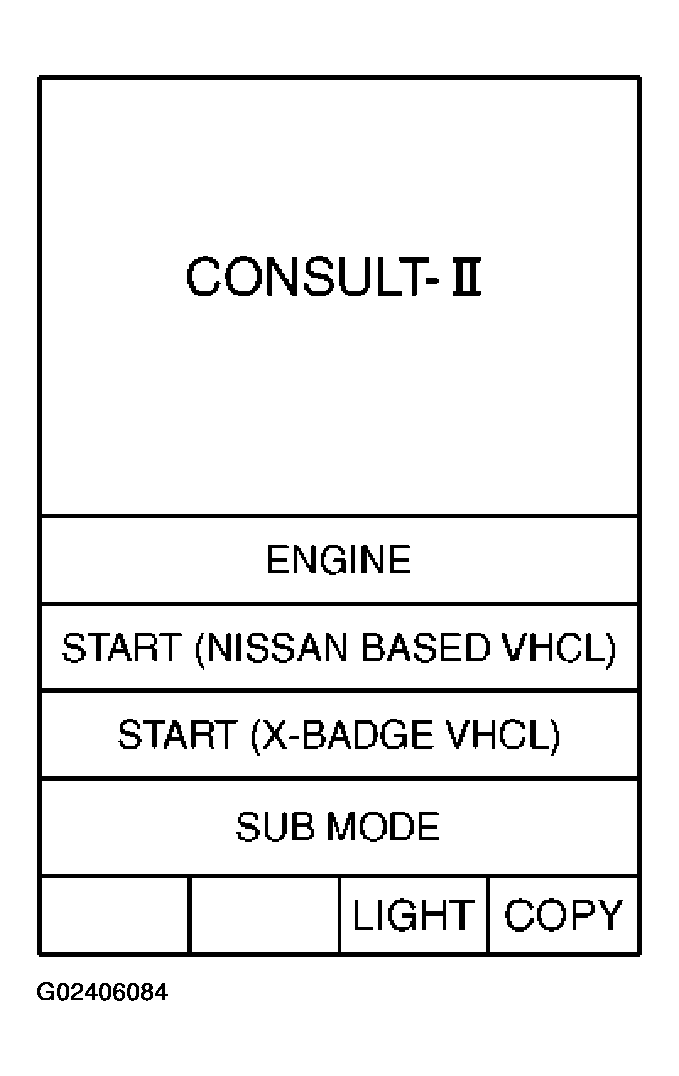

    Fig 2: Scan Tool Display "Consult II"
    G02406084Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Touch "BCM" on "SELECT SYSTEM" screen. If "BCM" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

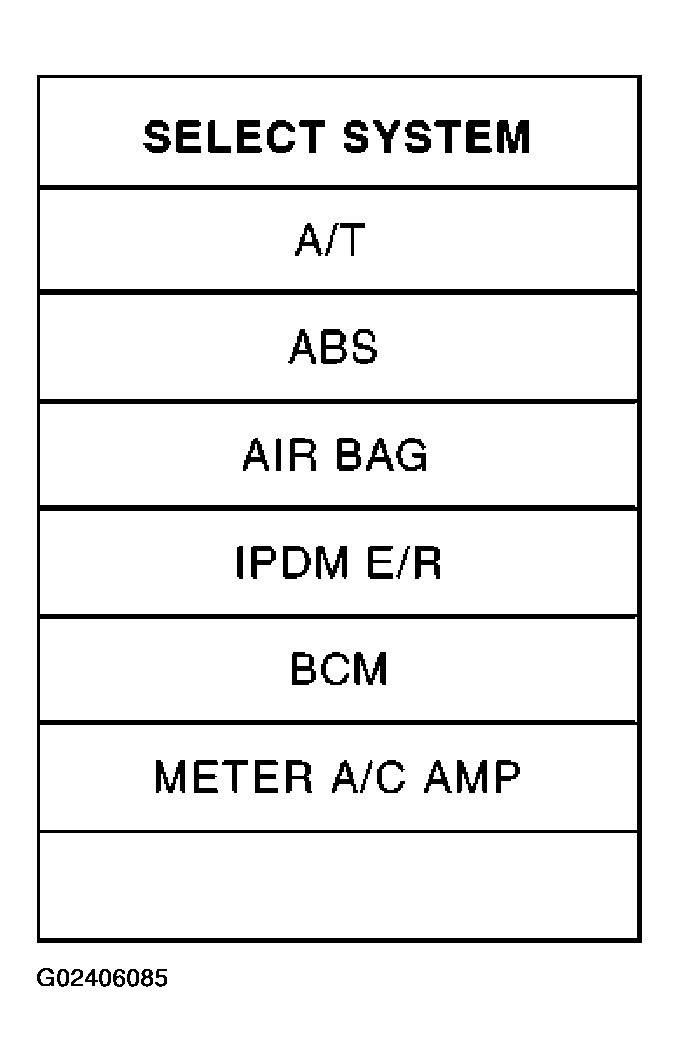

    Fig 3: Scan Tool Display "Select System"
    G02406085Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "BUZZER" or "BCM".
  5. Select "DATA MONITOR", "ACTIVE TEST" or "SELF-DIAG RESULTS".

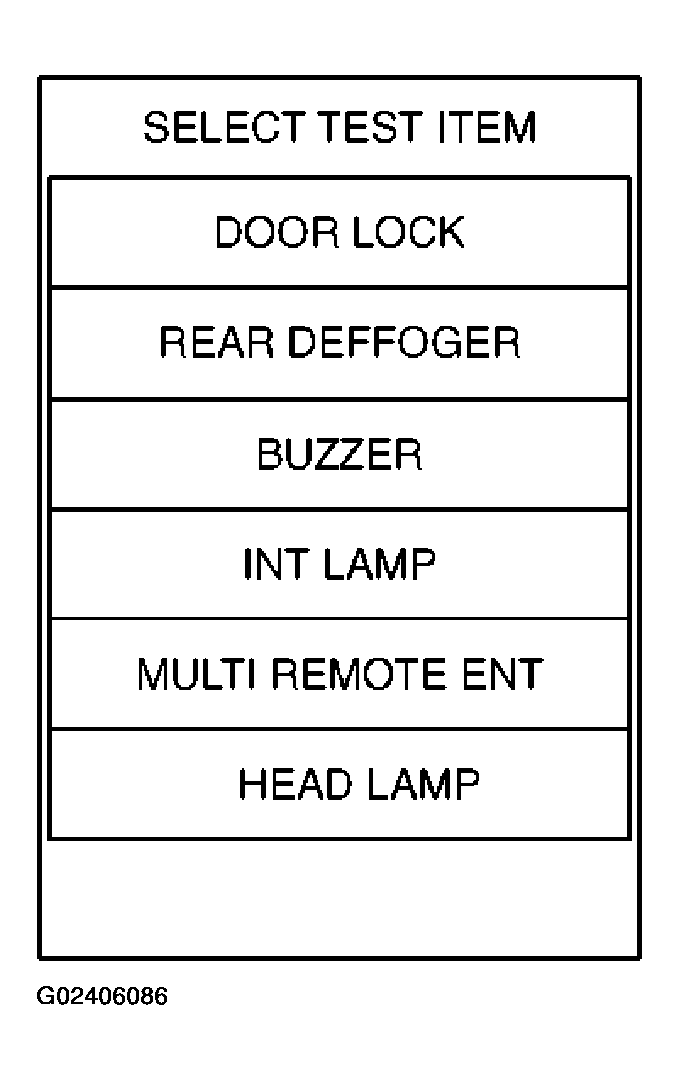

    Fig 4: Scan Tool Display "Select Test Item"
    G02406086Courtesy of NISSAN MOTOR CO., U.S.A.
