Diagnostic Procedure

SYMPTOM 1:

• Selector lever cannot be moved from "P" position with key in ON position and brake pedal applied.
• Selector lever can be moved from "P" position with key in ON position and brake pedal released.
• Selector lever can be moved from "P" position when key is removed from key cylinder.

SYMPTOM 2: Ignition key cannot be removed when selector lever is set to "P" position. It can be removed when selector lever is set to any position except "P".

1. CHECK KEY INTERLOCK CABLE

   Check key interlock cable for damage.

   OK or NG

   1. OK: GO TO 2.
   2. NG: Repair key interlock cable. Refer to "COMPONENTS ".
2. CHECK SELECTOR LEVER POSITION

   Check selector lever position for damage.

   OK or NG

   1. OK: GO TO 3.
   2. NG: Check selector lever. Refer to "CONTROL CABLE ADJUSTMENT ".
3. CHECK POWER SOURCE

   Turn ignition switch to "OFF" position. (Do not start engine.)

   • Check voltage between A/T device harness connector M44 terminal 7 (G) and ground.

     Voltage:

     Brake pedal depressed: Battery voltage

     Brake pedal released: 0V

   OK or NG

   1. OK: GO TO  5.
   2. NG: GO TO 4.

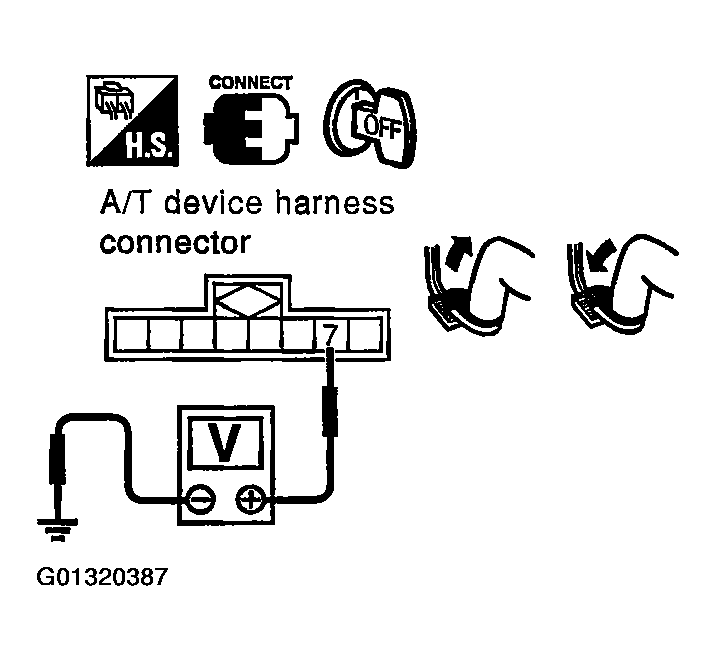

   Fig 1: Checking Power Source

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. DETECT MALFUNCTIONING ITEM

   Check the following items.

   1. Harness for open or short between fuse block (J/B) connector M1 terminal 12K and stop lamp switch harness connector M26 terminal 3.
   2. Harness for open or short stop lamp switch harness connector M26 terminal 4 and A/T device harness connector M44 terminal 7 (G).
   3. 10A fuse [10, located in the fuse block (J/B)].
   4. Check continuity between stop lamp switch harness connector M26 terminals 3 (G) and 4 (G).

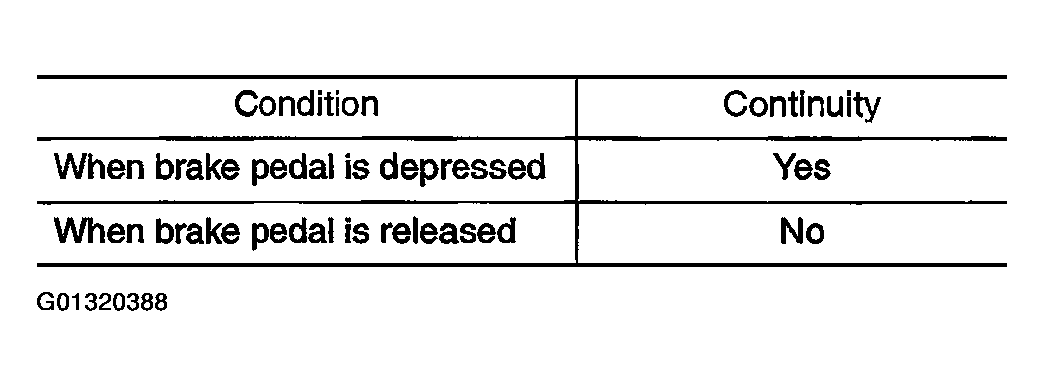

      Fig 2: Condition Continuity Specifications

      Courtesy of NISSAN MOTOR CO., U.S.A.
