2006 Mitsubishi Lancer EvolutionFACTORY OEM SERVICE PROCEDURE

Clock Spring

  1. Check the clock spring connectors and protective tube for damage, and the terminals for deformation.
  2. Visually check the case for damage.

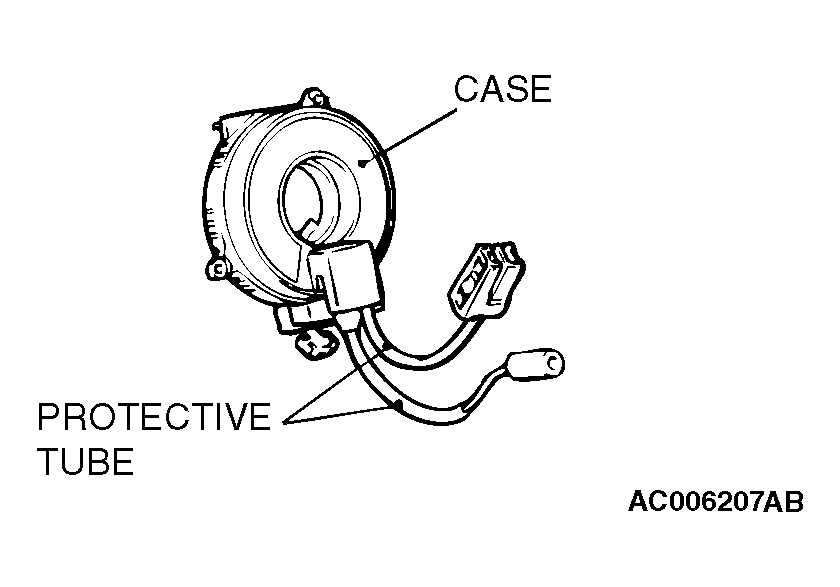

    Fig 1: Checking Clock Spring Connectors
    G04298190Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
