2019 Mini Cooper Base, 2D Convertible, Automatic Trans

Engine identification

2019 Mini Cooper Base, 2D Convertible, Automatic TransSECTION Engine identification

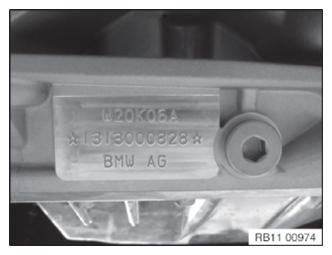

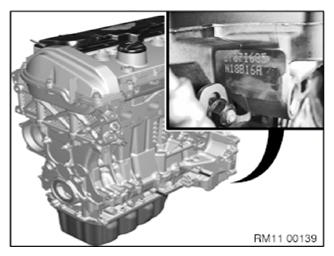

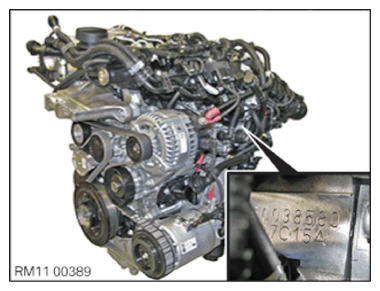

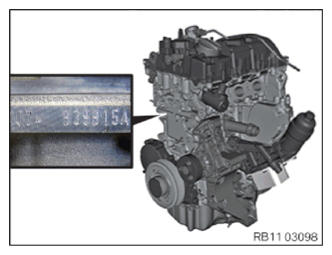

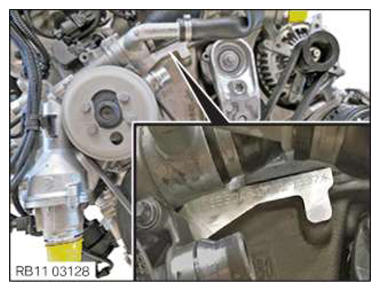

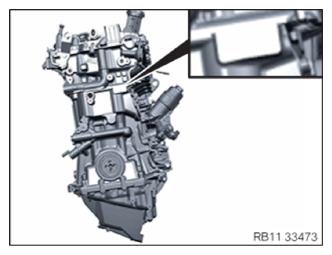

Engine number at the marked surface.

Replacement drives are already assigned a number containing the identification and engine number at the factory.

The old drive number must be imprinted for replacement crankcases.

Magnesium crank cases feature a label, the engine number does not need to be embossed.

M47/M47TU/M47T2

Courtesy of BMW OF NORTH AMERICA, INC.

M57/M57TU/M57T2

Courtesy of BMW OF NORTH AMERICA, INC.

M67/M67TU

Courtesy of BMW OF NORTH AMERICA, INC.

N47/N47S/N47C/N47T/N57/N57S/N57T

Courtesy of BMW OF NORTH AMERICA, INC.

M52/M52TU

Courtesy of BMW OF NORTH AMERICA, INC.

M54

Courtesy of BMW OF NORTH AMERICA, INC.

M56

Courtesy of BMW OF NORTH AMERICA, INC.

N20/N26

Courtesy of BMW OF NORTH AMERICA, INC.

N40/N45/N45T/N43

Courtesy of BMW OF NORTH AMERICA, INC.

N42/N46/N46T

Courtesy of BMW OF NORTH AMERICA, INC.

N51/N52/N52K/N52T/N53/N54/N55

Courtesy of BMW OF NORTH AMERICA, INC.

N62/N62TU

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

Position (1) engine number.

Position (2) engine code letters.

N63, N63O1. N63O2

S63

N74, N74O1,

S63T0 to engine number 2001 0052 on right side cyl. 1-4.

S63T0 from engine number 2001 0053 on left side cyl. 5-8.

E72 Vehicles must be imprinted on the left side cyl. 5-8.

N73

Courtesy of BMW OF NORTH AMERICA, INC.

S54

Courtesy of BMW OF NORTH AMERICA, INC.

S85/S65

Courtesy of BMW OF NORTH AMERICA, INC.

S55

Courtesy of BMW OF NORTH AMERICA, INC.

W10/W11

Courtesy of BMW OF NORTH AMERICA, INC.

W16

Courtesy of BMW OF NORTH AMERICA, INC.

W17

Courtesy of BMW OF NORTH AMERICA, INC.

W20

Courtesy of BMW OF NORTH AMERICA, INC.

N12/N13/N14/N16/N18

Courtesy of BMW OF NORTH AMERICA, INC.

B37/B38A/B47/B48A

Courtesy of BMW OF NORTH AMERICA, INC.

B38B/B48B

Courtesy of BMW OF NORTH AMERICA, INC.

B38

Courtesy of BMW OF NORTH AMERICA, INC.

B57

Courtesy of BMW OF NORTH AMERICA, INC.

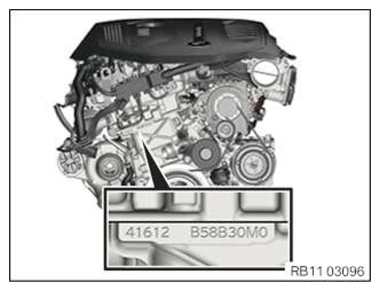

B58

Courtesy of BMW OF NORTH AMERICA, INC.

S58

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
