2000 Mercury Sable V6-3.0L DOHC VIN S
Intake Air Temperature Sensor
2000 Mercury Sable V6-3.0L DOHC VIN SSECTION Intake Air Temperature Sensor
Intake Air Temperature Sensor
The Intake Air Temperature (IAT) sensors are thermistor devices in which resistance changes with temperature. The electrical resistance of a thermistor decreases as the temperature increases, and increases as the temperature decreases. The varying resistance affects the voltage drop across the sensor terminals and provides electrical signals to the PCM corresponding to temperature.
Some MAF sensors have Integrated Bypass Technology (IBT) with an integrated Intake Air Temperature (IAT) sensor. The present applications with IBT are: Focus, Escort (4V), 2.0 L Contour/Mystique, Cougar, Taurus/Sable, Windstar, Explorer/Mountaineer and E-Series.
Thermistor-type sensors are considered passive sensors. A passive sensor is connected to a voltage divider network so that varying the resistance of the passive sensor causes a variation in total current flow.
Voltage that is dropped across a fixed resistor in a series with the sensor resistor determines the voltage signal at the PCM. This voltage signal is equal to the reference voltage minus the voltage drop across the fixed resistor.
The IAT provides air temperature information to the PCM. The PCM uses the air temperature information as a correction factor in the calculation of fuel, spark and MAF.
The IAT sensor provides a quicker temperature change response time than the ECT sensor.
Supercharged 5.4L Lightning vehicles use (2) IAT sensors. Both sensors operate as described above. However, one is located before the supercharger at the air cleaner for standard OBD II/cold weather input, while a second sensor (IAT2) is located after the supercharger in the intake manifold. The IAT2 sensor located after the supercharger provides air temperature information to the PCM to control border-line spark and to help determine intercooler efficiency.

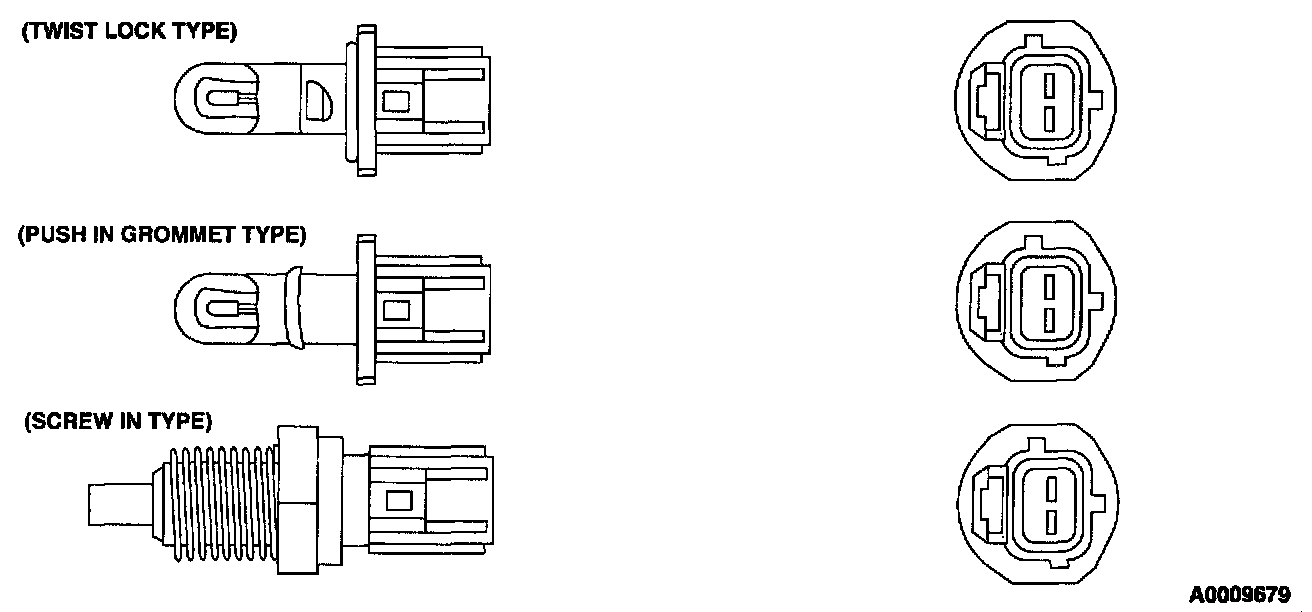

Intake Air Temperature (IAT):
The Intake Air Temperature (IAT) sensors are thermistor devices in which resistance changes with temperature. The electrical resistance of a thermistor decreases as the temperature increases, and increases as the temperature decreases. The varying resistance affects the voltage drop across the sensor terminals and provides electrical signals to the PCM corresponding to temperature.
Diagram Of Flow Through Throttle Body (Containing IAT Sensor Wire Where Applicable):
Some MAF sensors have Integrated Bypass Technology (IBT) with an integrated Intake Air Temperature (IAT) sensor. The present applications with IBT are: Focus, Escort (4V), 2.0 L Contour/Mystique, Cougar, Taurus/Sable, Windstar, Explorer/Mountaineer and E-Series.
Thermistor-type sensors are considered passive sensors. A passive sensor is connected to a voltage divider network so that varying the resistance of the passive sensor causes a variation in total current flow.
Voltage that is dropped across a fixed resistor in a series with the sensor resistor determines the voltage signal at the PCM. This voltage signal is equal to the reference voltage minus the voltage drop across the fixed resistor.
The IAT provides air temperature information to the PCM. The PCM uses the air temperature information as a correction factor in the calculation of fuel, spark and MAF.
The IAT sensor provides a quicker temperature change response time than the ECT sensor.
Supercharged 5.4L Lightning vehicles use (2) IAT sensors. Both sensors operate as described above. However, one is located before the supercharger at the air cleaner for standard OBD II/cold weather input, while a second sensor (IAT2) is located after the supercharger in the intake manifold. The IAT2 sensor located after the supercharger provides air temperature information to the PCM to control border-line spark and to help determine intercooler efficiency.
