2000 Mercury Sable V6-3.0L DOHC VIN SFACTORY OEM SERVICE PROCEDURE
Remote Climate Control Module
REMOVAL

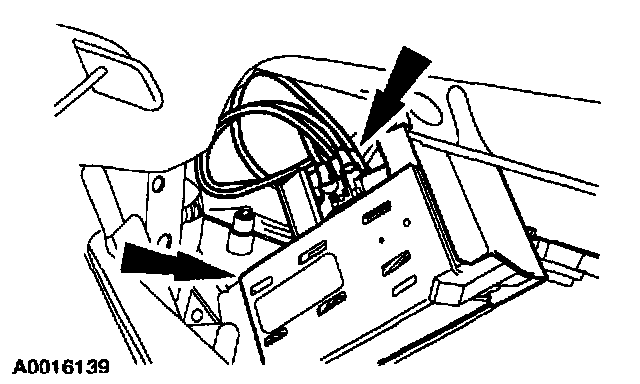

1. Remove the integrated control panel.

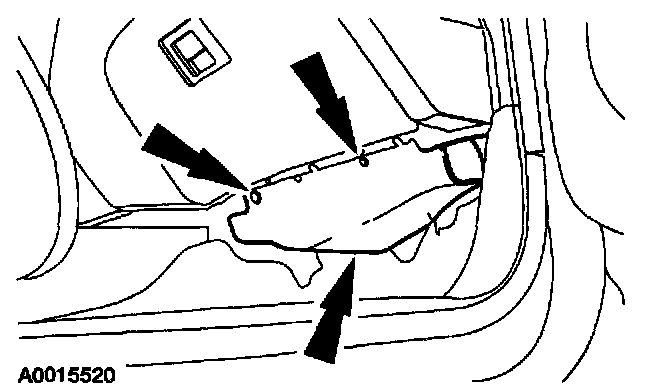

2. Remove the right-side lower instrument panel insulator.

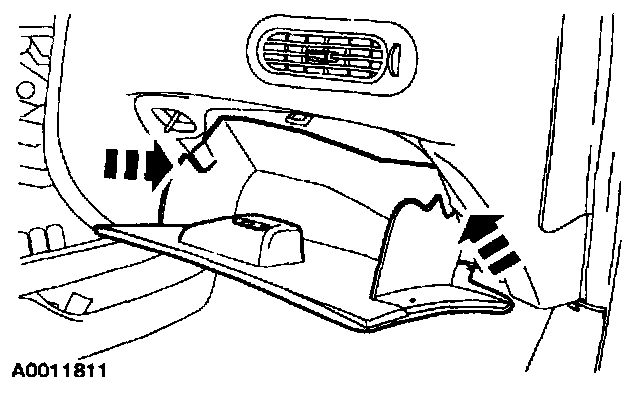

3. Open the glove compartment. Pressing the tabs inward, lower the glove compartment towards the floor.
4. Remove the screw.
5. Remove the screw.

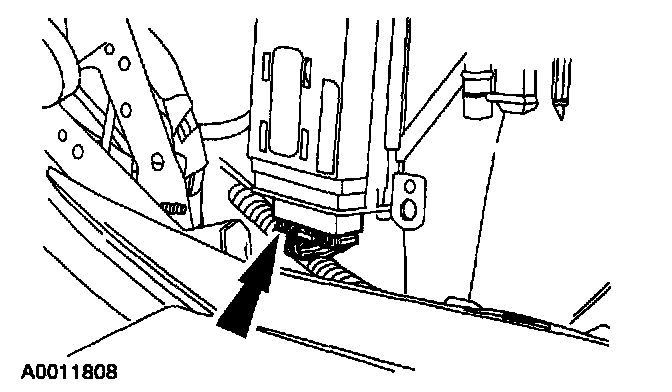

6. Disconnect the remote climate control module electrical connector.
7. Remove the two nuts. Disconnect the plenum vacuum harness. Remove the RCC module.
INSTALLATION
1. To install, reverse the removal procedure.
1. Remove the integrated control panel.
2. Remove the right-side lower instrument panel insulator.
3. Open the glove compartment. Pressing the tabs inward, lower the glove compartment towards the floor.
4. Remove the screw.
5. Remove the screw.
6. Disconnect the remote climate control module electrical connector.
7. Remove the two nuts. Disconnect the plenum vacuum harness. Remove the RCC module.
INSTALLATION
1. To install, reverse the removal procedure.
