2022 Mazda 3 BaseFACTORY OEM SERVICE PROCEDURE

Except Engine Compartment

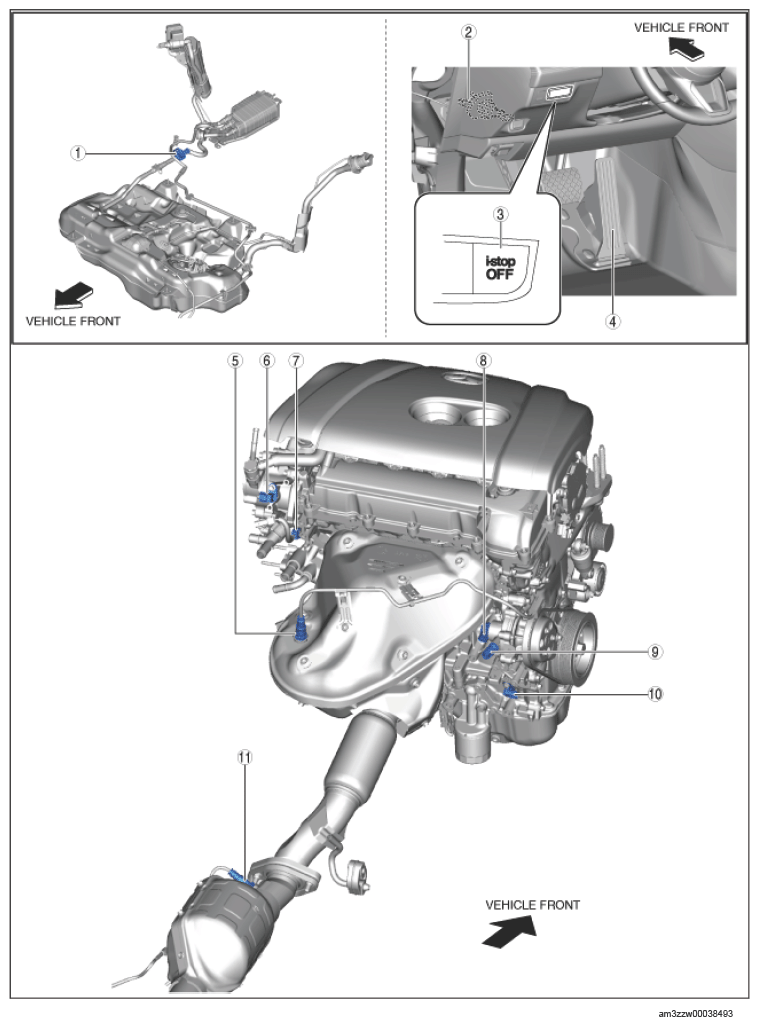

G14579890Courtesy of MAZDA MOTORS CORP.
PART DESCRIPTION

Component no. Refer to
1 Fuel tank pressure sensor
(See FUEL TANK PRESSURE SENSOR INSPECTION .)
(See FUEL TANK PRESSURE SENSOR REMOVAL/INSTALLATION .)
2 Clutch stroke sensor (MTX)
(See CLUTCH STROKE SENSOR INSPECTION .)
3 i-stop OFF switch (Vehicle with i-stop)
(See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION .)
(See ACCELERATOR PEDAL POSITION (APP) SENSOR REMOVAL/INSTALLATION .)
4 APP sensor
(See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION .)
(See ACCELERATOR PEDAL POSITION (APP) SENSOR REMOVAL/INSTALLATION .)
5 A/F sensor
(See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION .)
(See AIR FUEL RATIO (A/F) SENSOR INSPECTION .)
6 Exhaust CMP sensor
(See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION .)
(See CAMSHAFT POSITION (CMP) SENSOR INSPECTION .)
7 ECT sensor No. 2
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION .)
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION .)
8 Engine oil temperature sensor/Engine oil pressure sensor
(See ENGINE OIL TEMPERATURE SENSOR/ENGINE OIL PRESSURE SENSOR REMOVAL/INSTALLATION .)
(See ENGINE OIL TEMPERATURE SENSOR INSPECTION .)
(See ENGINE OIL PRESSURE SENSOR INSPECTION .)
9 ECT sensor No. 1
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION .)
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION .)
10 CKP sensor
(See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION .)
(See CRANKSHAFT POSITION (CKP) SENSOR INSPECTION .)
11 HO2S
(See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION .)
(See HEATED OXYGEN SENSOR (HO2S) INSPECTION .)
