2022 Mazda 3 BaseFACTORY OEM SERVICE PROCEDURE

Crankshaft Position (CKP) Sensor Removal/Installation

Replacement Part

O-ring
Quantity: 1
Location of use: CKP sensor

Oil and Chemical Type

Engine oil
Type: Recommended oil
CAUTION:
  • If foreign matter such as metal shaving adhere to the CKP sensor, it can cause abnormal output from the sensor because of flux turbulence, which can negatively affect the engine control. Verify that there is no foreign matter on the CKP sensor when replacing.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
  2. Lift up the vehicle.
  3. Remove the following parts for easier access.
    1. Service hole cover (installed to front under cover No. 2) used to remove the oil filter (See OIL FILTER REPLACEMENT .)
    2. Front splash shield (RH) (See SPLASH SHIELD REMOVAL/INSTALLATION .)
  4. Disconnect the CKP sensor connector.
  5. Remove the clip.
  6. Remove the CKP sensor.

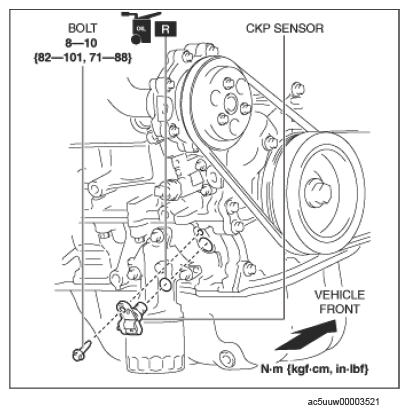

    Fig 1: CKP Sensor Bolt With Torque Specification
    G14579893Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
