2021 Mazda MX-5 Miata Club, Automatic TransFACTORY OEM SERVICE PROCEDURE

Control System Location Index

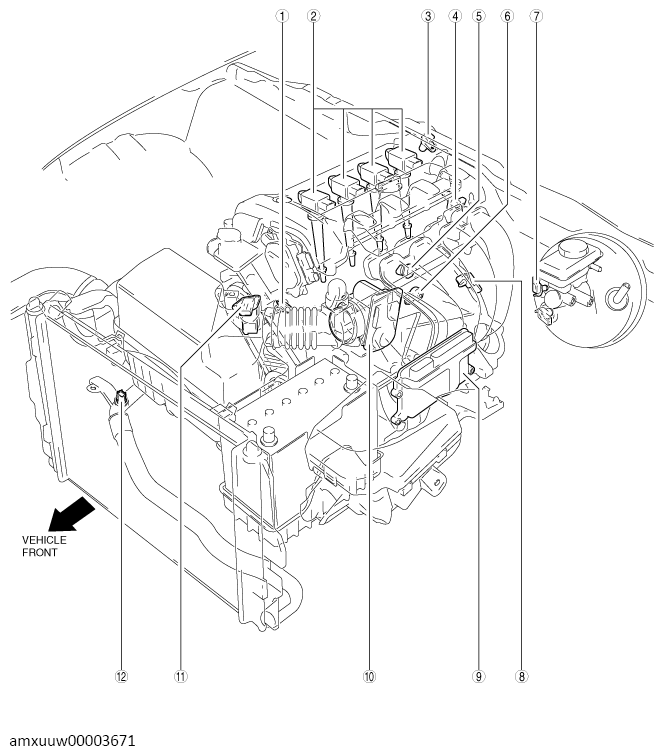

G13488453Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 ECT sensor No. 1
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION .)
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION .)
2 Ion sensor
(See ION SENSOR REMOVAL/INSTALLATION .)
(See ION SENSOR INSPECTION .)
3 Exhaust CMP sensor
(See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION .)
(See CAMSHAFT POSITION (CMP) SENSOR INSPECTION .)
4 Intake CMP sensor
(See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION .)
(See CAMSHAFT POSITION (CMP) SENSOR INSPECTION .)
5 Fuel pressure sensor
(See FUEL PRESSURE SENSOR REMOVAL/INSTALLATION .)
(See FUEL PRESSURE SENSOR INSPECTION .)
6 KS
(See KNOCK SENSOR (KS) REMOVAL/INSTALLATION .)
(See KNOCK SENSOR (KS) INSPECTION .)
7 Vacuum sensor 2
(See VACUUM SENSOR 2 INSPECTION .)
8 MAP sensor/IAT sensor No. 2
(See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO. 2 REMOVAL/INSTALLATION .)
(See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR INSPECTION .)
(See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION .)
9 PCM (BARO sensor)
(See PCM REMOVAL/INSTALLATION .)
(See PCM INSPECTION .)
(See PCM CONFIGURATION (USING READ/WRITE FUNCTION) .)
(See PCM CONFIGURATION (USING AS-BUILT DATA) .)
(See BAROMETRIC PRESSURE (BARO) SENSOR REMOVAL/INSTALLATION .)
(See BAROMETRIC PRESSURE (BARO) SENSOR INSPECTION .)
10 TP sensor
(See THROTTLE POSITION (TP) SENSOR REMOVAL/INSTALLATION .)
(See THROTTLE POSITION (TP) SENSOR INSPECTION .)
11 MAF sensor/IAT sensor No. 1
(See MASS AIR FLOW (MAF) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO. 1 REMOVAL/INSTALLATION .)
(See MASS AIR FLOW (MAF) SENSOR INSPECTION .)
(See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION .)
12 ECT sensor No. 2 (U.S.A. and CANADA)
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION .)
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION .)

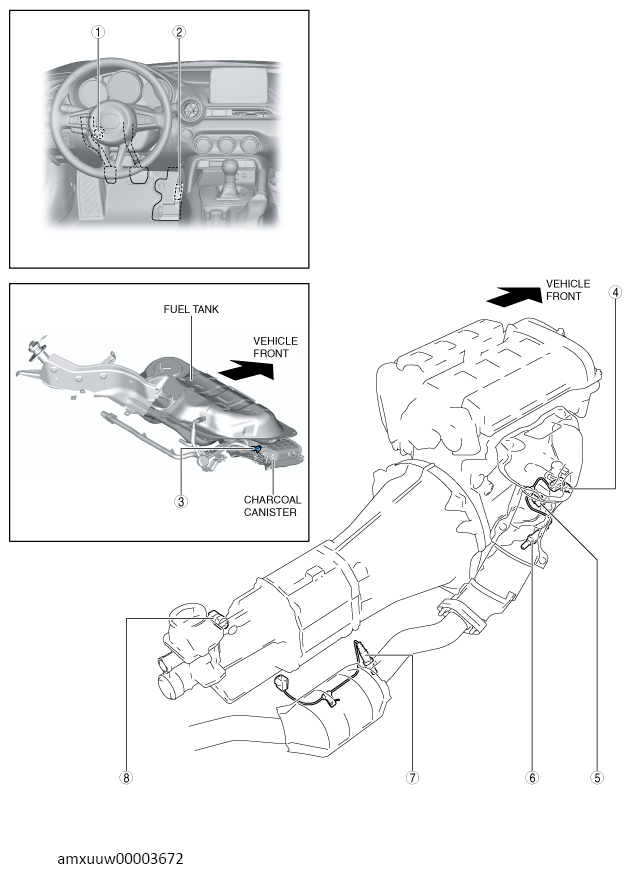

G13488455Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 CPP switch (MT)
(See CLUTCH PEDAL POSITION (CPP) SWITCH INSPECTION .)
2 APP sensor
(See ACCELERATOR PEDAL POSITION (APP) SENSOR REMOVAL/INSTALLATION .)
(See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION .)
3 Fuel tank pressure sensor (U.S.A. and CANADA)
(See FUEL TANK PRESSURE SENSOR REMOVAL/INSTALLATION .)
(See FUEL TANK PRESSURE SENSOR INSPECTION .)
4 Oil pressure switch
(See OIL PRESSURE SWITCH INSPECTION .)
5 CKP sensor
(See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION .)
(See CRANKSHAFT POSITION (CKP) SENSOR INSPECTION .)
6 A/F sensor
(See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION .)
(See AIR FUEL RATIO (A/F) SENSOR INSPECTION .)
7 HO2S
(See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION .)
(See HEATED OXYGEN SENSOR (HO2S) INSPECTION .)
8 Neutral switch (MT)
(See NEUTRAL SWITCH INSPECTION .)
