Front Door Glass Removal/Installation: Notes

Replacement part

1. Perform the front door glass preparation. (See FRONT DOOR GLASS PREPARATION .)
   NOTE:

   • Before removing the front door glass, the removal procedure for the front door glass installation bolt can be facilitated by adjusting the top of the front door glass to the position approx. 90 mm {3.5 in}away from the upper part of the front beltline molding.
2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
3. Remove the following parts:
   1. Front door speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION .)
   2. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
   3. Power window main switch (to remove from driver's side) (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
   4. Power window sub switch (front) (to remove from passenger's side) (See POWER WINDOW SUB SWITCH REMOVAL/INSTALLATION .)
   5. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION (US) .)
   6. Front inner handle (See INNER HANDLE REMOVAL/INSTALLATION .)

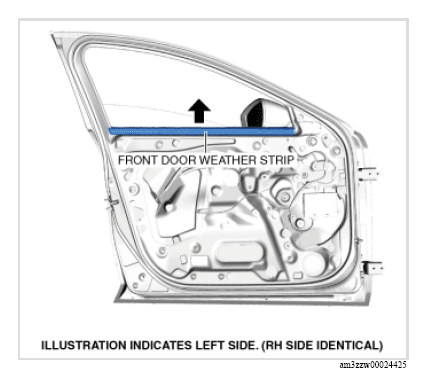

4. Remove the front door weatherstrip in the direction of the arrow shown in the figure by pulling it upward.

   Courtesy of MAZDA MOTORS CORP.

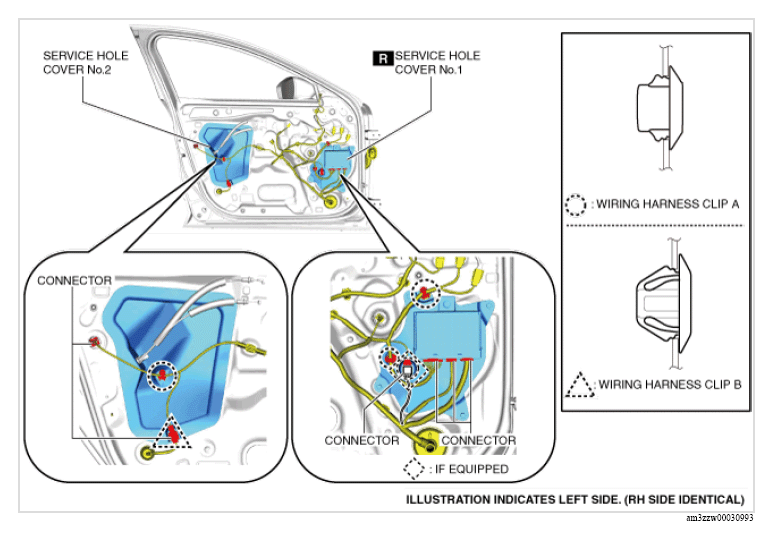

5. Disconnect the connectors.

   Courtesy of MAZDA MOTORS CORP.

6. Remove wiring harness clips A and B.

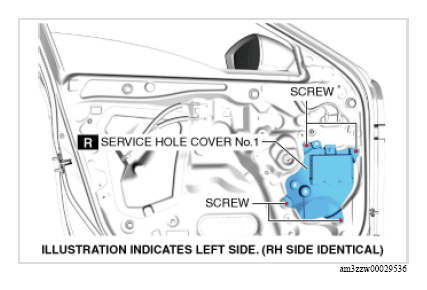

7. Remove the screws.

   Courtesy of MAZDA MOTORS CORP.

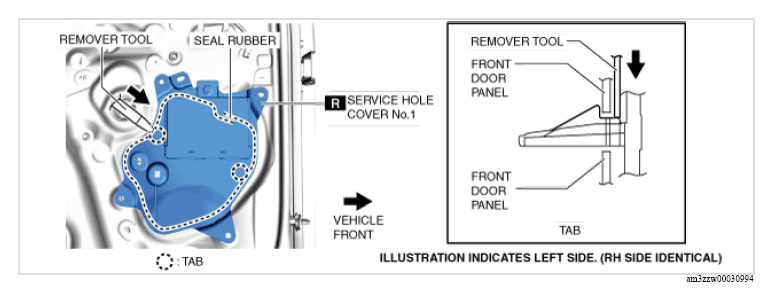

8. Insert a remover tool into the position shown in the figure, move it in the direction of the arrow, and detach the tabs from the front door panel.

   Courtesy of MAZDA MOTORS CORP.

9. Remove service hole cover No. 1.
10. Remove the grommet.

    Courtesy of MAZDA MOTORS CORP.

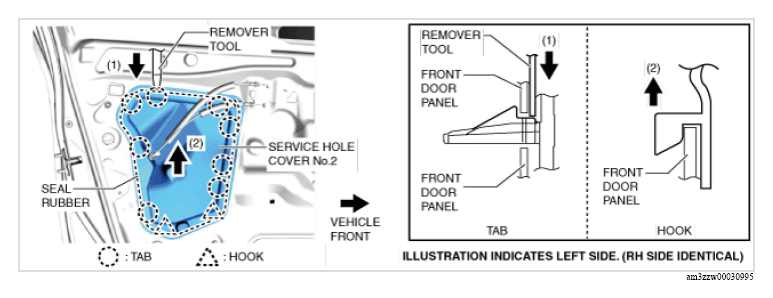

11. Insert a remover tool into the position shown in the figure, move it in the direction of arrow (1), and detach the tabs from the front door panel.

    Courtesy of MAZDA MOTORS CORP.

12. Lift service hole cover No. 2 in the direction of arrow (2) shown in the figure and detach the hooks from the front door panel.
13. Remove the grommet.

    Courtesy of MAZDA MOTORS CORP.

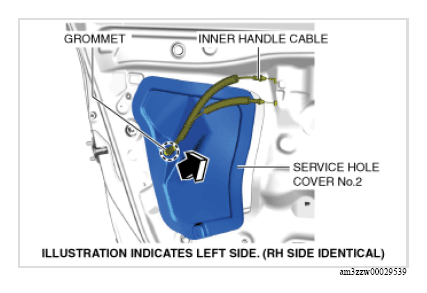

14. Move service hole cover No. 2 in the direction of the arrow shown in the figure and remove it while pulling out the inner handle cable.

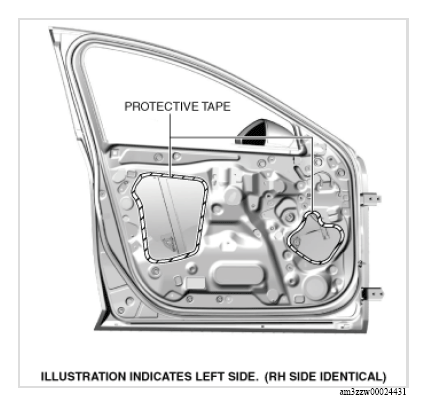

15. Apply protective tape to the edge part of the service hole cover installation holes to prevent injury.

    Courtesy of MAZDA MOTORS CORP.

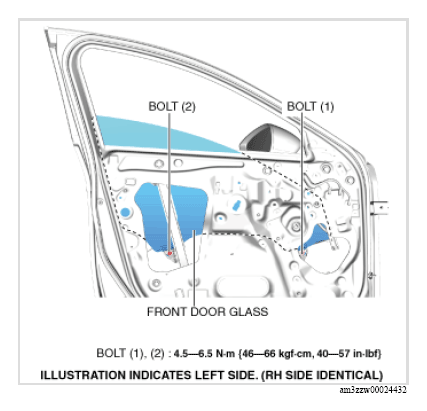

16. Remove the bolts shown in the figure in the order of (1) and (2).
    Fig 1: Front Door Glass Bolts With Torque Specification

    Courtesy of MAZDA MOTORS CORP.
