2021 Mazda 3 BaseFACTORY OEM SERVICE PROCEDURE
Power Window Main Switch Removal/Installation
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)

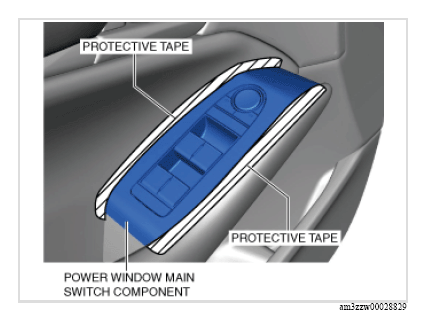

- Affix the protective tape to the position shown in the figure to prevent scratches and damage.

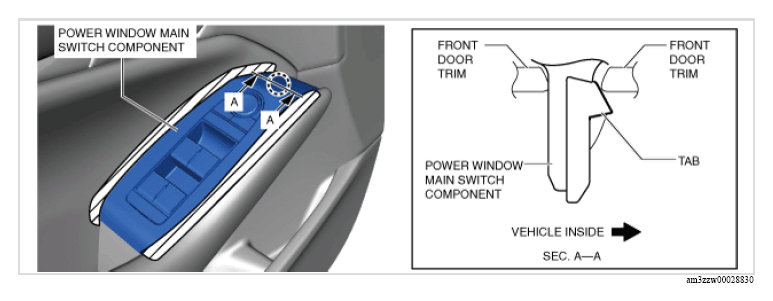

- Using a remover tool, remove the tab shown in the figure.

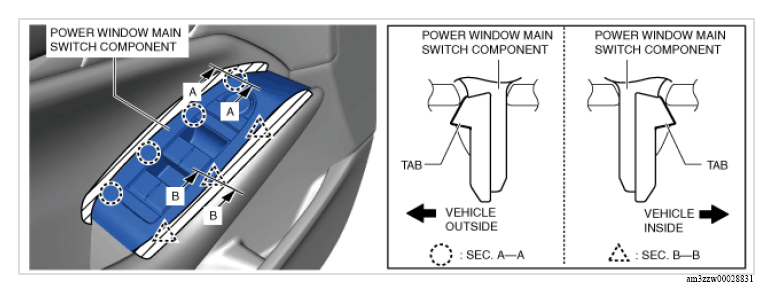

- Using a remover tool, remove the tabs shown in the figure.

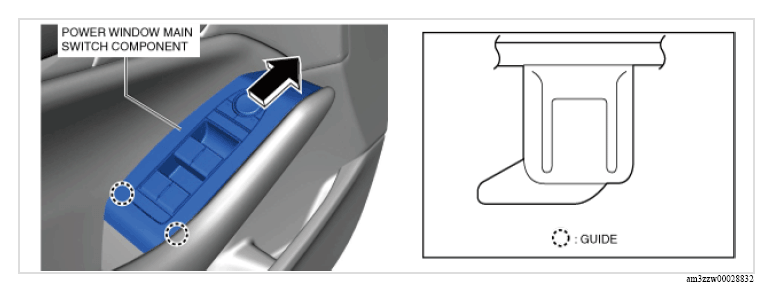

- Move the power window main switch component in the direction of the arrow and detach the guides.

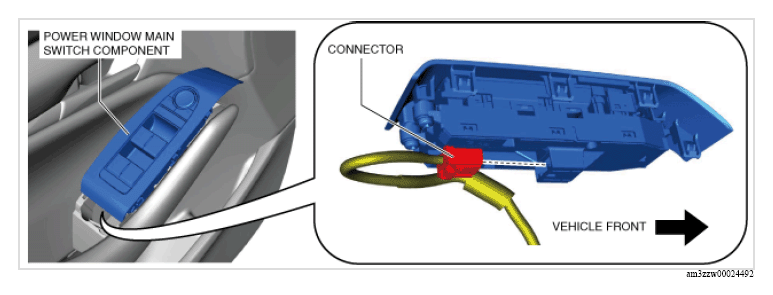

- Disconnect the connector.
- Remove the power window main switch component from the front door trim.

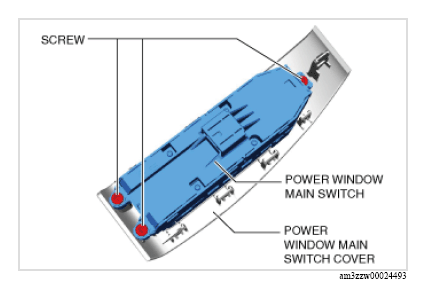

- Remove the screws.
- Remove the power window main switch from the power window main switch cover.
- Install in the reverse order of removal.
