2021 Mazda 3 BaseFACTORY OEM SERVICE PROCEDURE
Common Procedure: Notes
- Perform the front door glass preparation. (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove the following parts:
- Front door speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION .)
- Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
- Power window main switch (to remove from driver's side) (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
- Power window sub switch (front) (to remove from passenger's side) (See POWER WINDOW SUB SWITCH REMOVAL/INSTALLATION .)
- Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION (US) .)
- Front inner handle (See INNER HANDLE REMOVAL/INSTALLATION .)
- Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
- Sail garnish (See SAIL GARNISH REMOVAL/INSTALLATION .)
- Front beltline molding (See FRONT BELTLINE MOLDING REMOVAL/INSTALLATION .)
- Front door garnish (See FRONT DOOR GARNISH REMOVAL/INSTALLATION .)

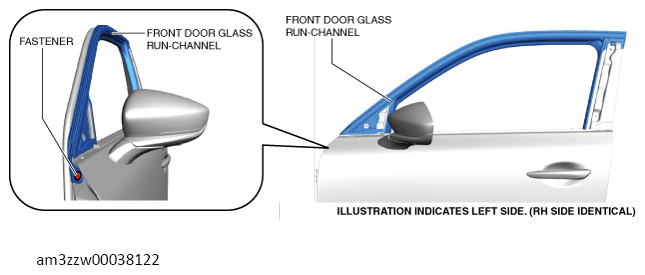

- Remove the fastener.
- Perform front door glass run-channel removal/installation according to the flow. (See FLOW .)
