2014 Mazda 5 TouringFACTORY OEM SERVICE PROCEDURE
Symptom Troubleshooting - Engine: Foreword

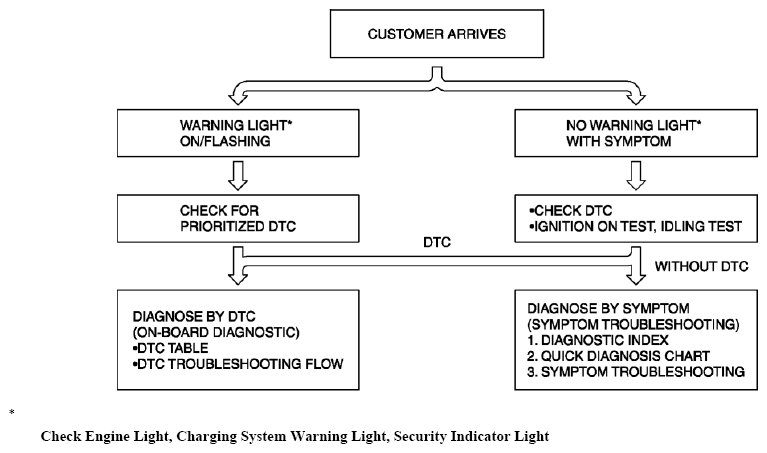

- When the customer reports a vehicle malfunction, check the check engine light indication and diagnostic trouble code (DTC), then diagnose the malfunction according to the following flow chart:
- If a DTC exists, diagnose the applicable DTC inspection. (See DTC TABLE .)
- If no DTC exists and the check engine light does not illuminate or flash, diagnose the applicable symptom troubleshooting. (See QUICK DIAGNOSTIC TABLE .)
