2008 Mazda 6 s Sport, 4D Hatchback, StandardFACTORY OEM SERVICE PROCEDURE

Oil Seal, Inner Guide Disassembly Note

  1. Set the SSTsΒ  into the valve side.
  2. Install the SSTΒ  to the gear housing.
  3. Press out the oil seal and inner guide.

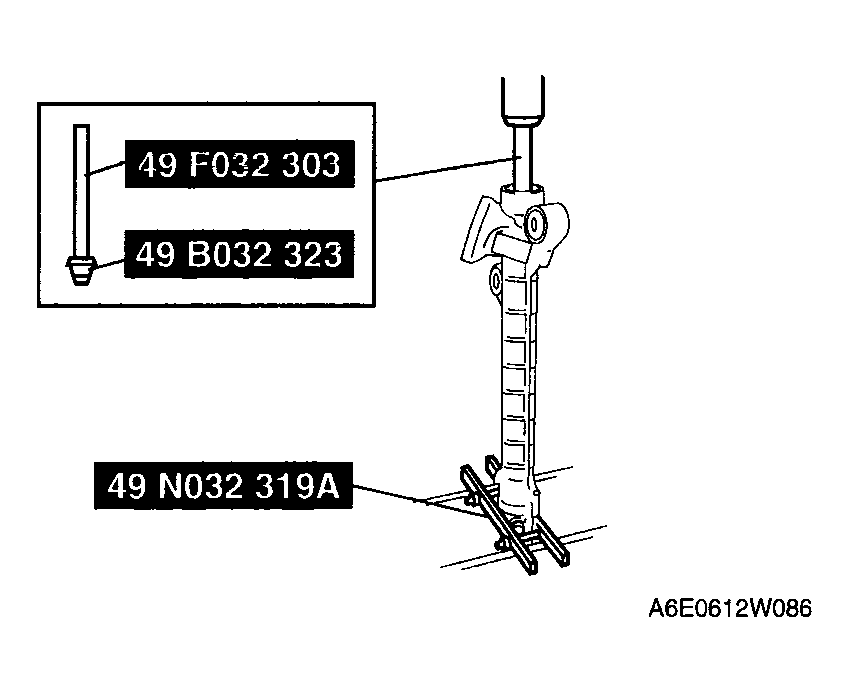

    Fig 1: Removing Oil Seal And Inner Guide
    G04326549Courtesy of MAZDA MOTORS CORP.
