System Specifications

Cylinder head





Install the cylinder head and the new bolts. Tighten the bolts in the sequence shown in five stages.
Stage 1 Tighten to 5 Nm (44 inch lbs.).
Stage 2 Tighten to 15 Nm (11 ft. lbs.).
Stage 3 Tighten to 45 Nm (33 ft. lbs.).
Stage 4 Tighten an additional 90 degrees (1/4 turn).
Stage 5 Tighten an additional 90 degrees (1/4 turn ).






Intake Manifold


Camshaft Bearing Cap





Tighten the bolts in the sequence shown in three stages.
Stage 1 Tighten the camshaft bearing caps one turn at a time until tight.
Stage 2 Tighten the bolts to 7 Nm (62 inch lbs.)
Stage 3 Tighten the bolts to 16 Nm (12 ft. lbs.)


Crankshaft Pulley
Using the special tools to hold the crankshaft pulley in place, tighten the crankshaft pulley bolt in two stages.
Stage 1 Tighten to 100 Nm (74 ft. lbs.)
Stage 2 Rotate an additional 90 degrees (1/4 turn)


Flywheel or Flexplate





Tighten the bolts in the sequence shown in three stages.
Stage 1 Tighten to 50 Nm (37 ft. lbs.)
Stage 2 Tighten to 80 Nm (59 ft. lbs.)
Stage 3 Tighten to 112 Nm (83 ft. lbs.)

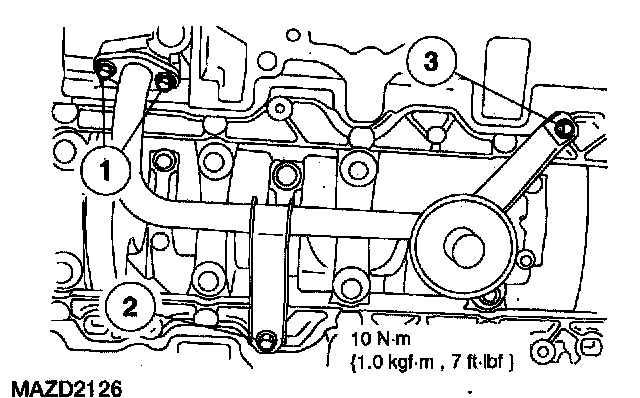

Oil Pump





Tighten the bolts in the sequence shown in two stages.
Stage 1 Tighten to 10 Nm (89 inch lbs.)
Stage 2 Tighten to 20 Nm (15 ft. lbs.)


Exhaust Manifold
Tightening Torque 54 Nm (5.51 kgf-m, 40 ft. lbs.)






Water Pump
