2007 Mazda B2300 L4-2.3LFACTORY OEM SERVICE PROCEDURE
Oil Pump, Engine

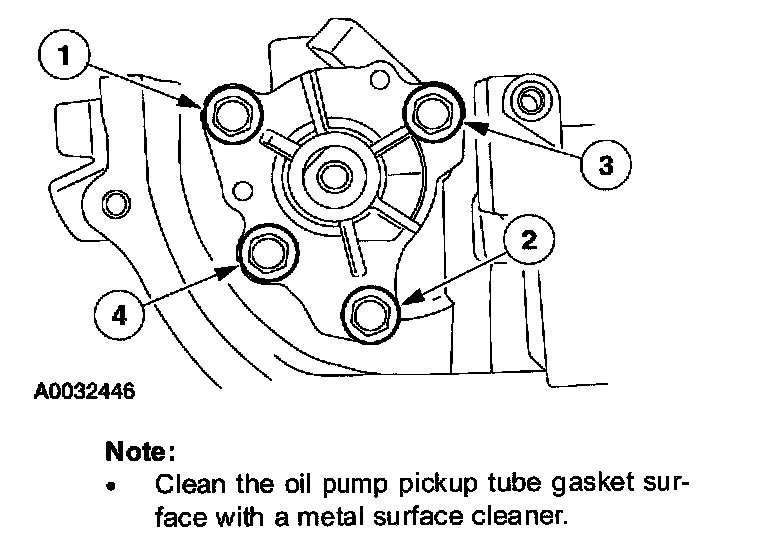

Oil pump torque and sequence
Install a new gasket and the oil pump assembly. Tighten the bolts in the sequence shown in two stages.
Stage 1: Tighten the bolts to 10 Nm (1.0 kgf-cm, 80 inch lbs.)
Stage 2: Tight the bolts to 20 Nm (2.0 kgf-cm, 15 ft. lbs.)
Install a new gasket and the oil pump assembly. Tighten the bolts in the sequence shown in two stages.
Stage 1: Tighten the bolts to 10 Nm (1.0 kgf-cm, 80 inch lbs.)
Stage 2: Tight the bolts to 20 Nm (2.0 kgf-cm, 15 ft. lbs.)
