2007 Mazda B2300 L4-2.3LFACTORY OEM SERVICE PROCEDURE
Mode 6 Data
Diagnostic Monitoring Test Results
The purpose of this test mode is to allow access to the results of OBD II monitor diagnostic test results. The test values that are stored at the time of the particular monitor completion are displayed when the particular test identification is requested. See the table for test information.
DIAGNOSTIC MONITORING TEST RESULTS TABLE
The conversion is done as follows: If the value is > 32767 then complement (change 0's to 1's and 1's to 0's), add 1 and a negative sign.
The purpose of this test mode is to allow access to the results of OBD II monitor diagnostic test results. The test values that are stored at the time of the particular monitor completion are displayed when the particular test identification is requested. See the table for test information.

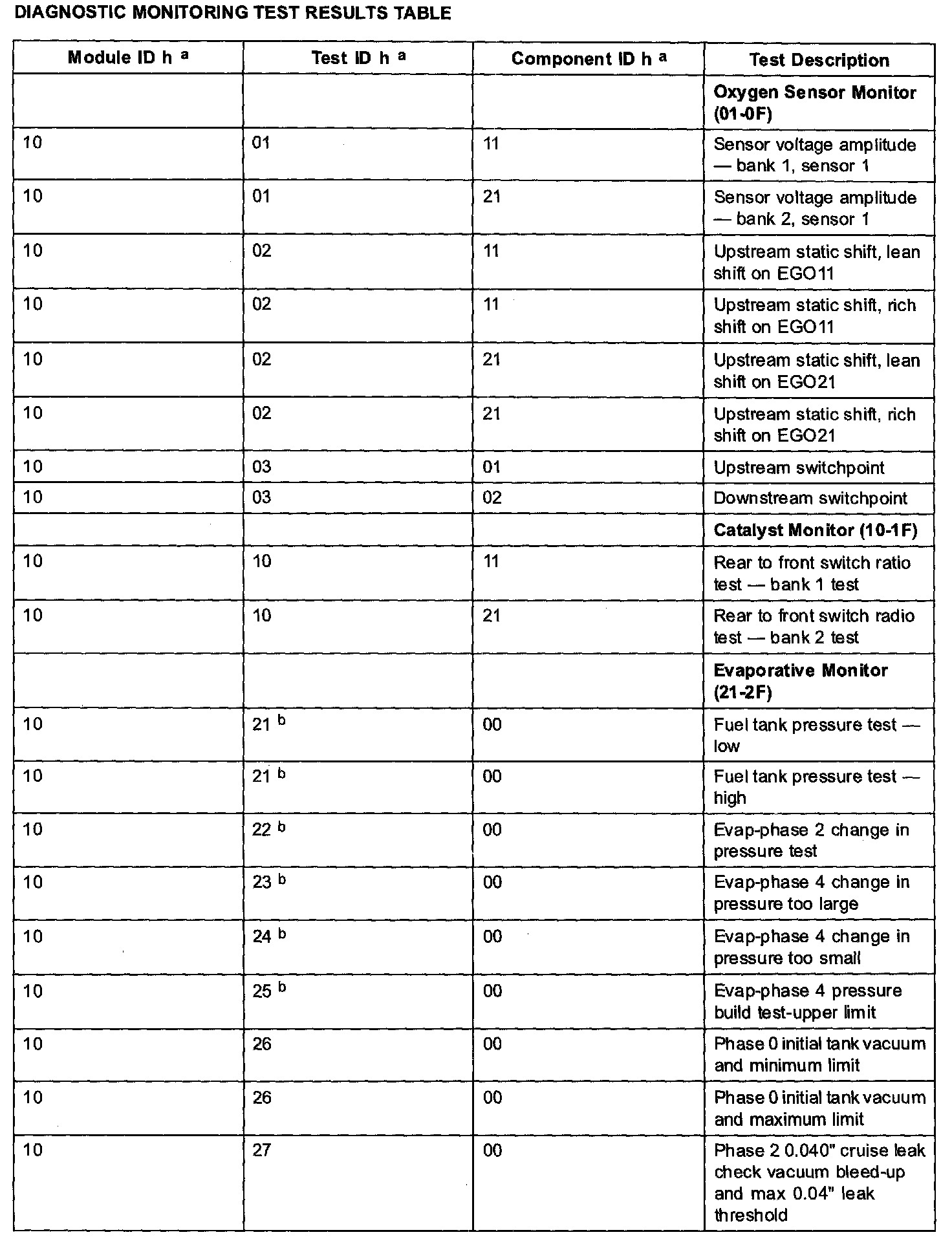

Diagnostic Monitoring Test Results Table (Part 1):
Diagnostic Monitoring Test Results Table (Part 2):
Diagnostic Monitoring Test Results Table (Part 3):
DIAGNOSTIC MONITORING TEST RESULTS TABLE
The conversion is done as follows: If the value is > 32767 then complement (change 0's to 1's and 1's to 0's), add 1 and a negative sign.
