2002 Lexus LX 470

Charging Systems: Generator: Reassembly

2002 Lexus LX 470SECTION Reassembly

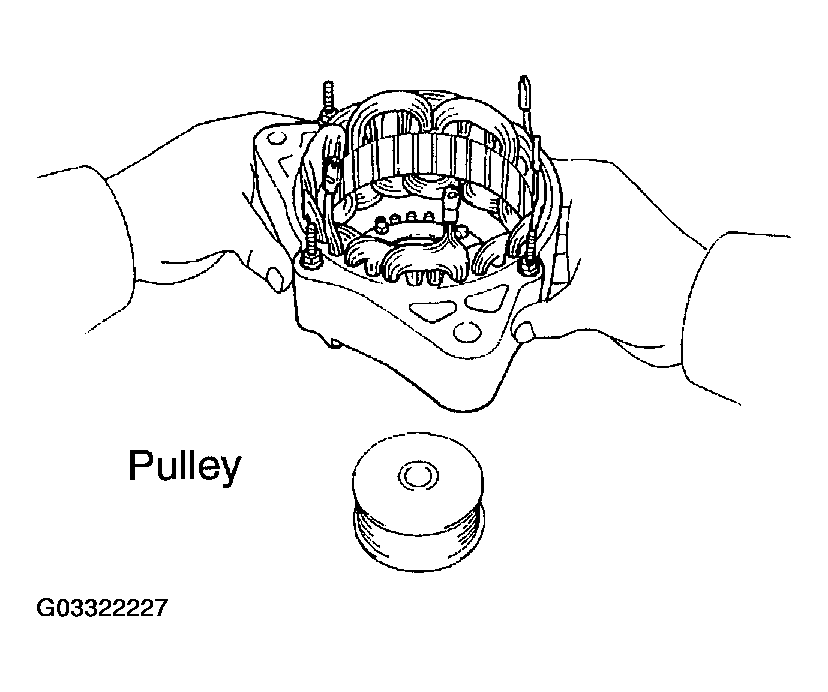

PLACE DRIVE END FRAME ON PULLEY
INSTALL ROTOR TO DRIVE END FRAME

Fig 1: Installing Rotor To Drive End Frame
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL RECTIFIER END FRAME

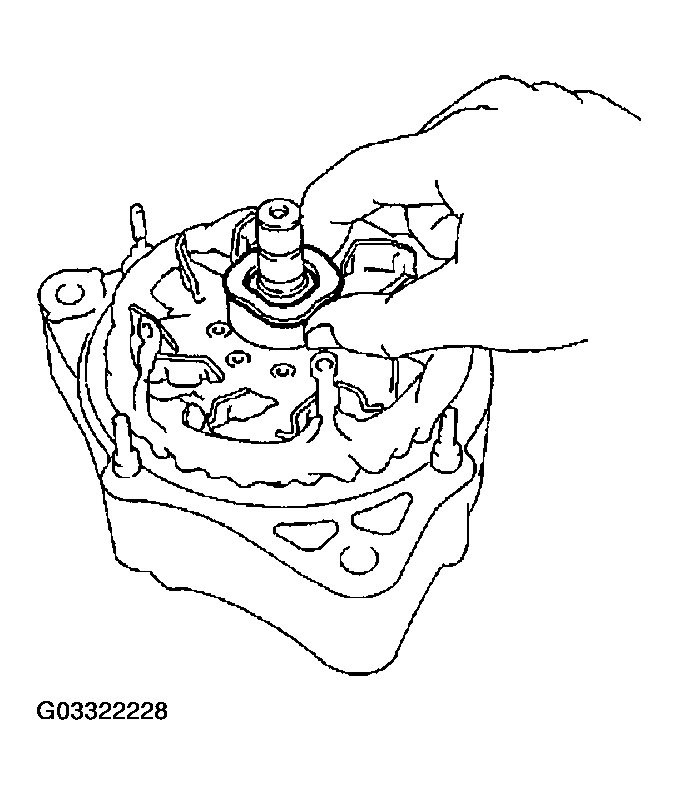

1. Place the generator washer on the rotor.

  Fig 2: Placing Generator Washer On Rotor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

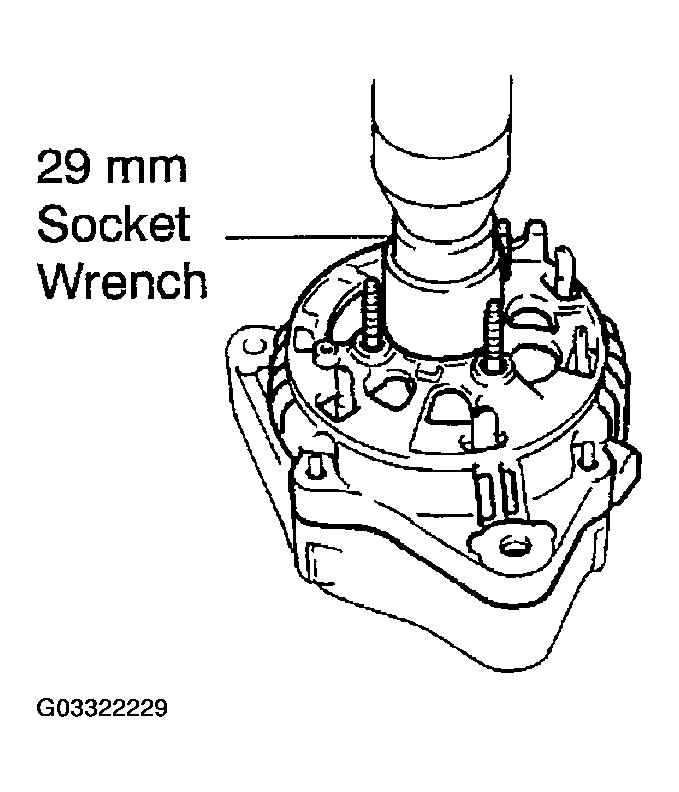

2. Using a 29 mm socket wrench and press, slowly press in the rectifier end frame.

  Fig 3: Pressing In Rectifier End Frame
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

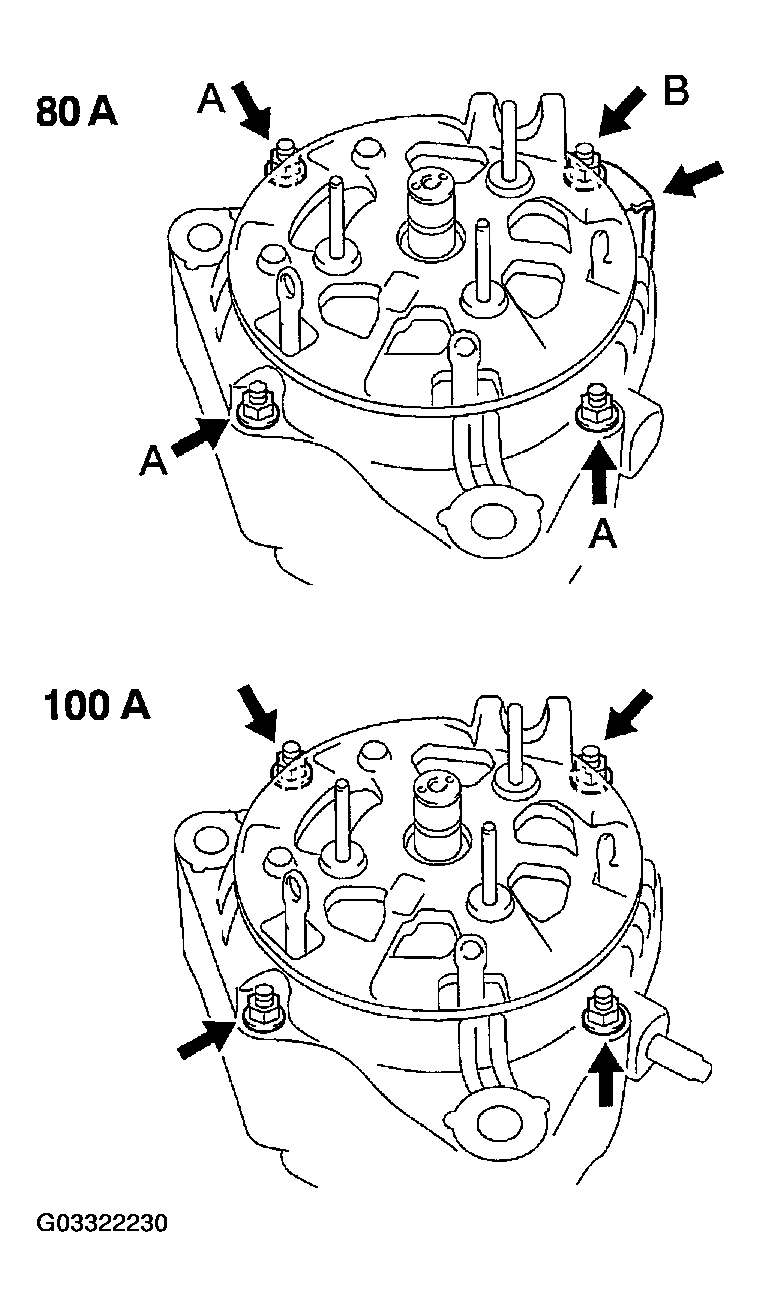

3. 80 A:
  Install the cord clip and 4 nuts.

  Fig 4: Installing Cord Strip And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque:

  A: 4.5 N.m (46 kgf.cm, 40 in.lbf)

  B: 5.4 N.m (55 kgf.cm, 48 in.lbf)
4. 100 A:
  Install the 4 nuts.

  Torque: 4.5 N.m (46 kgf.cm, 40 in.lbf)
INSTALL PULLEY
1. Install the pulley to the rotor shaft by tightening the pulley nut by hand.

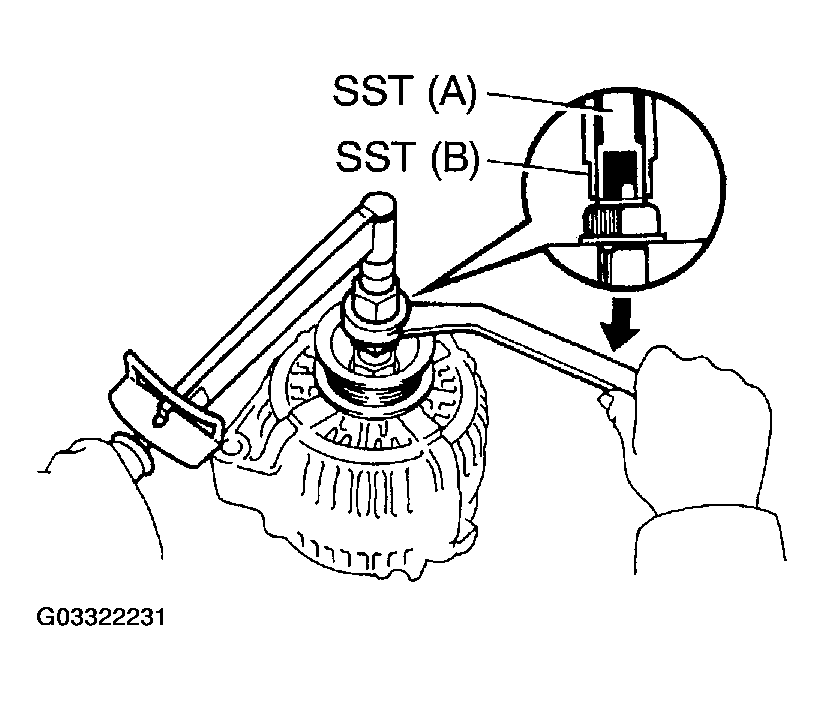

2. Hold SST (A) with a torque wrench, and tighten SST (B) clockwise to the specified torque.
  SST 09820-63011

  Torque: 39 N.m (400 kgf.cm, 29 ft.lbf)
3. Check that SST (A) is secured to the pulley shaft.

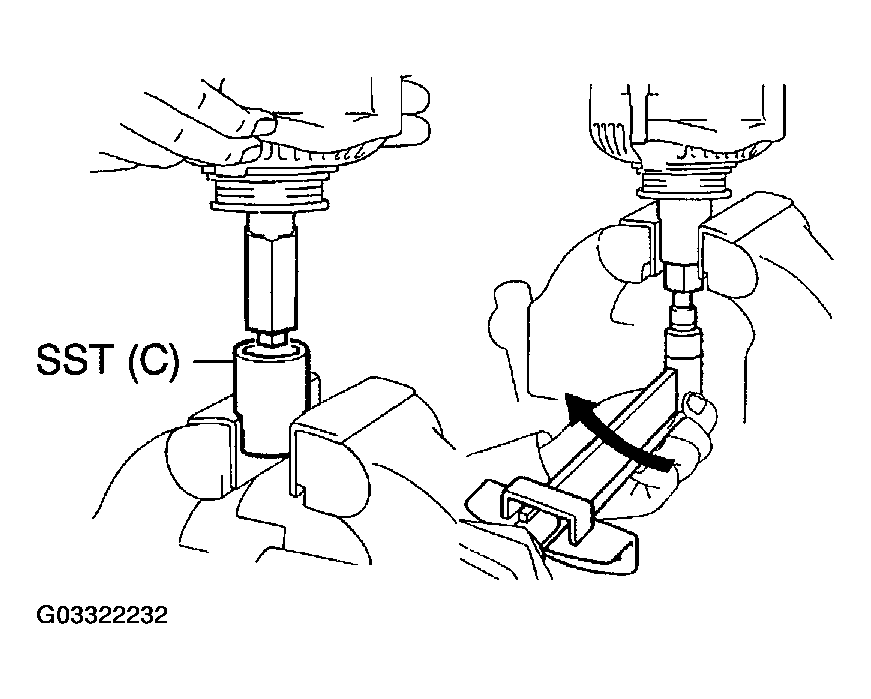

4. As shown in Fig 6, mount SST (C) in a vise, and install the generator to SST (C).
5. To torque the pulley nut, turn SST (A) in the direction shown in the illustration.
  Torque: 110.5 N.m (1,128 kgf.cm, 81 ft.lbf)
6. Remove the generator from SST (C).
7. Turn SST (B), and remove SST (A and B).
INSTALL RECTIFIER HOLDER

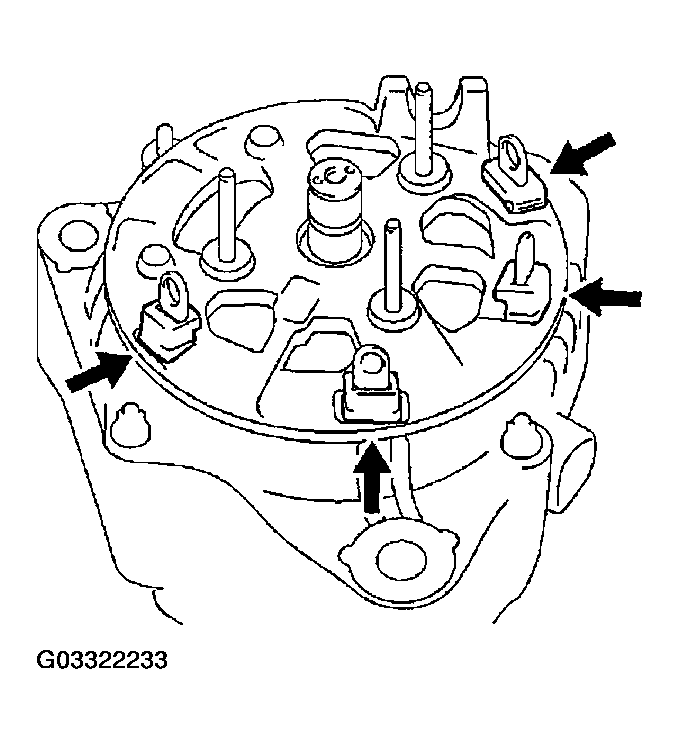

1. Install the 4 rubber insulators on the lead wires.

  Fig 7: Installing Rubber Insulators On Lead Wires
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

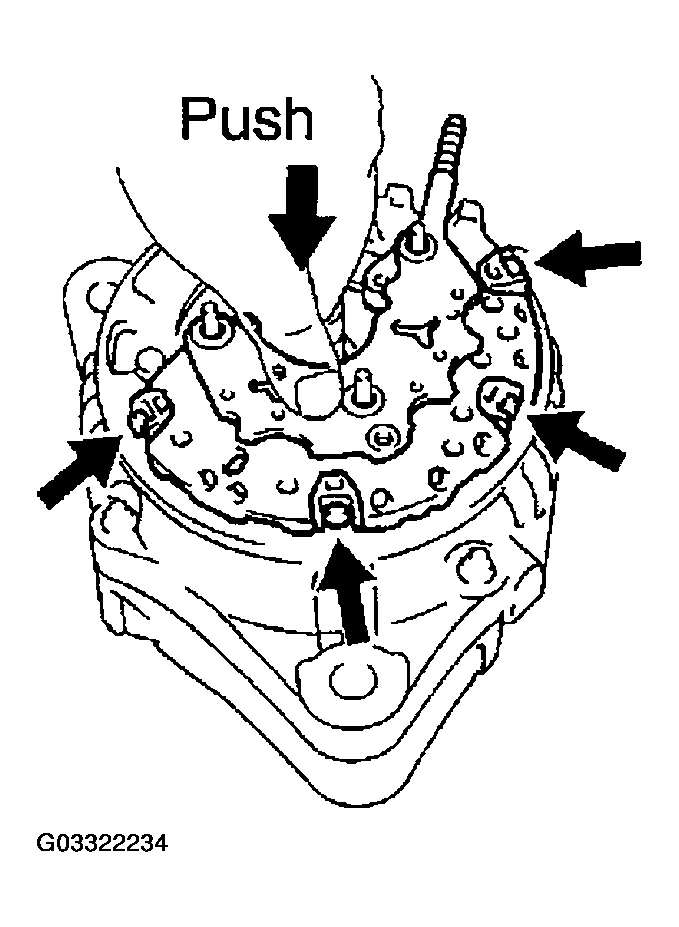

2. Install the rectifier holder while pushing it with the 4 screws.

  Fig 8: Installing Rectifier Holder (2 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 2.94 N.m (30 kgf.cm, 26 in.lbf)
INSTALL VOLTAGE REGULATOR AND BRUSH HOLDER

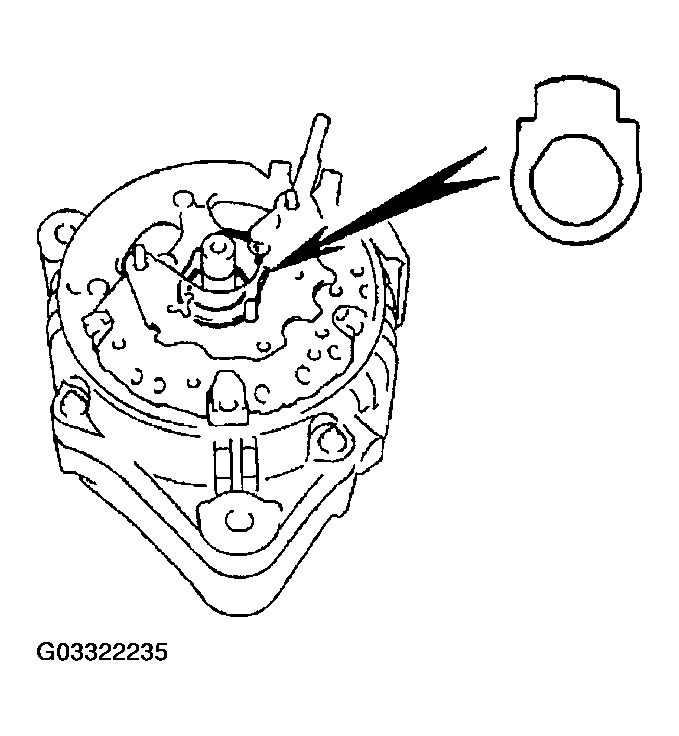

1. Place the seal plate on the rectifier end frame.

  Fig 9: Placing Seal Plate On Rectifier End Frame
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

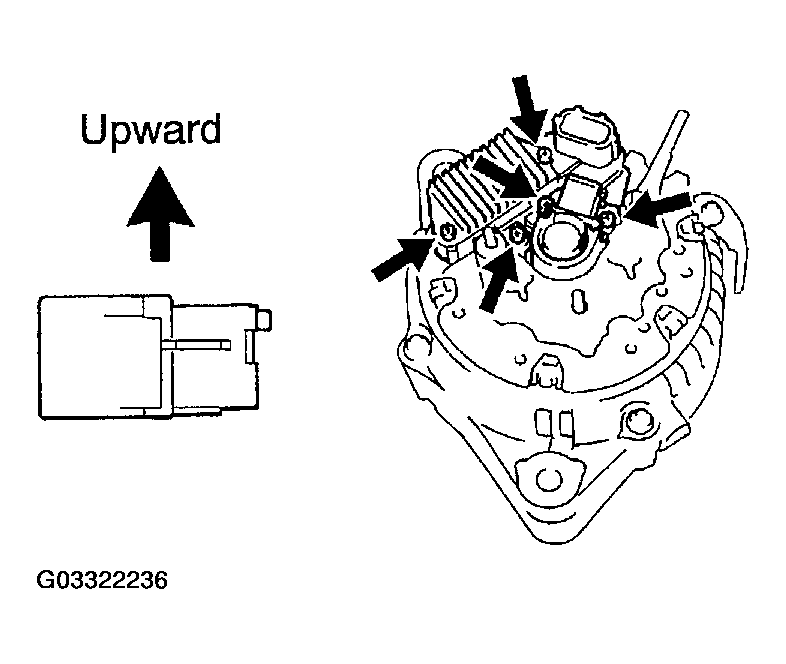

2. Place the voltage regulator and brush holder on the rectifier end frame.

  Fig 10: Installing Voltage Regulator And Brush Holder
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
