Charging Systems: Charging: Inspection

1. Check rotor for open circuit.

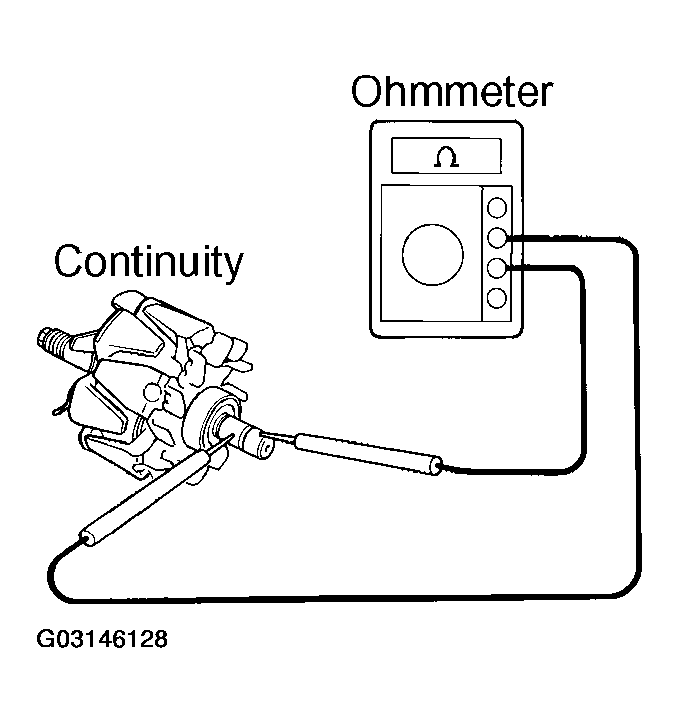

   Using an ohmmeter, check that there is continuity between the slip rings.

   Fig 1: Checking Continuity Between Slip Rings

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard resistance: 2.1 - 2.5 Ω at 20°C (68°F)

   If there is no continuity, replace the rotor.

2. Check the rotor for ground.

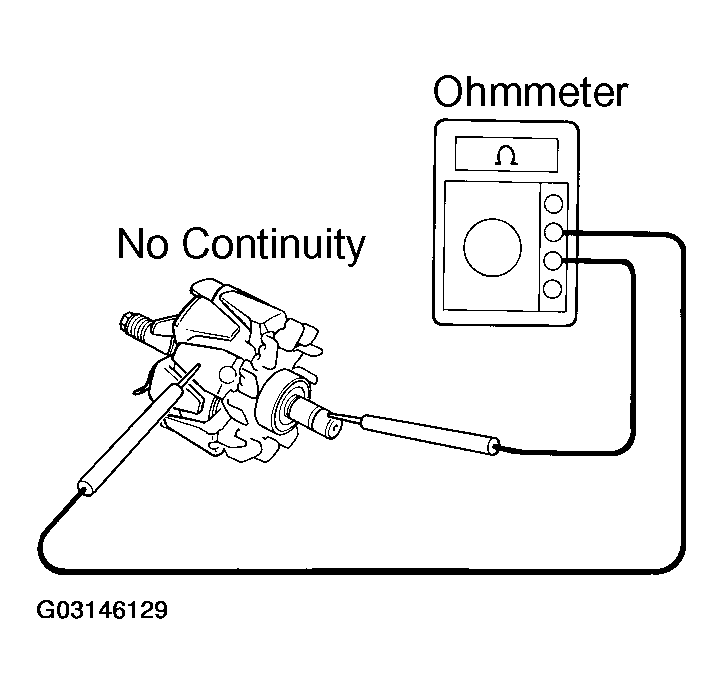

   Using an ohmmeter, check that there is no continuity between the slip ring and rotor.

   Fig 2: Checking Rotor For Ground

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   If there is continuity, replace the rotor.

3. Check that the slip rings are not rough or scored.

   If rough or scored, replace the rotor.

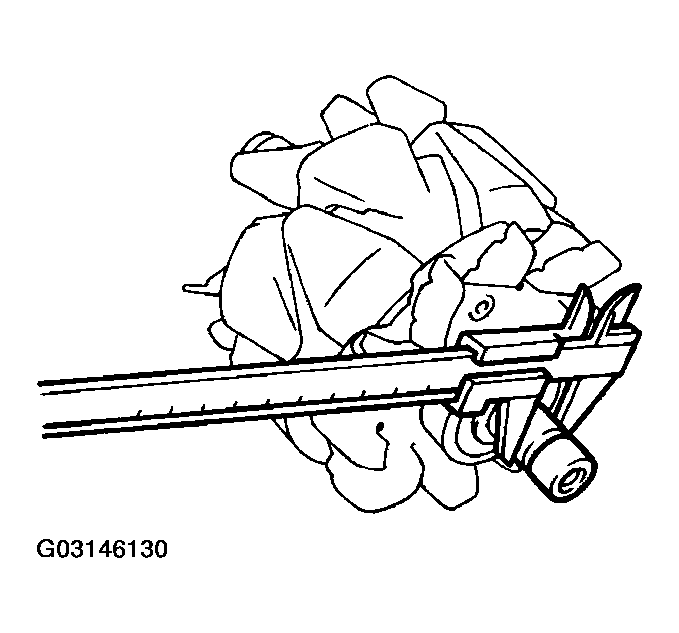

4. Using vernier calipers, measure the slip ring diameter.
   Fig 3: Measuring Slip Ring Diameter

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard diameter: 14.2 -14.4 mm (0.559 - 0.567 in.)

   Minimum diameter: 12.8 mm (0.504 in.)

If the diameter is less than minimum, replace the rotor.

1. Check the stator for open circuit.

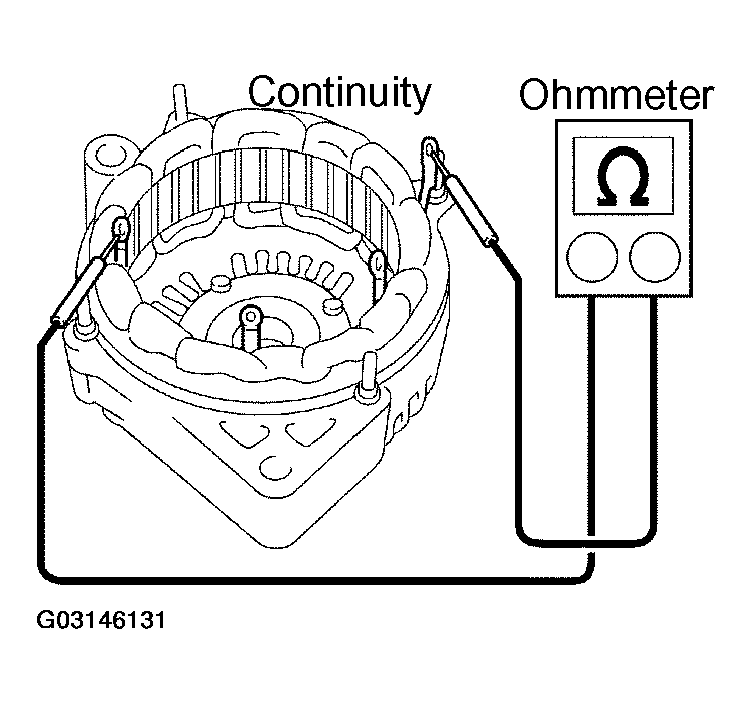

   Using an ohmmeter, check that there is continuity between the coil leads.

   Fig 4: Checking Continuity Between Coil Leads

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   If there is no continuity, replace the drive end frame assembly.

2. Check the stator for ground.

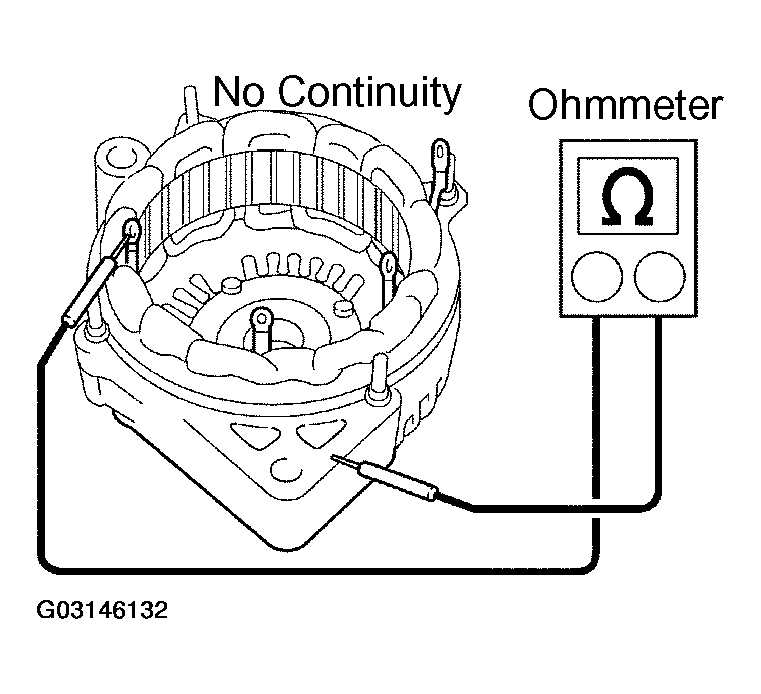

   Using an ohmmeter, check that there is no continuity between the coil lead and drive end frame.

   If there is continuity, replace the drive end frame assembly.

   Fig 5: Checking Stator For Ground

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

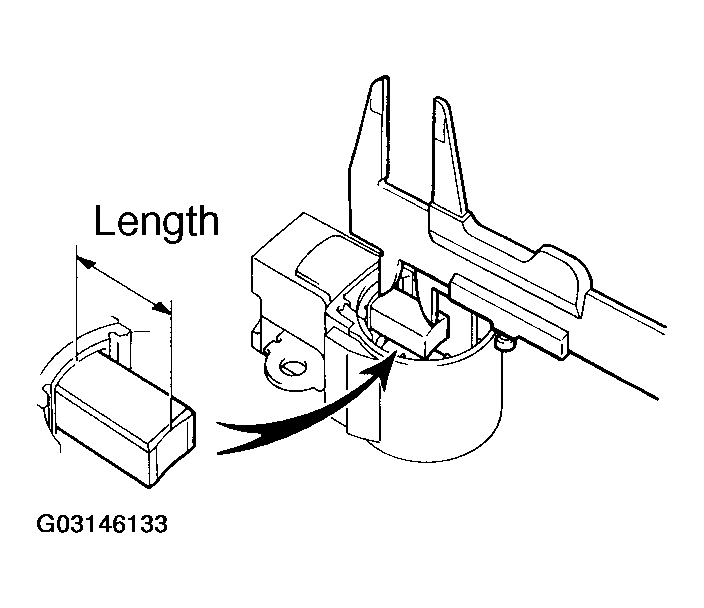

Using vernier calipers, measure the exposed brush length.

Standard exposed length:

9.5 - 11.5 mm (0.374 - 0.453 in.)

Minimum exposed length: 1.5 mm (0.059 in.)

If the exposed length is less than minimum, replace the brush holder assembly.

Fig 6: Measuring Exposed Brush Length

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check the positive (+) rectifier.

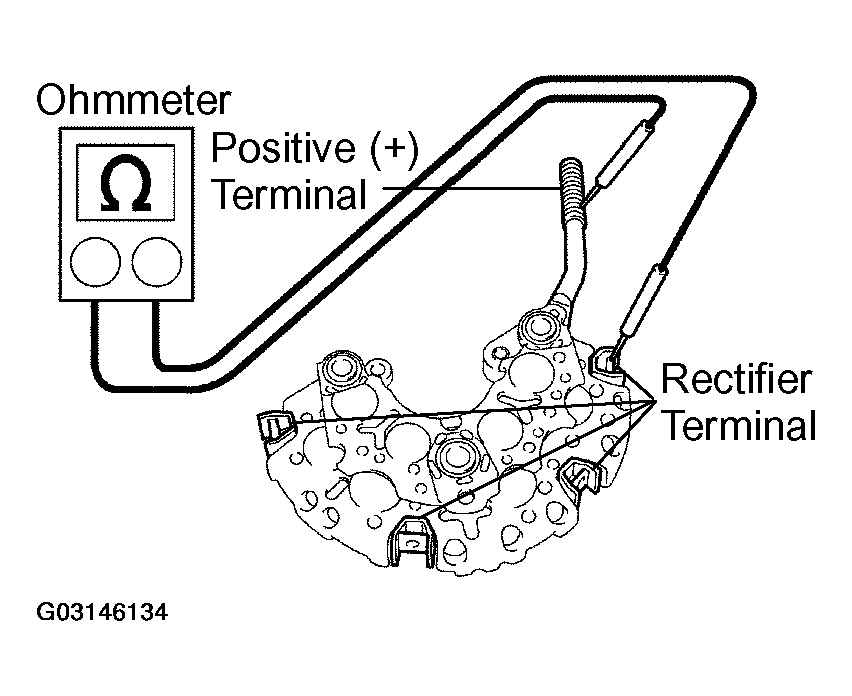

   1. Using an ohmmeter, connect one tester probe to the positive (+) terminal and the other to each rectifier terminal.
      Fig 7: Checking Positive (+) RectifierTerminal

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Reverse the polarity of the tester probes and repeat step (a).
      Fig 8: Checking Negative (-) Rectifier Terminal

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Check that one shows continuity and the other shows no continuity.

   If continuity is not as specified, replace the rectifier holder.

2. Check the negative (-) rectifier.

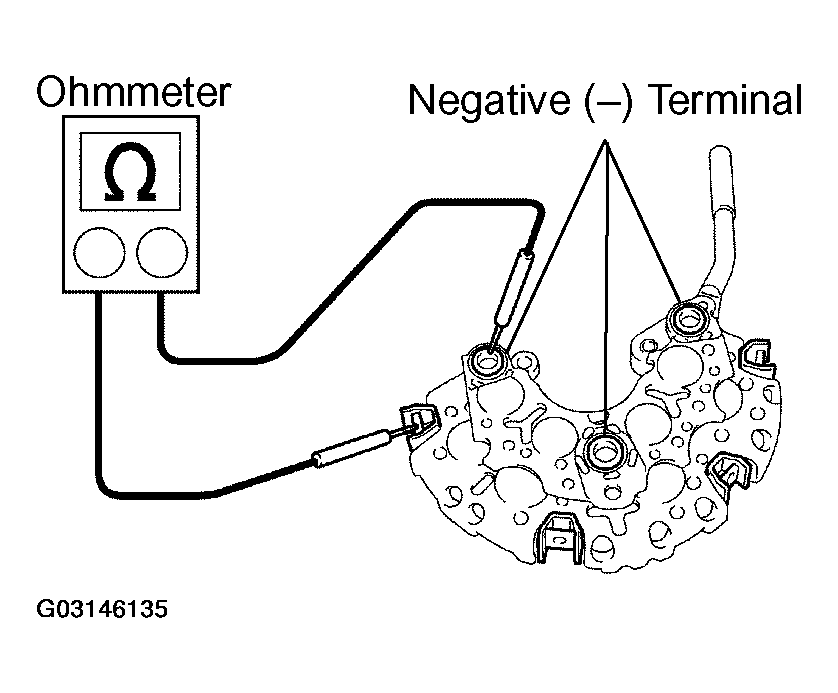

   1. Using an ohmmeter, connect one tester probe to each negative (-) terminal and the other to each rectifier terminal.
   2. Reverse the polarity of the tester probes and repeat step (a).
   3. Check that one shows continuity and the other shows no continuity.

If continuity is not as specified, replace the rectifier holder.

Check the bearing is not rough or worn.

If necessary, replace the bearing. See REPLACEMENT .
