Charging Systems: Charging: Replacement
- REPLACE FRONT BEARING

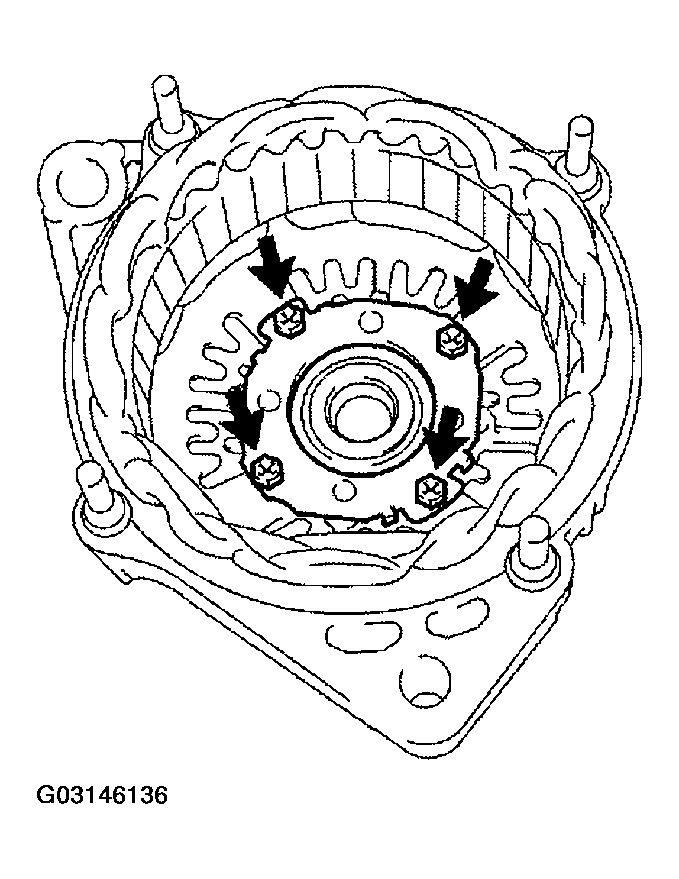

- Remove the 4 screws, bearing retainer and bearing.

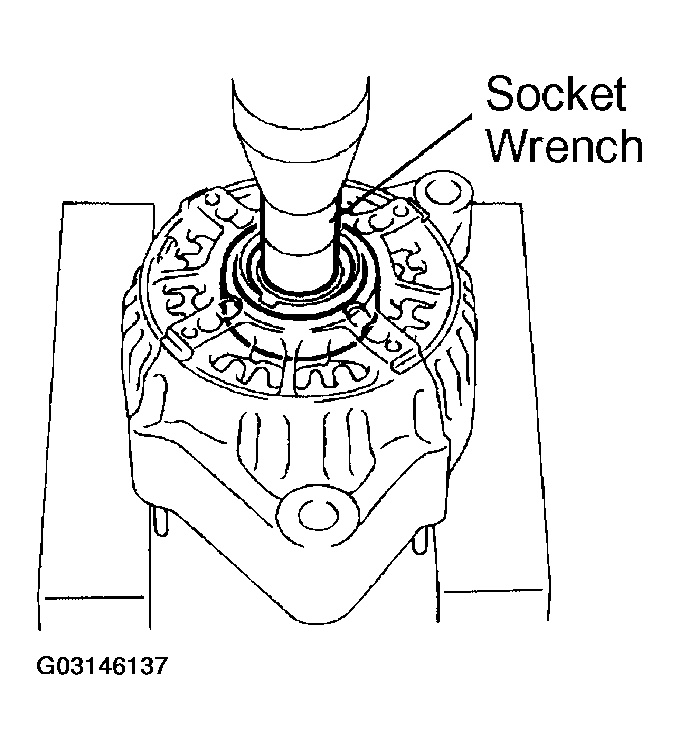

- Using a socket wrench and press, press out the bearing.
- Using SST and a press, press in a new bearing.
SST 09950-60010 (09951-00500)
- Install the bearing retainer with the 4 screws.
Torque: 3.0 N.m (31 kgf.cm 27 in.lbf)
- REPLACE REAR BEARING
- Using SST, remove the bearing cover (outside) and bearing.
SST 09820-00021
NOTE: Be careful not to damage the fan.
- Using SST, remove the bearing cover (outside) and bearing.
