2003 Land Rover Range RoverFACTORY OEM SERVICE PROCEDURE
Transfer Box Control Module Interface Drive Cycle Information
Transfer box control module interface monitoring drive cycle information for each DTC:
- P1700
Drive Cycle F - P1709
Drive Cycle F
NOTE:

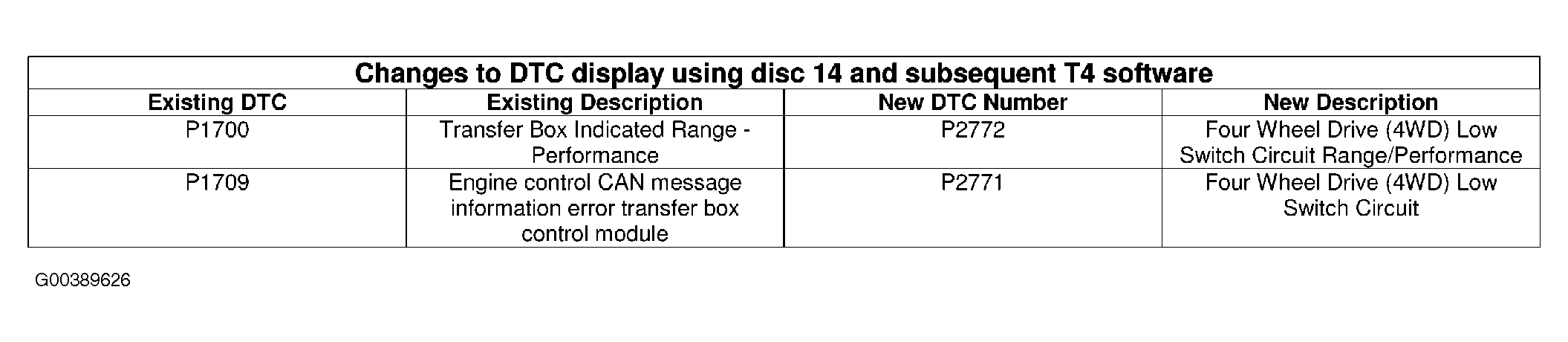

To provide compatibility with later 2005 model year DTCs, from disc 14 of the Range Rover TestBook/T4 diagnostic software, the DTCs in the following table will be displayed with new DTC numbers and descriptions. See Fig 1
.
If a standard scan tool is used then the original codes detailed above will be displayed.
