2003 Land Rover Range RoverFACTORY OEM SERVICE PROCEDURE

Engine Control Module Self Test Drive Cycle Information

Engine control module self test monitoring drive cycle information for each DTC:

P1646

Drive Cycle A

P0604

Drive Cycle A

P0605

Drive Cycle C

P0606

Drive Cycle C

NOTE: To provide compatibility with later 2005 model year DTCs, from disc 14 of the Range Rover TestBook/T4 diagnostic software, the DTCs in the following table will be displayed with new DTC numbers and descriptions. See Fig 1 .

If a standard scan tool is used then the original codes detailed above will be displayed.

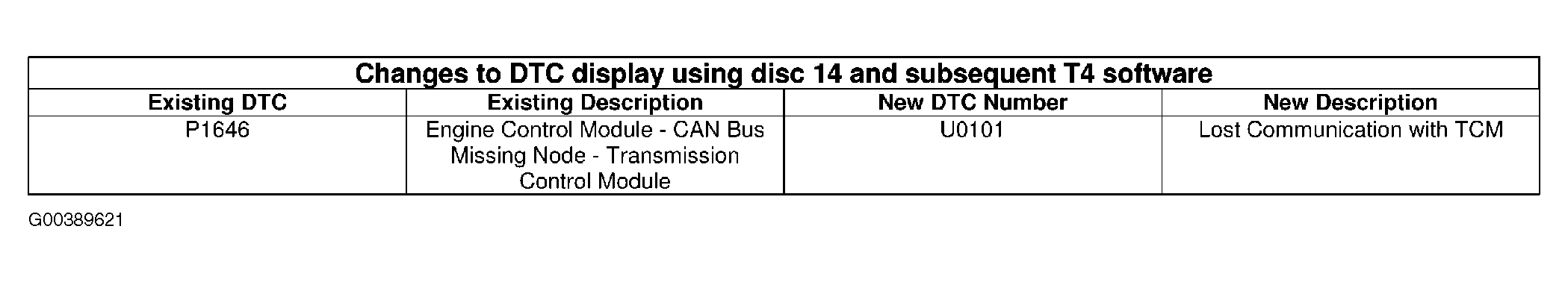

Fig 1: Change To Engine Control Module Self Test DTC Display Using Disc 14 & Subsequent TestBook/T4 Software

Courtesy of LAND ROVER NORTH AMERICA, INC.
