2022 Kia Sorento Plug-In Hybrid SXFACTORY OEM SERVICE PROCEDURE
Repair Procedures: Cleaning
- Remove the Electronic Throttle Control (ETC) module.
(Refer to ETC (Electronic Throttle Control) System - "REMOVAL ")

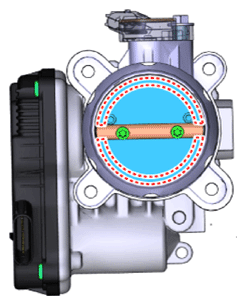

NOTE: Cleaning the ETC after removing it. - Clean the pollutant in the throttle body using a soft cloth moistened with cleaning fluid.NOTE:
- Take care not to getting foreign matter into ETC.
- Do not spray cleaning fluid to ETC directly and use a lint free cloth moistened by cleaning fluid.
- Be careful as fingers or cloth may get caught in the valve.
- Install the ETC module.
(Refer to Electronic Throttle Control System - "INSTALLATION ")

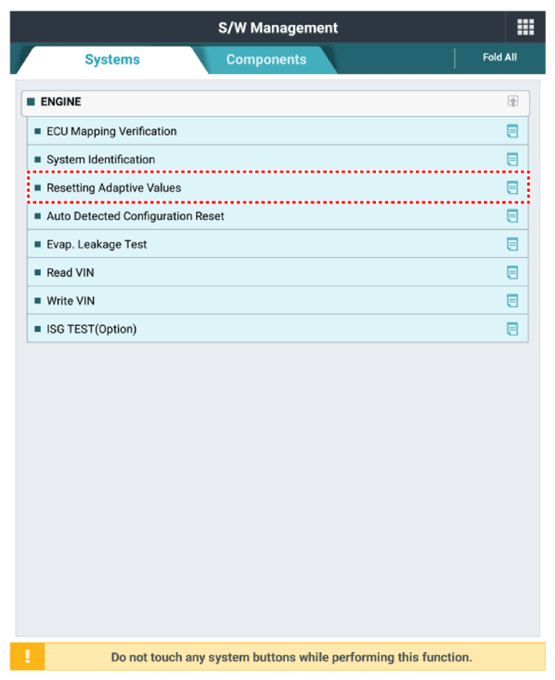

- Reset the Engine Control Module (ECM) adaptive values after replacing the ETC module.
- Perform the ETC learning procedure.
(Refer to ETC - "ADJUSTMENT ")
