2022 Kia Sorento Plug-In Hybrid SXFACTORY OEM SERVICE PROCEDURE
Repair Procedures: Removal
- Disconnect the negative (-) battery terminal.
(Refer to Engine Electrical System - "AUXILIARY BATTERY ")

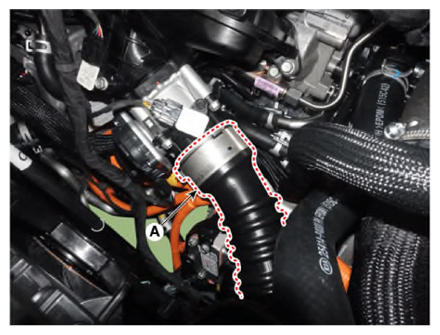

- Remove the air intake hose (A).
- Disconnect the Boost Pressure Sensor (BPS) connector (A).

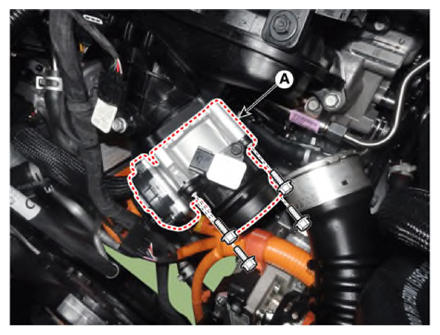

- Remove the Electronic Throttle Control (ETC) module (A) after removing the mounting bolts.
Tightening torque:
9.8-11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
