2020 Kia Cadenza TechnologyFACTORY OEM SERVICE PROCEDURE

Repair Procedures: Inspection

Information

CAUTION: Inspect the following items by referring to inspection flow chart.
(Refer to Position Switch - "TROUBLESHOOTING ")
  1. Check the diagnostic trouble codes (DTC) using KDS.
  2. Check that "N" range setting matches.

    (Refer to Position Switch - "INSTALLATION ")

  3. Check the free play for shift cable.

    (Refer to Shift Cable - "INSTALLATION ")

  4. Check the condition of connector.
    1. Inspect connector thoroughly for looseness, poor connection, bending, corrosion, contamination, deformation, or damage.
    2. Turn ignition key "ON" and engine "OFF" and measure the voltage between the power supplied to Position Switch circuit and ground.

      Specification  : Approx. 12 V

  5. Inspect the ground of rear combination lamp circuit.
  6. Inspect the wiring connection of junction box power terminal and fuse lamp.
    1. Check for separation of fuse holder and check that the holder is tightly holding the fuse.

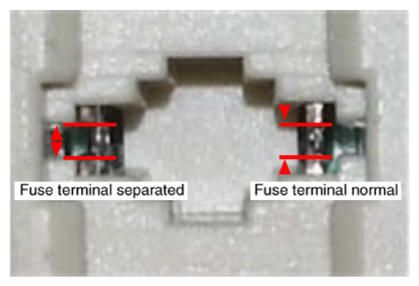

      G13403688Courtesy of KIA MOTORS AMERICA, INC.
    2. Attach tester fuse to check that it is connected properly.

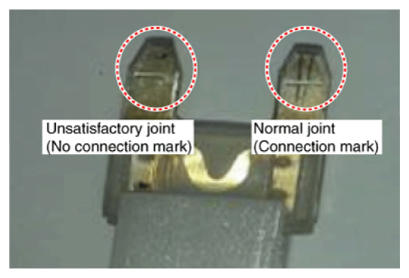

      G13403689Courtesy of KIA MOTORS AMERICA, INC.
    3. Check if fuse is damaged.
  7. Check the Position Switch circuit signal.
    1. Turn Ignition "ON", & engine "OFF".
    2. Measure the voltages between each signal terminal and chassis ground in each range (P, R, N, D).

      Specification  : 4.5 - 5.5 V
