2020 Kia Cadenza TechnologyFACTORY OEM SERVICE PROCEDURE

Repair Procedures: Installation

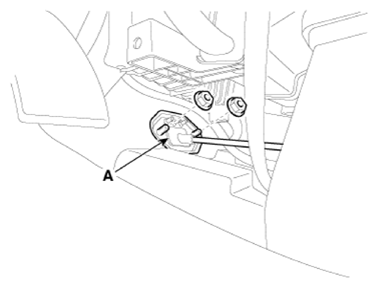

  1. Install the shift cable retainer (A).

    Tightening torque:

    9.8-14.7 Nm (1.0-1.5 kgf.m, 7.2 - 10.8 lb.ft)

    G13403673Courtesy of KIA MOTORS AMERICA, INC.
  2. Install the SRS Control Module (SRSCM).

    (Refer to Restraint - "SRS CONTROL MODULE ")

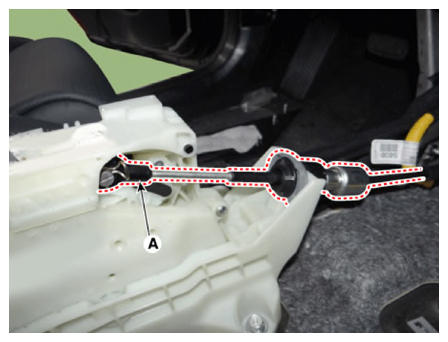

  3. Insert the snap pin after installing the shift cable (A).
    G13403674Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:

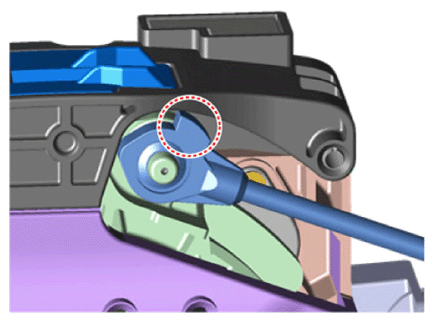

    • Install the shift cable after checking the direction of projection to prevent incorrect assembly.
      G13403675Courtesy of KIA MOTORS AMERICA, INC.

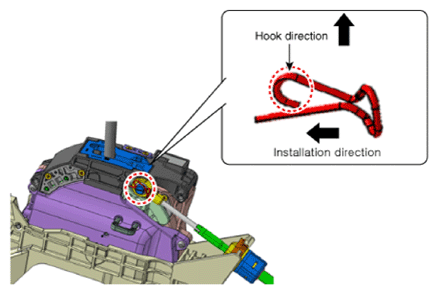

    • Mind the installation direction of snap pin and install the snap pin with the hook facing upward.
      G13403676Courtesy of KIA MOTORS AMERICA, INC.
  4. Install the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ")

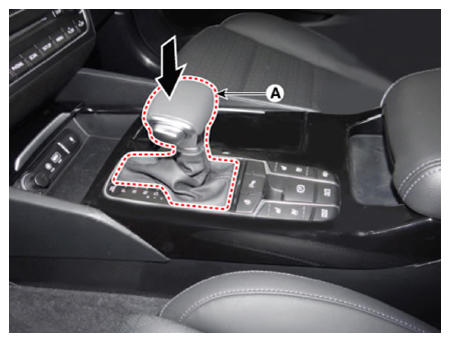

  5. Install the knob (A) by pressing it in the direction of arrow after installing the boots to the console upper cover
    G13403677Courtesy of KIA MOTORS AMERICA, INC.
  6. Check that the shift lever and manual control lever are placed in the "N" position.

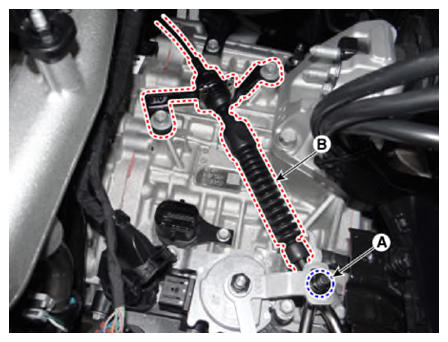

  7. Install the shift cable (B) to bracket and then lightly tighten the nut (A).
    G13403678Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: The existing shift cable clip (A) must be replaced with new one. (Do not reuse it.)
    G13403679Courtesy of KIA MOTORS AMERICA, INC.

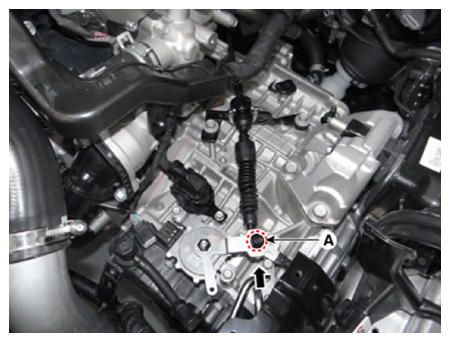

  8. Tighten the nut (A) to the specified torque after removing free play by pushing the shift cable in the direction of the arrow.

    Tightening torque:

    9.8 - 14.7 N.m (1.0 - 1.5 kgf.m, 7.2 - 10.8 lb.ft)

    G13403680Courtesy of KIA MOTORS AMERICA, INC.
  9. Install the battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

  10. Install the air cleaner assembly and air duct.

    (Refer to Engine Mechanical System - "AIR CLEANER ")
