2014 Kia Soul Base, Standard Trans

Component Inspection

2014 Kia Soul Base, Standard TransSECTION Component Inspection

Turn Ignition "OFF" and then "ON".
Monitor "Diagnostic Trouble Codes (DTC)" with GDS.
Clear all DTCs in the system with GDS.
Re-check DTC in the system with GDS.
Are any DTCs stored in the system?
YES
- Carefully re-do this troubleshooting guide steps.
- If problem still occurs, replace HECU and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
CAUTION:
In case of replacing HECU, perform following procedures.
1. "ASP Calibration" for steering angle sensor offset correction.

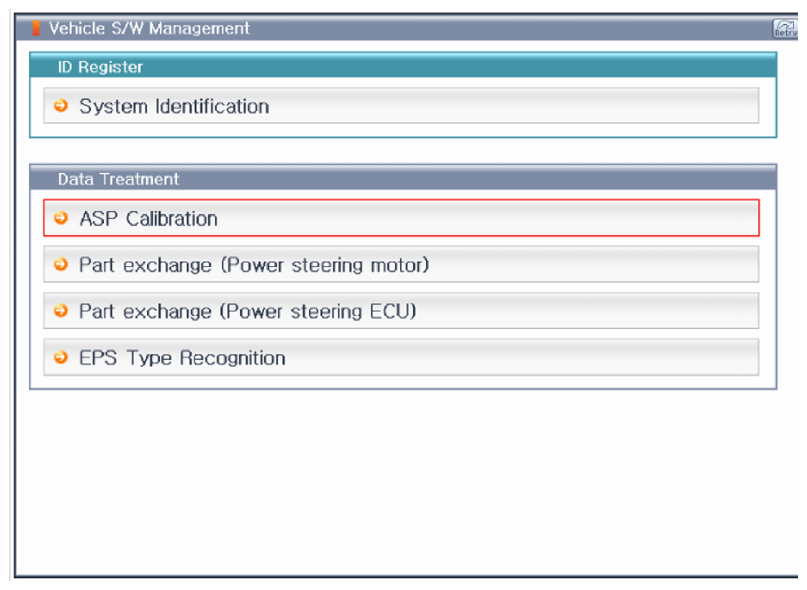

  Fig 1: ASP Calibration Select Screen
  Courtesy of KIA MOTORS AMERICA, INC.
