2011 Kia Optima L4-2.0L Turbo
Fuel Pressure Sensor: Service and Repair
2011 Kia Optima L4-2.0L TurboSECTION Service and Repair
Inspection
1. Connect the GDS on the Data Link Connector (DLC).

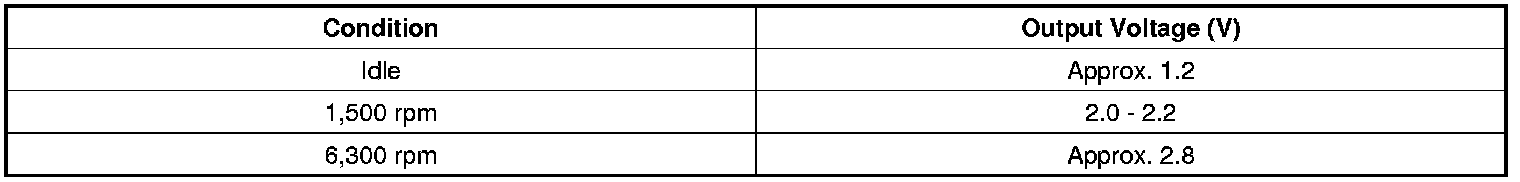

2. Measure the output voltage of the RPS at idle and various engine speed.
Removal
1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
2. Release the residual pressure in fuel line .
CAUTION:
When removing the fuel pump relay, a Diagnostic Trouble Code (DTC) may occur. Delete the code with the GDS after completion of "Release Residual Pressure in Fuel Line" work.
3. Remove the intake manifold .
4. Disconnect the rail pressure sensor connector (A), and then remove the sensor (B) from the delivery pipe.
Installation
CAUTION:
- Install the component with the specified torques.
- Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.
1. Installation is reverse of removal.
Rail Pressure Sensor Installation:18.0 - 22.0 N.m (1.8 - 2.2 kgf.m, 13.3 - 16.2 lb-ft)
