2009 Kia Sorento 4WD V6-3.3L
Intake Manifold specifications
2009 Kia Sorento 4WD V6-3.3LSECTION Intake Manifold specifications
Intake Manifold
Tightening torque
1st 3.9 - 5.9 Nm (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)
2nd
Bolt 26.5 - 31.4 Nm (2.7 - 3.2 kgf.m, 19.5 - 23.1 lb-ft)
Nut 18.6 - 23.5 Nm (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb-ft)
3rd Repeat 2nd step twice or move.
NOTE:
Be careful of the installation direction.

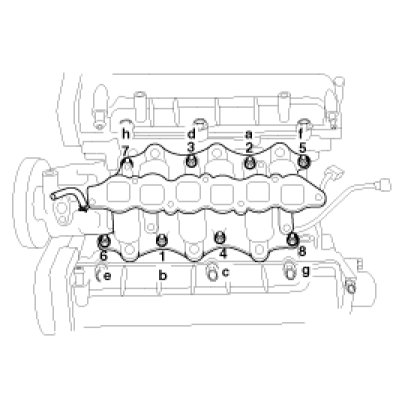

a - h : 1st step order
1 - 8 : 2nd step order
